Approvals
Housing:
316 Stainless Steel
Contacts:
2NC + 2NO (with door open) or 3NC + 1NO (with door open)
Contact Rating:
2Amp - 24VDC
Break Contact Force Min:
12cNm (torque on shaft)
Indication:
None
Ingress Protection Rating:
IP66

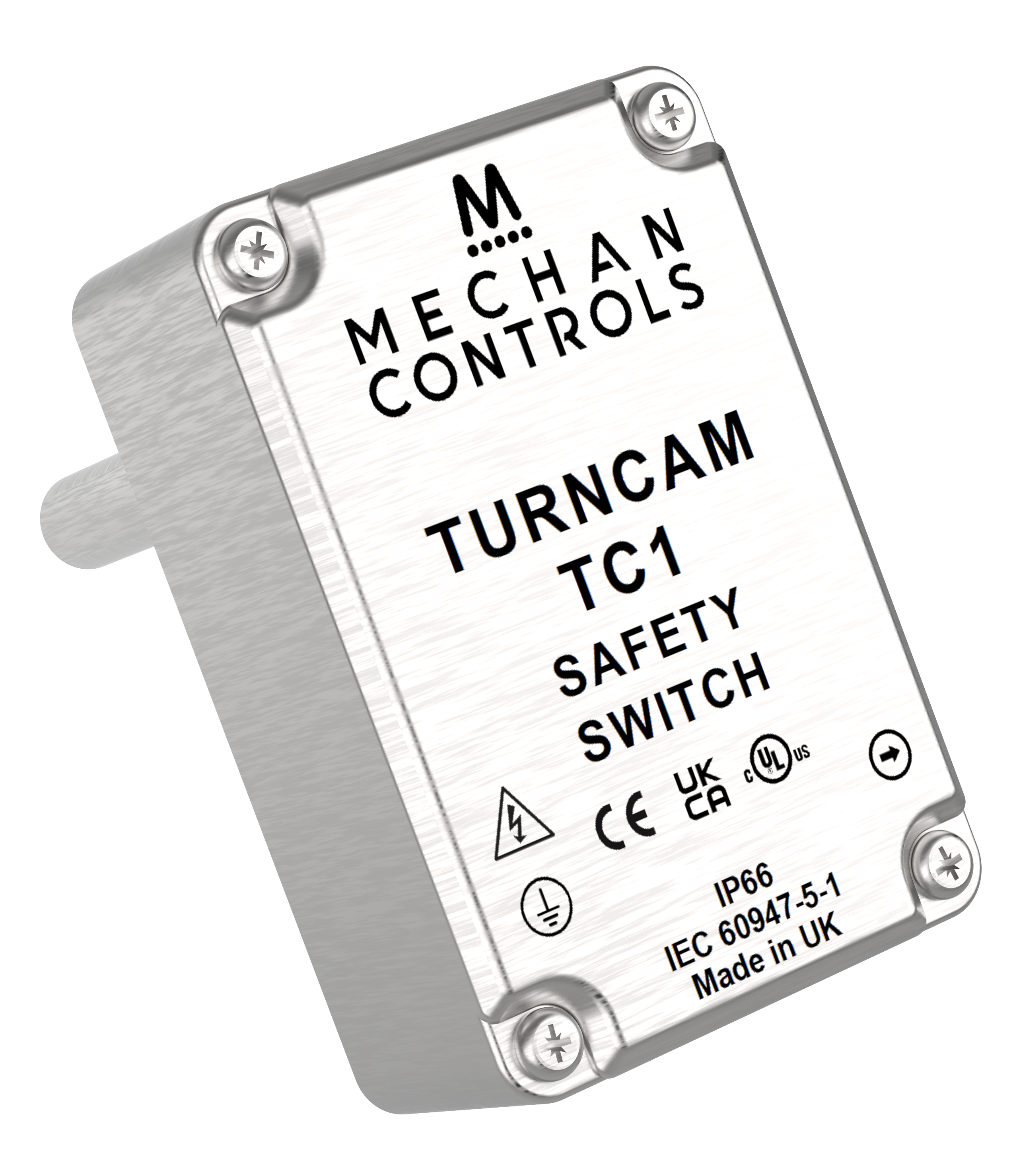

TC1 is standalone, mechanical hinge safety device. With 2NC or 3NC safety outputs and 2NO or 1NO auxiliary contacts, capable of switching 2A at 24Vdc. The TC1 is mechanically operated hinge safety device, maintaining PL-e.

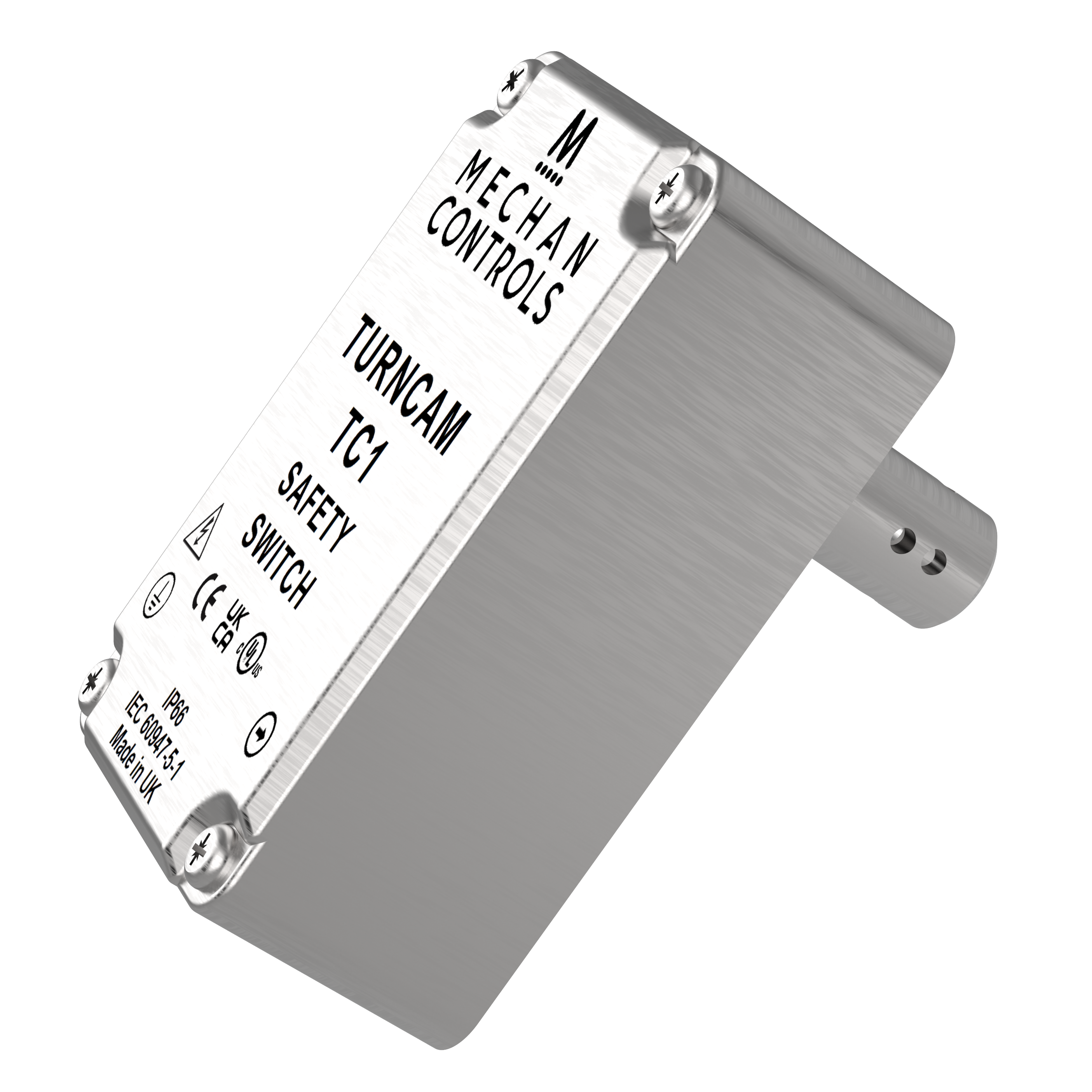

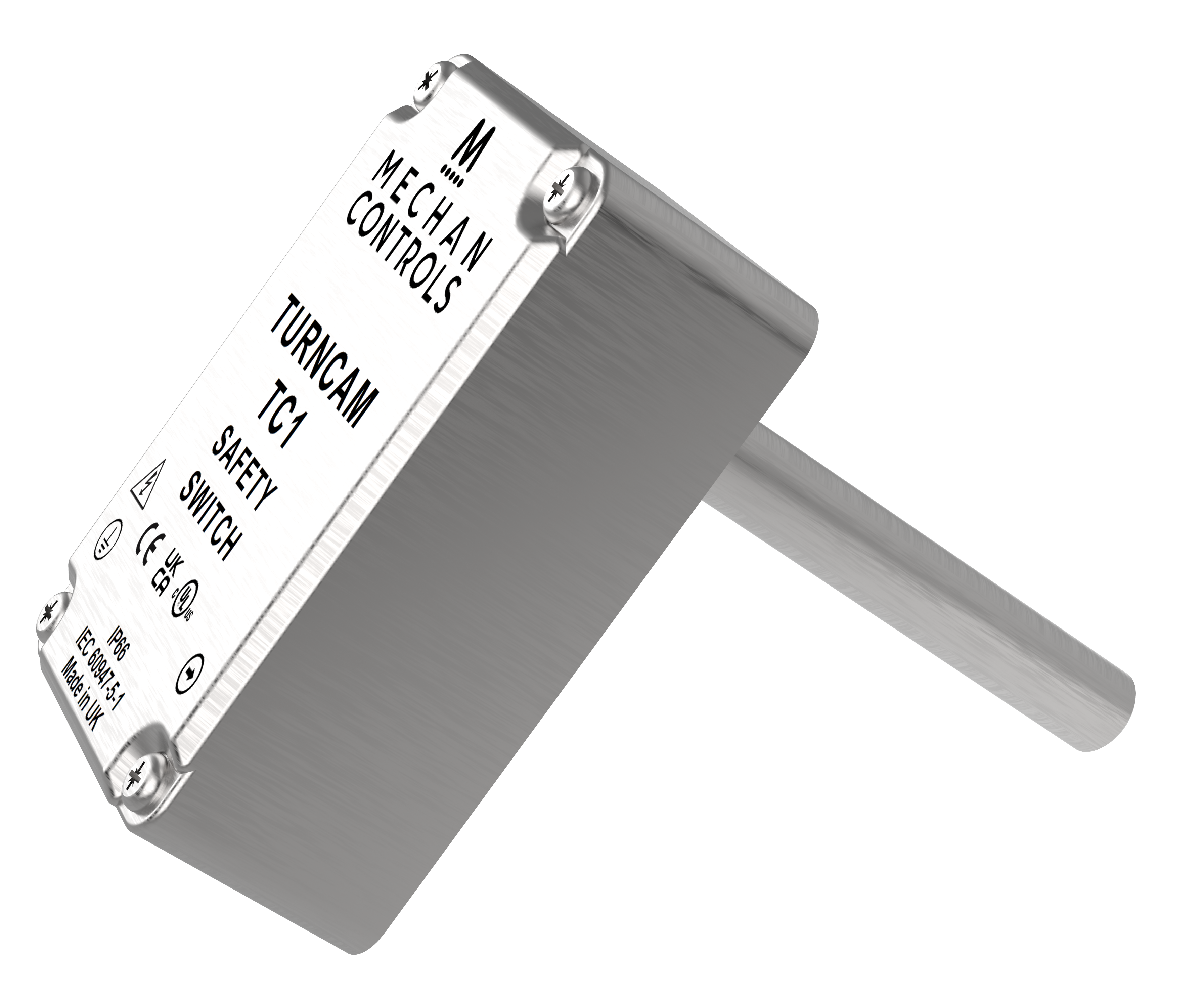

The TC1 has an option of 2 different shaft lengths, 30mm or 85mm. The TC1 mechanical hinge safety switch does not come wired and would need to be installed by an engineer on site.
| Technical Specifications | |
|---|---|
| Safety Contacts | 2NC or 3NC |
| Rated Insulation Voltage (Ui) | 500V |
| Thermal Current | 10A |
| Construction | 316 Stainless Steel |
| IP Rating | IP66 |
| Mounting | M4 Torx security screws (tightening torque 1.0NM) |
| Auxilliary Output | 2NO or 1NO |
| Coding | Mechanical |

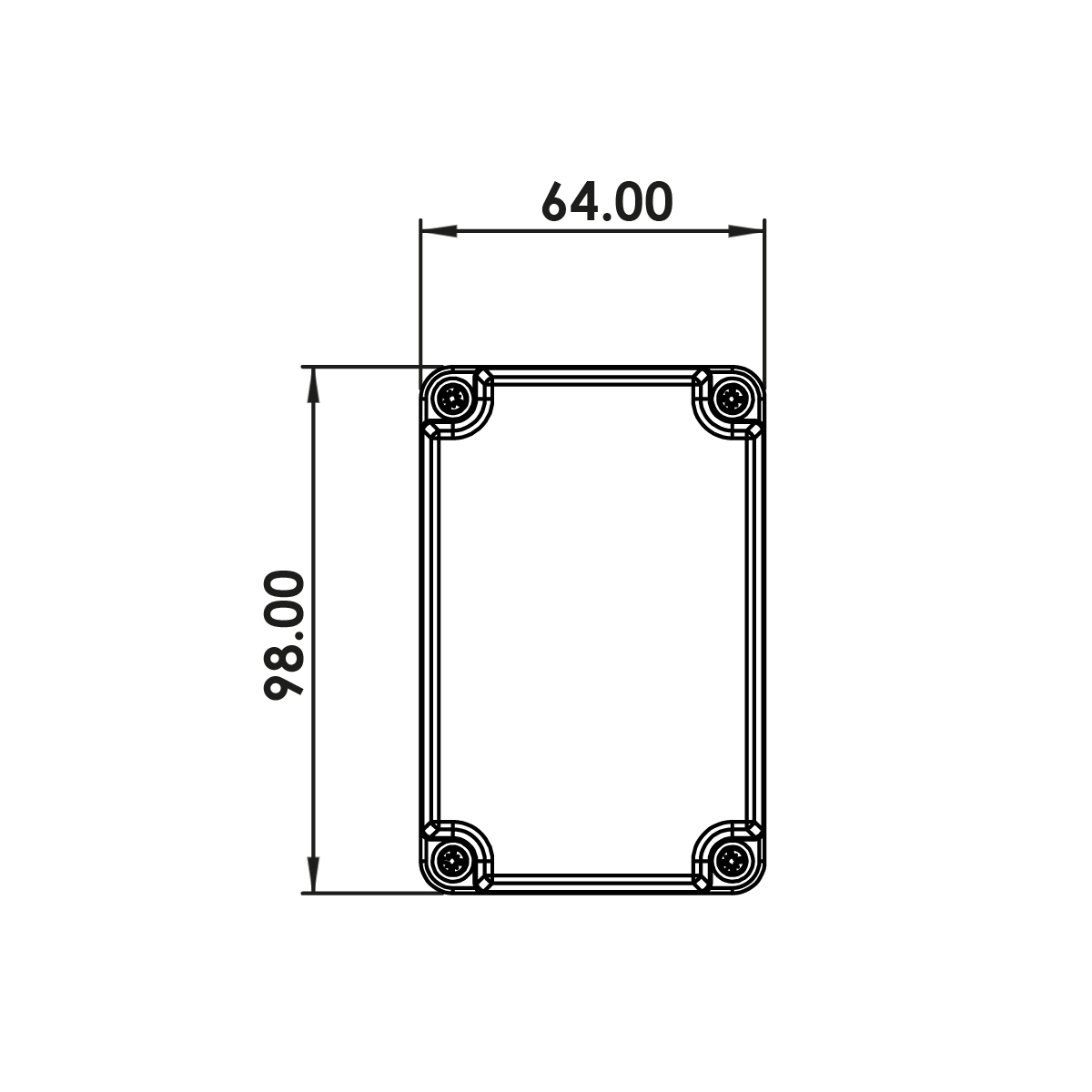

| Dimensions of Switch (mm) | 98 x 64 x 37.5 |
| Environmental Specifications | |
| Operating Temperature | -20°C to +80°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e |
| SIL CL in accordance with EN IEC 62061 | SIL3 |
| PFHd in accordance with EN IEC 62061 | 4.3 x 10-8 |
| PFH | 6.52 x 10-8 |
| B10d | 2,000,000 |
| MTTFd | High > 100 Years (Based on usage rate of 360 Days/ |
| TM | > 20 Years |
| DC | 99% |
| SFF | 98% |
| File Title | File Name | Download File |
|---|---|---|
| XXX XXX Iss1 MECHAN TC1 TC2 Installation Guide | XXX-XXX-Iss1-MECHAN-TC1-TC2-Installation-Guide.pdf | PDF (1011 KB) |
