PLU2

PLU2 PLU2

Approvals

CE Approved

• Versions available for FM1 Control Modules
• Compact, safe, simple to install
• Quick fit pneumatic connections
• Fail safe totally sealed cylinder
• Uniquely coded sensors available
• Stainless steel construction

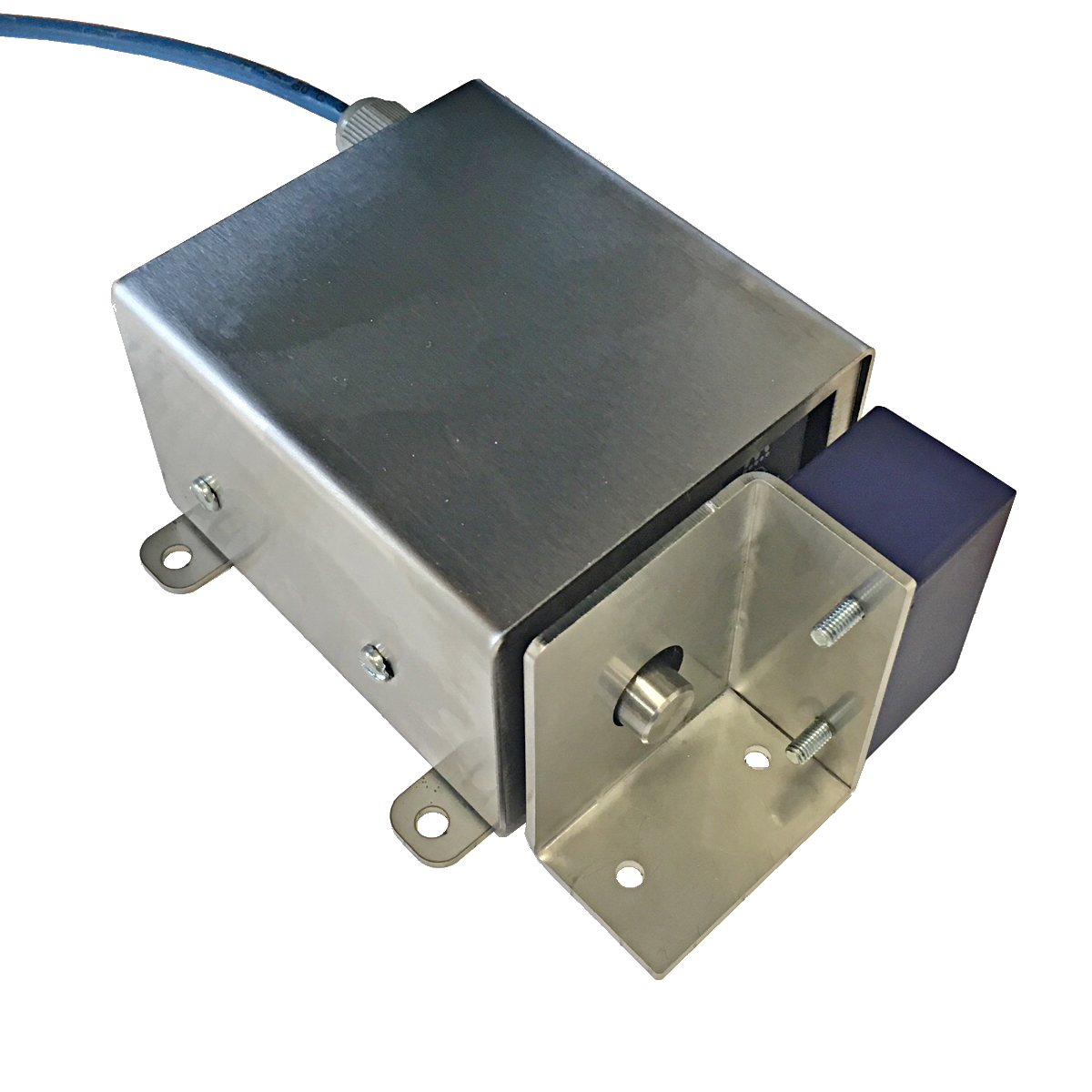

The Mechan PLU Air operated Locking unit is a complete, fail-safe system designed to lock a Gate or Access Lid securely until it is safe to enter. This can be determined either by a Motion Stop detector or a simple timer. It incorporates both a Bolt Position Sensor Switch and a Mechan Guard switch to sense when the locking bracket is in position. The bolt must be in the out position and the locking bracket in place before the machine can be re-started.

Product Code Description Part No. Quote options Added to Basket
318.007 PLU-2 F'SERIES STAINLESS STEEL PNEUMATIC LOCKING UNIT PLU-2 F'SERIES STAINLESS STEEL PNEUMATIC LOCKING U
Qty: - +

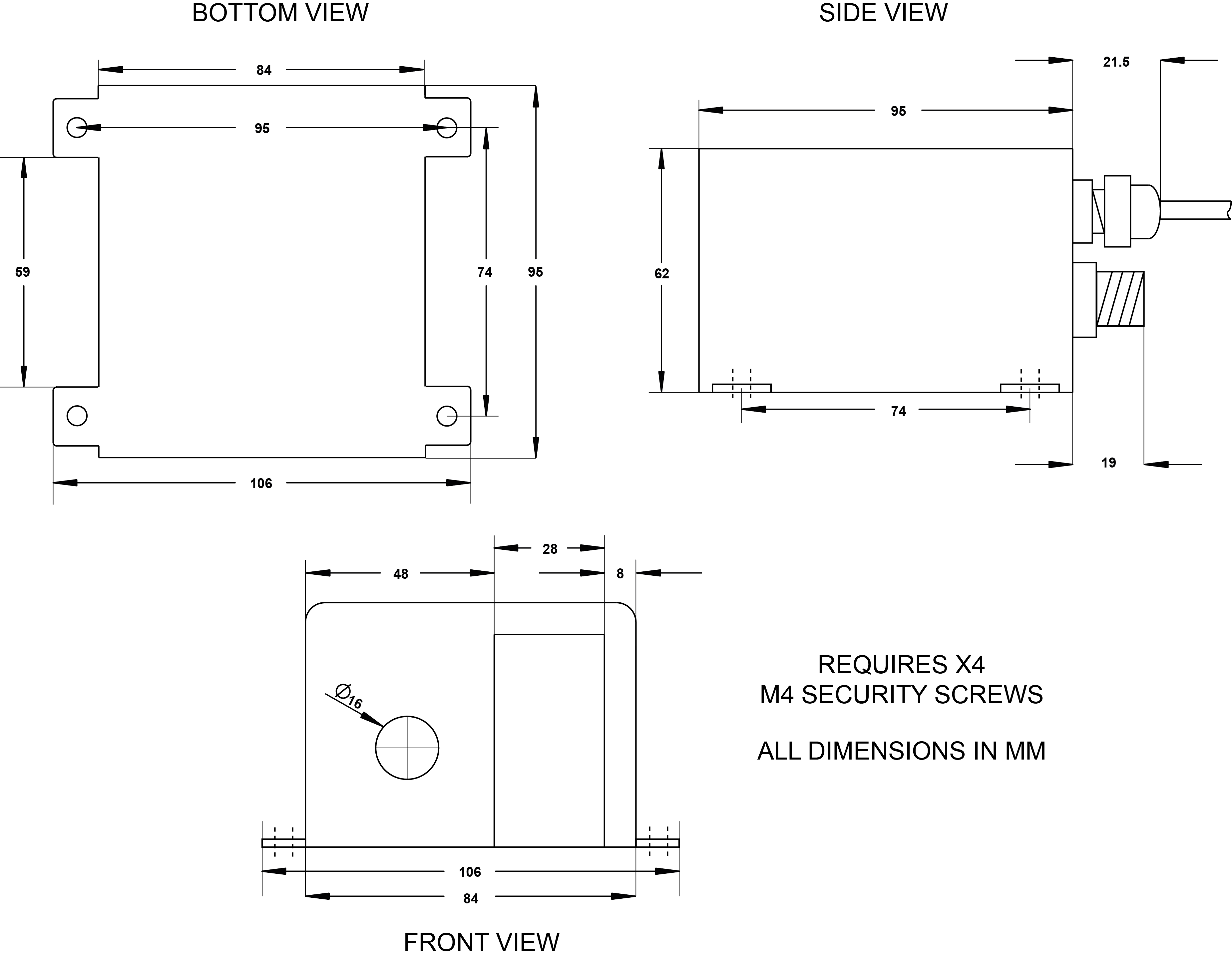

Dimensions (mm)

Dimensions in millimetres

Technical Specifications
Reset Options At control unit
Construction Alluminium
Indication At control unit
IP Rating IP67
Weight na
Mounting na
Supply Voltage Options na
Power Consumption na
Safety Output At control unit
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Control Unit (mm) See install guide
Dimensions of Switch (mm) na
Dimensions of Actuator (mm) na
Environmental Specifications
Operating Temperature na
Storage Temperature na
Safety Related Data
PL in accordance with EN ISO 13849-1
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
File Title File Name Download File
F SERIES PLU2 Installtion Guidev2 F-SERIES-PLU2-Installtion-Guidev2.pdf PDF (562 KB)
327 400 ID Iss5 Mechan F Series Install Guide 327-400-ID-Iss5-Mechan-F-Series-Install-Guide.pdf PDF (949 KB)
