Approvals
Housing:
316 Stainless Steel, Resin Encapsulated
Contacts:

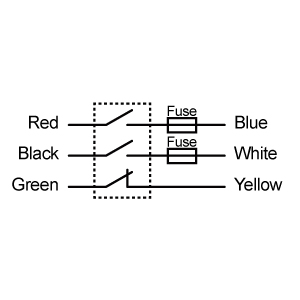

2NO + 1NC (with door open)
Contact Rating:
300mA 24VDC
Connection Type:
Pre-Wired Cable, 6 cores
Operating Distance:
7mm ON / 17mm OFF
Ingress Protection Rating:
IP67 and IP69K

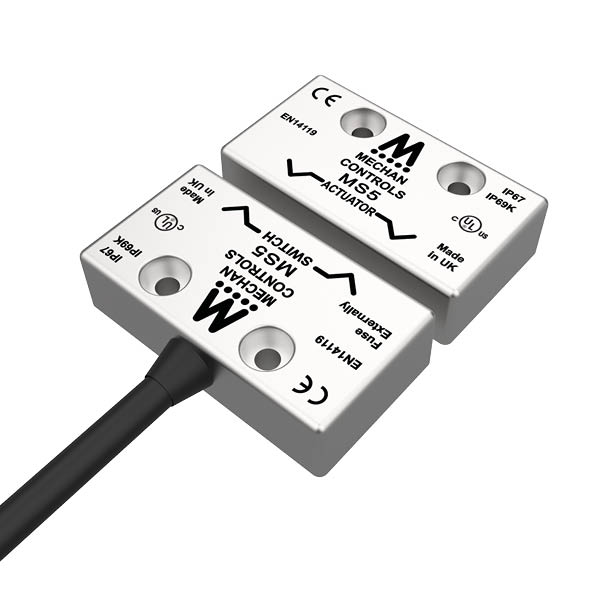

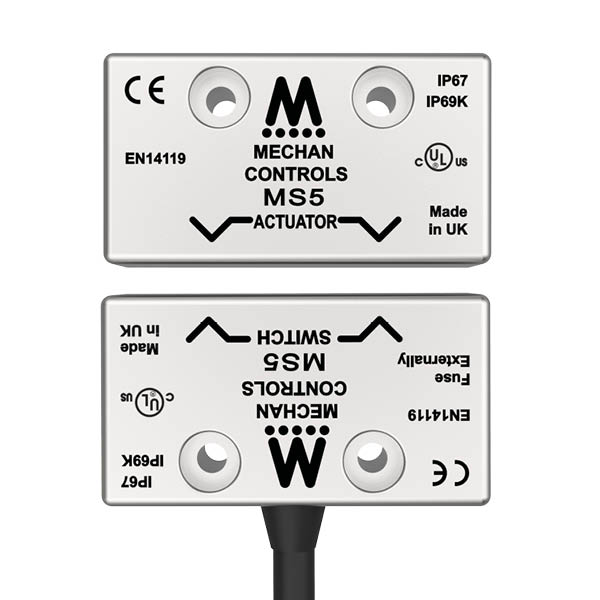

The MAGNASAFE MS5 are compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into red ABS or 316 grade stainless steel housings, the MS5 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 7 – 17 mm switching distance helping to ensure a long and trouble free operating life.
Download Step Drawing MS5-SS-Switch-Pre-Wired.STEP Download Step Drawing MS5-SS-Actuator.STEP
| Technical Specifications | |
|---|---|
| Construction | 316 Grade Stainless Steel |
| IP Rating | IP67 / IP69K |
| Weight | na |
| Mounting | 4 x M4 Security Screws |
| Safety Output | Up to 2 x NO |
| Safety Output Rating | 24Vdc / 300mA |
| Auxilliary Output | Up to 1 x NC |
| Auxilliary Output Rating | 15W / 10VA |
| Cable / Connector | Pre-wired |
| Cable Length | 3, 6 or 10 metre |
| Coding | Magnet & Reed |

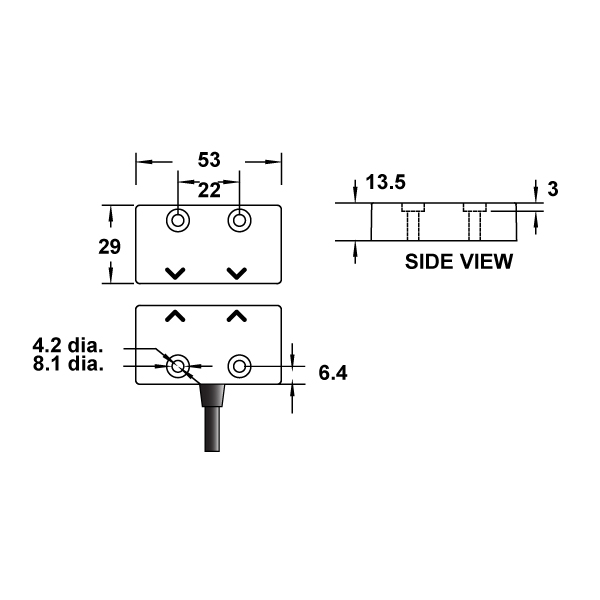

| Dimensions of Switch (mm) | 53 x 29 x 13.5 |
| Dimensions of Actuator (mm) | 53 x 29 x 13.5 |
| Environmental Specifications | |
| Operating Temperature | -25°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | na |
| SIL CL in accordance with EN IEC 62061 | na |
| PFHd in accordance with EN IEC 62061 | 4.3 x 10-8 See Note 1 |
| PFH | 6.52 x 10-8 |
| B10d | 2,000,000 |
| MTTFd | High > 100 Years ( Based on usage rate of 360 Days |
| TM | > 20 Years |
| DC | 99% |
| SFF | 98% |
| Notes | |
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years | |
| File Title | File Name | Download File |
|---|---|---|
| 350 401 Iss16 MECHAN MS5 MS7 Installation Guide | 350-401-Iss16-MECHAN-MS5-MS7-Installation-Guide.pdf | PDF (1.2 MB) |
| MS5-Stainless-Steel-Switch-Pre-Wired-3D | MS5-SS-Switch-Pre-Wired.STEP | STEP (172 KB) |
| MS5-Stainless-Steel-Actuator-3D | MS5-SS-Actuator.STEP | STEP (105 KB) |
