RSSG

RSSG RSSG

Approvals

CE Approved

Housing:
    Orange ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    3A - 24Vdc & 230Vac
Coding:
    Uniquely Coded, RFID
Indication:
    Bi-Colour LED (Open/Close Indication)
Ingress Protection Rating:
    IP67 and IP69K

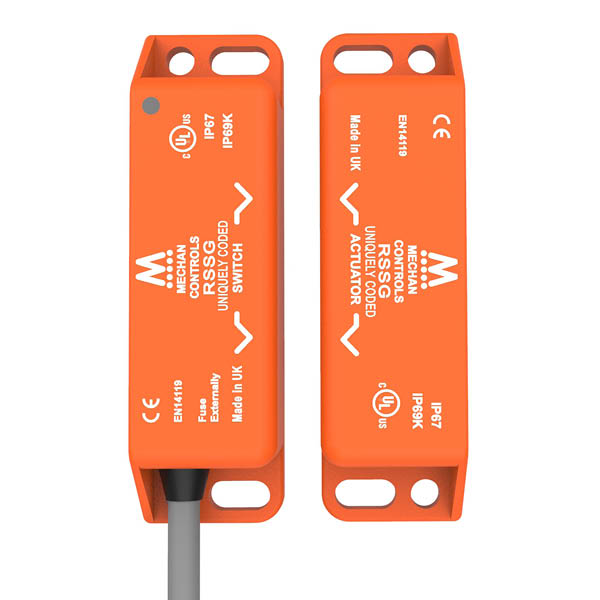

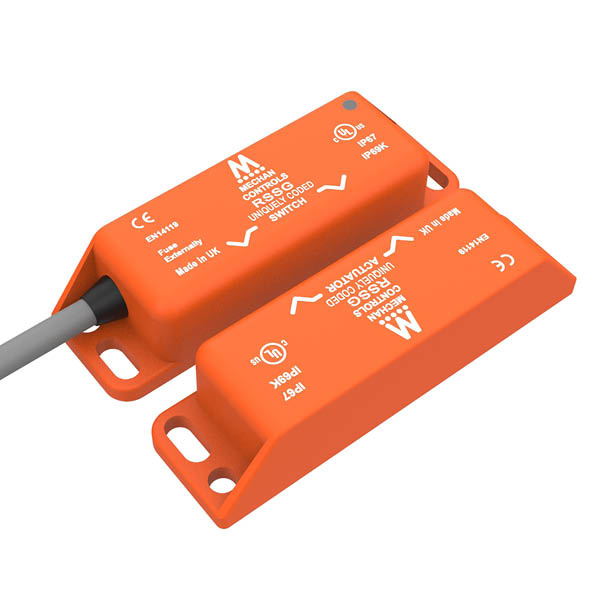

RSSG are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc & 230Vac. With tamper proof RFID switching, the RSSG is suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSR safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

Product Code Description Part No. Quote options Added to Basket
364.020 RSSG / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) RSSG-21-DC-03M
Qty: - +

364.021 RSSG / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator) RSSG-21-DC-06M
Qty: - +

364.022 RSSG / Plastic / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator) RSSG-21-DC-10M
Qty: - +

364.035 RSSG-ACT ACTUATOR ONLY RSSG-ACT
Qty: - +

Technical Specifications
Construction ORANGE ABS, RESIN FILLED
Indication DUAL COLOUR LED
IP Rating IP67 / IP69K
Mounting 4 x M4 Security Screws
Supply Voltage Options 24Vdc
Power Consumption 2VA / 2W
Safety Output 2 X NO
Safety Output Rating 24Vdc/230Vac / 3 Amps
Auxilliary Output 1 X NC
Auxilliary Output Rating 24Vdc/230Vac / 3 Amps
Cable / Connector PRE-WIRED
Cable Length 3, 6 or 10 metre
Coding RFID, Uniquely coded

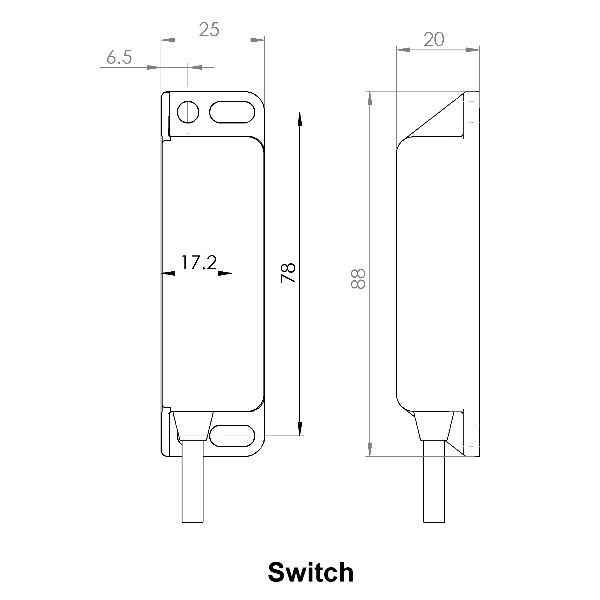

Dimensions of Switch (mm) 88 X 25 X 20

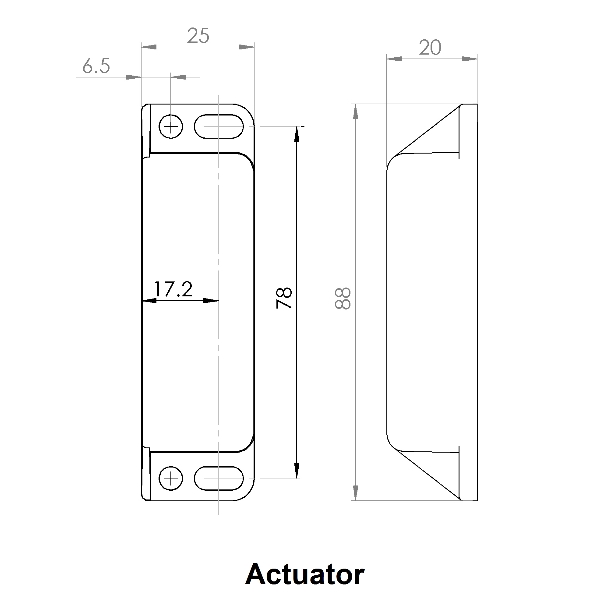

Dimensions of Actuator (mm) 88 X 25 X 20
Environmental Specifications
Operating Temperature -25°C to +60°C
Storage Temperature -10°C to +60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 E
SIL CL in accordance with EN IEC 62061 3
PFHd in accordance with EN IEC 62061 4.3 x 10-8
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1) Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
