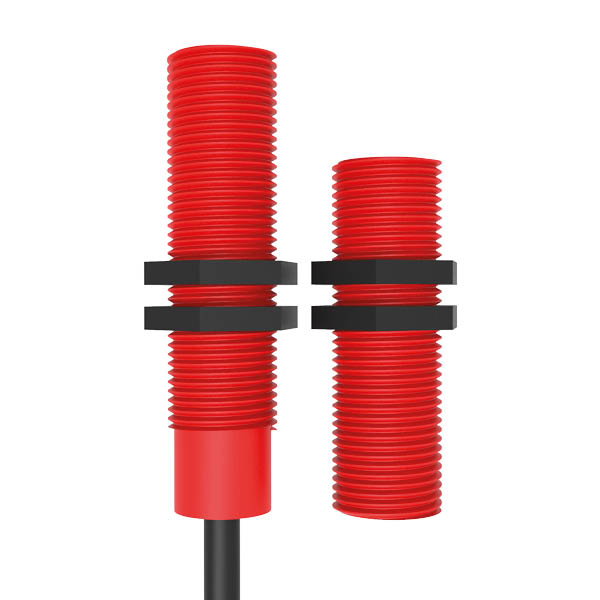

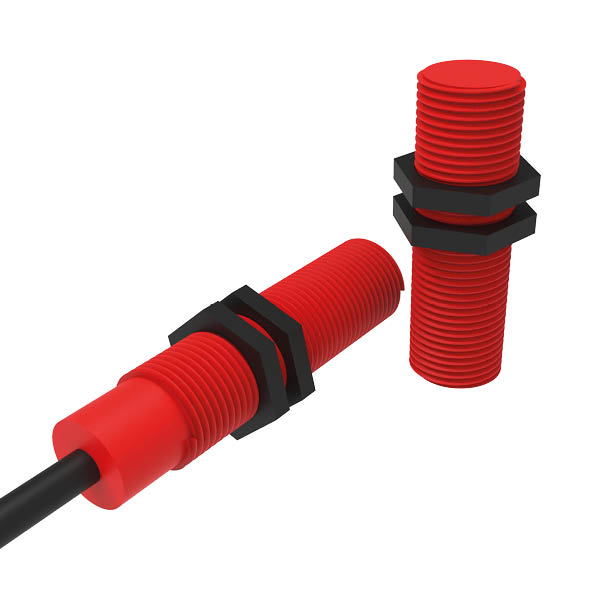

MS2

MS2 MS2 MS2

Approvals

CE Approved

Housing:
    M18, Red ABS, Resin Encapsulated
Contacts:
    1NO, 1NO + 1NC (with door open)
Contact Rating:
    2Amp 230VAC / 1Amp 24VDC
Connection Type:
    Pre-Wired Cable, 2-Core / 4-Core
Operating Distance:
    10mm ON / 30mm OFF
Ingress Protection Rating:
    IP67 and IP69K

The Magnasafe MS2 are ‘barrel’ mounted, magnetically operated safety switches. Encapsulated into M18 dia. housings, these safety switches are easy to install, and adjust and are tolerant to misalignment. With an 10mm switching distance helping to ensure a long and trouble free operating life.



Product Code Description Part No. Quote options Added to Basket
351.000 MS2 / Plastic / 1NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS2-10-AC-03M
Qty: - +

351.001 MS2 / Plastic / 1NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS2-11-AC-03M
Qty: - +

351.010 MS2 / Plastic / 1NO / 230AC / 03-Metre Pre-Wired (Switch Only) MS2-10-AC-03M(SO)
Qty: - +

351.011 MS2 / Plastic / 1NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch Only) MS2-11-AC-03M(SO)
Qty: - +

351.050 MS2 / Plastic / 1NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS2-10-DC-03M
Qty: - +

351.051 MS2 / Plastic / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS2-11-DC-03M
Qty: - +

351.052 MS2 / Plastic / 1NO + 1NC / DC / 20-Metre Pre-Wired (Switch and Actuator) MS2-11-DC-20M
Qty: - +

351.060 MS2 / Plastic / 1NO / DC / 03-Metre Pre-Wired (Switch Only) MS2-10-DC-03M(SO)
Qty: - +

351.061 MS2 / Plastic / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch Only) MS2-11-DC-03M(SO)
Qty: - +

351.062 MS2 / Plastic / 1NO + 1NC / DC / 01-Metre Armoured Cable (Switch and Actuator) MS2-11-DC-SY-01M
Qty: - +

351.099 MS2-ACT (ACTUATOR ONLY) MS2-ACT
Qty: - +

Get Quote

Download Step Drawing ms2-plastic-switch-pre-wired.STEP Download Step Drawing MS2-plastic-Actuator.STEP

Dimensions (mm)

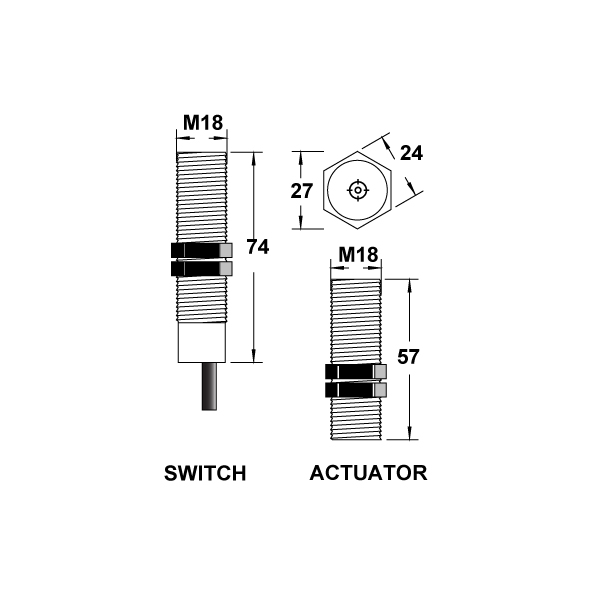

Dimensions in millimetres

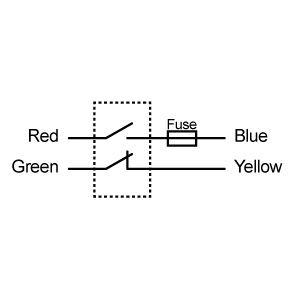

1 Normally Open Contact + 1 Normally Closed Contact

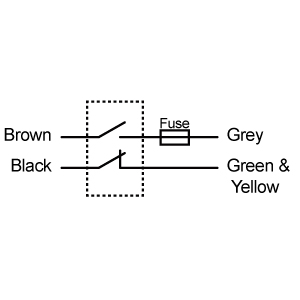

1 Normally Open Contact + 1 Normally Closed Contact, SY Armoured Cable

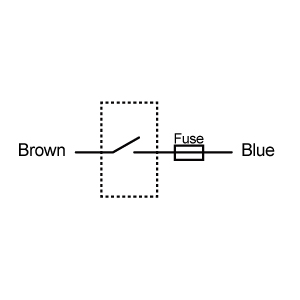

1 Normally Open Contact

Technical Specifications
Safety Output 1 x NO
Safety Output Rating 230Vac/2Amps or 30Vdc / 1Amp Inductive/Resistive
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3 meter, longer made to order
Coding None
Input Magnetic
Reset Options At Control Unit
Dimensions of Switch (mm) M18 x 74mm
Dimensions of Actuator (mm) M18 x 57mm
Weight na
IP Rating IP67
Construction Red ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 na
PFH na
B10d na
MTTFd na
TM na
DC na
SFF na
File Title File Name Download File
MECHAN MAGNASAFE MS2&3 INSTALLATION GUIDE 351-400v8-MECHAN-MAGNASAFE-MS2-3-INSTALLATION-GUIDE.pdf PDF (1.2 MB)
ms2-plastic-switch-pre-wired-3d ms2-plastic-switch-pre-wired.STEP STEP (2.8 MB)
ms2-plastic-actuator-3d MS2-plastic-Actuator.STEP STEP (2.6 MB)
MECHAN MAGNASAFE MS2-SY SPECIAL INSTALLATION GUIDE 351-062V3-MECHAN-MS2sy-V3.pdf PDF (59 KB)
