Housing:
316 Stainless Steel, Resin Encapsulated

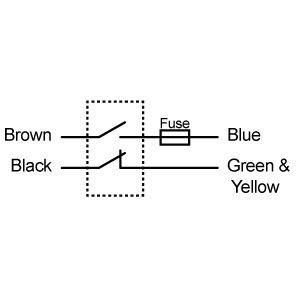

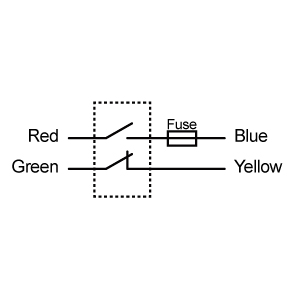

Contacts:
1NO, 1NO + 1NC (with door open)
Contact Rating:
2Amp 110VAC / 1Amp 24VDC
Connection Type:
Pre-Wired Cable, 2-Core / 4-Core
Operating Distance:
7mm ON / 12mm OFF
Ingress Protection Rating:
IP67 and IP69K

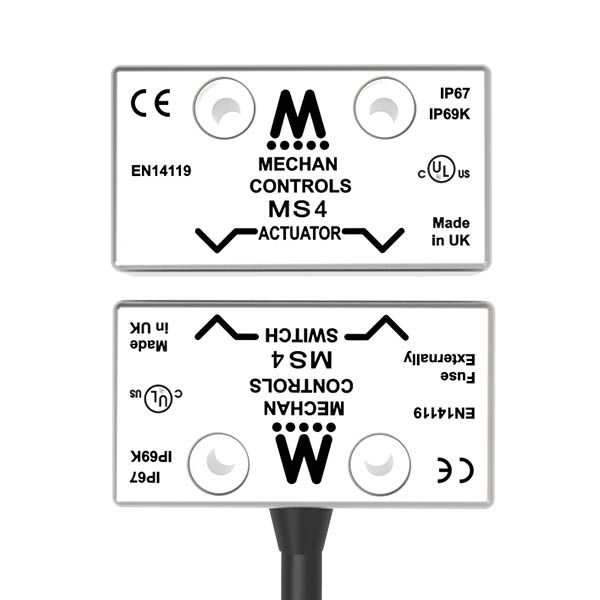

The Magnasafe MS4 are magnetically operated safety switches, suitable for use in machine guarding applications. Encapsulated into a 316 grade Stainless Steel housing, the MS4 safety switches have an 7mm switching distance, are easy to install and tolerant to misalignment, ensuring a long and trouble free operating life.
Technical Specifications | |
---|---|
Construction | 316 Grade Stainless Steel |
Indication | 1 x Volt Free Contact |
IP Rating | IP67 / IP69K |
Weight | na |
Mounting | 4 x M4 Security Screws |
Safety Output | 1 x NO |
Safety Output Rating | 110Vac/2Amps or 30Vdc / 1Amp Inductive/Resistive |
Auxilliary Output | Up to 1 x NC |
Auxilliary Output Rating | 15W / 10VA |
Cable / Connector | Pre-wired |
Cable Length | 3, 6 or 10 metre |
Coding | Magnet & Reed |

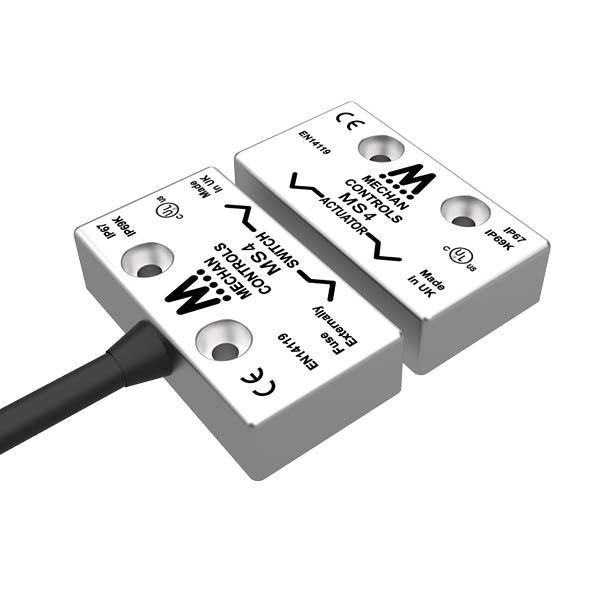

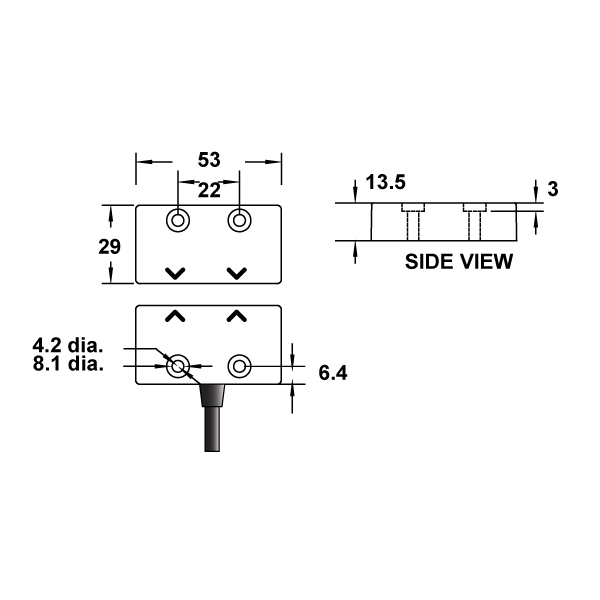

Dimensions of Switch (mm) | 53 x 29 x 13.5 |
Dimensions of Actuator (mm) | 53 x 29 x 13.5 |
Environmental Specifications | |
Operating Temperature | -10°C to 55°C |
Storage Temperature | -20°C to 60°C |
Safety Related Data | |
PL in accordance with EN ISO 13849-1 | na |
SIL CL in accordance with EN IEC 62061 | na |
PFHd in accordance with EN IEC 62061 | na |
PFH | na |
B10d | na |
MTTFd | na |
TM | na |
DC | na |
SFF | na |
Notes | |
High Temp version = 95C |
