HE1SSLQD

HE1SSLQD HE1SSLQD

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Connection:
    M12, 8-Pole
Coding:
    Magnetically Coded
Indication:
    Bi-Colour LED (Open/Close Indication)
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

The HE safety switches have up to 2 x N/O + 1 N/C bidirectional solid state outputs along with a built in LED(s) for indication. When installed on a machine guard, power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open.

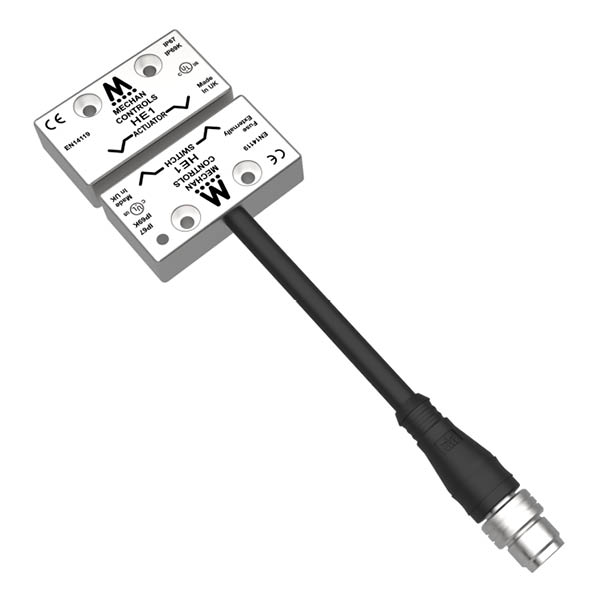

The HE safety switches are fully encapsulated into a 316 Grade Stainless Steel  housing. The LQD version is supplied with a M12 leaded connector and a 5 or 10 metre cable. With a 7mm switching distance the actuator can approach the switch from most angles. When the switch is closed the targets on the printed face of the switch must be aligned.

Product Code Description Part No. Quote options Added to Basket
341.008 HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable HE1-SS-21-DC-LQD
Qty: - +

341.009 HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable HE1-SS-21-DC-LQD-5M
Qty: - +

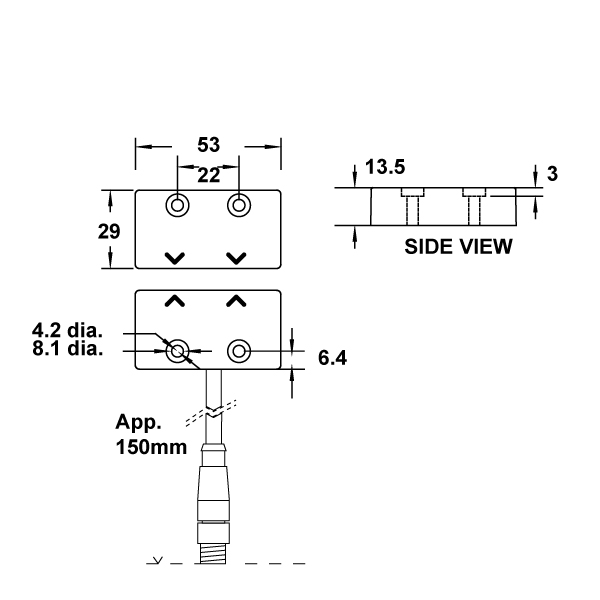

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Connection Drawing 2

Technical Specifications
Reset Options At Control Unit
Construction 316 Grade Stainless Steel
Indication Dual colour LED Red/Green
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Supply Voltage Options 24VDC (+/- 15%)
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 400mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 24Vdc / 400mA
Cable / Connector Leaded Quick Disconnect
Cable Length 5 or 10 metre
Coding Solid State, Single Code
Input Coded Magnetic
Dimensions of Switch (mm) 29 x 53 x 13.5mm
Dimensions of Actuator (mm) 29 x 53 x 13.5mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 3.62 x 10 -9
PFH 4.43 x 10 -9
B10d 2 x 10 -6
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 96.50%
SFF 98.20%
File Title File Name Download File
340 400 Iss 11 Mechan HE Series installation guide 340-400-Iss-11-Mechan-HE-Series-installation-guide.pdf PDF (3.7 MB)
