MS6SSQD

MS6SSQD MS6SSQD MS6SSQD

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    1NO, 1NO + 1NC, 2NO, 2NO + 1NC (with door open)
Contact Rating:
    2Amp 230VAC / 1Amp 24VDC
Connection Type:
    M12, 4-Pole / 6-Pole
Operating Distance:
    10mm ON / 28mm OFF
Ingress Protection Rating:
    IP67 and IP69K (pre-wired only)

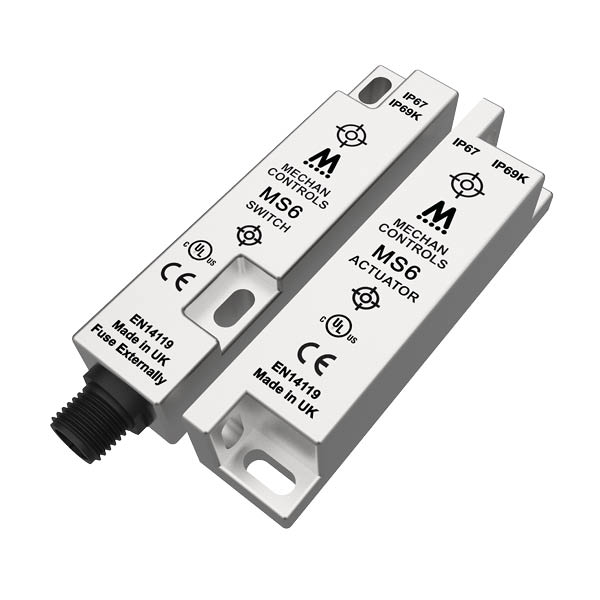

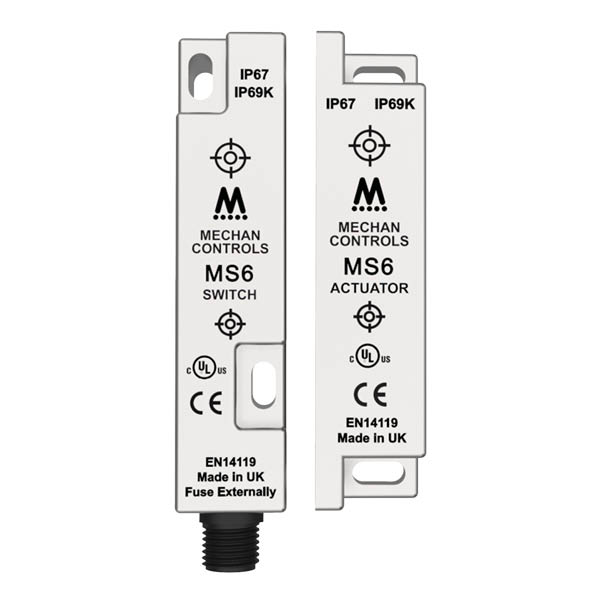

The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 10 – 28 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
356.054 MS6 / Stainless Steel / 1NO / 230AC / 4-Pole M12 (Switch and Actuator) - no cable MS6-SS-10-AC-QD(NC)
Qty: - +

356.055 MS6 / Stainless Steel / 1NO / 230AC / 4-Pole M12 (Switch and Actuator) - 5m Cable MS6-SS-10-AC-QD-05M
Qty: - +

356.064 MS6 / Stainless Steel / 1NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS6-SS-11-DC-QD(NC)
Qty: - +

356.065 MS6 / Stainless Steel / 1NO + 1NC / DC / 4-Pole M12 (Switch and Actuator) - 5m Cable MS6-SS-11-DC-QD-05M
Qty: - +

356.069 MS6 / Stainless Steel / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS6-SS-21-DC-QD(NC)
Qty: - +

356.075 MS6 / Stainless Steel / 2NO / DC / 4-Pole M12 (Switch and Actuator) - No Cable MS6-SS-20-DC-QD(NC)
Qty: - +

356.076 MS6 / Stainless Steel / 2NO / DC / 4-Pole M12 (Switch and Actuator) - 5m Cable MS6-SS-20-DC-QD-05M
Qty: - +

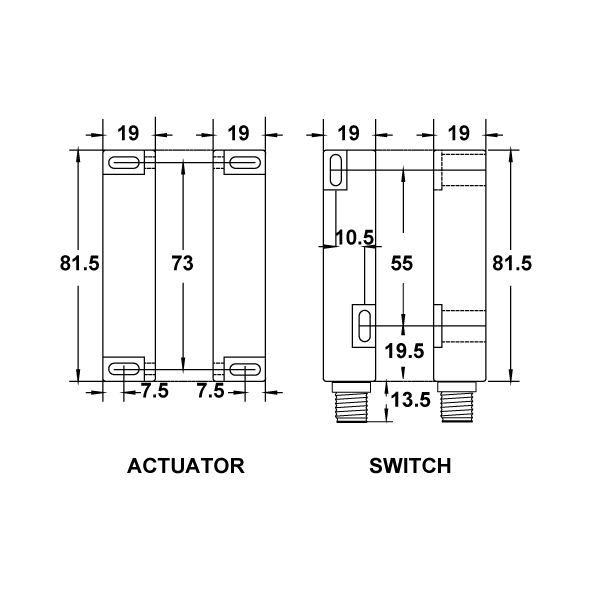

DIMENSIONS (MM)

Dimensions in millimetres

2 Normally Open Contacts + 1 Normally Closed

2 Normally Open Contacts

1 Normally Open Contacts + 1 Normally Closed

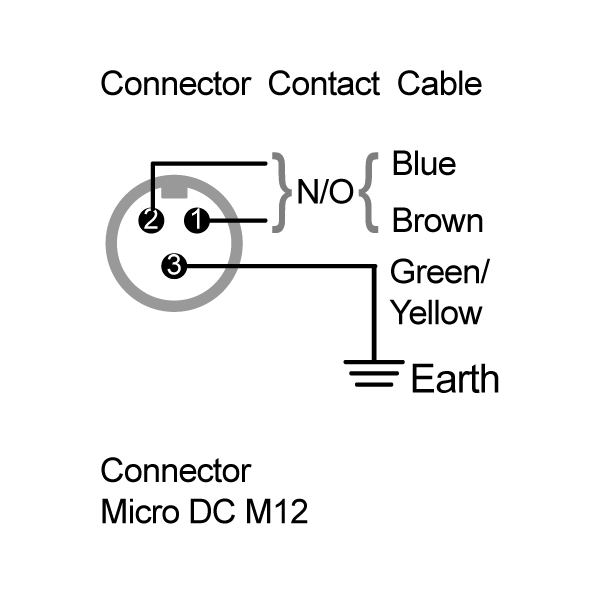

1 Normally Open Contact

Technical Specifications
Construction 316 Grade Stainless Steel
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Quick disconnect
Cable Length 5 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 81.5 x 19 x 19mm
Dimensions of Actuator (mm) 81.5 x 19 x 19mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
