SSRLQD

SSRLQD SSRLQD

Approvals

CE Approved

Housing:
    Blue ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Connection:
    M12, 8-Pole
Coding:
    Single Code, RFID
Indication:
    Guard Status Indication
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

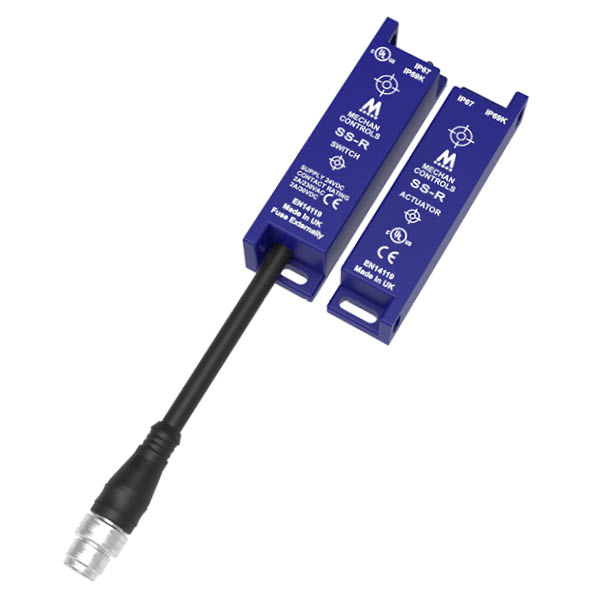

The SS-R are standalone RFID, non-contact, safety switches. With 2NO + 1NC contacts, capable of switching 2A at 30Vdc or 230Vac.

With tamper resistant, RFID switching, the SS-R are suitable for use with most safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SS-R safety switches are available with M12 quick disconnect and 5 or 10 metre cables.

Product Code Description Part No. Quote options Added to Basket
362.007 SS-R / Plastic / 2NO +1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable SS-R-21-LQD
Qty: - +

362.008 SS-R / Plastic / 2NO +1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable SS-R-21-LQD-05M
Qty: - +

362.009 SS-R / Plastic / 2NO +1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 10M Cable SS-R-21-LQD-10M
Qty: - +

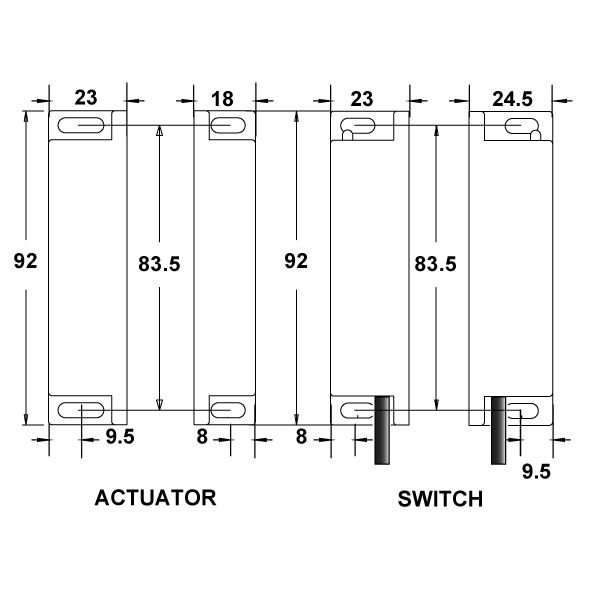

DIMENSIONS (MM)

Dimensions in millimetres

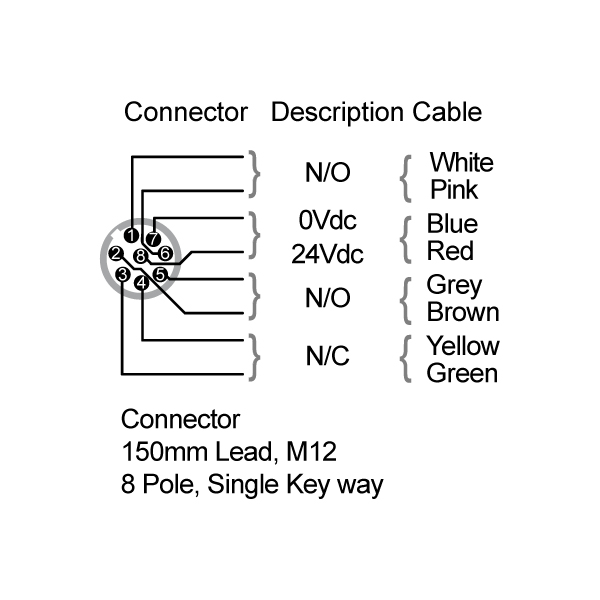

Leaded Quick Disconnect : 2 Normally Open Contacts + 1 Normally Closed

Technical Specifications
Construction Blue ABS, Resin Filled
Indication DUAL COLOUR LED
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Supply Voltage Options 24VDC
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2A or 30Vdc / 2A
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 230Vac / 2A or 30Vdc / 2A
Cable / Connector Pre-wired
Cable Length 5 or 10 metre
Coding RFID, Generic code
Dimensions of Switch (mm) 92 x 24.5 x 23mm
Dimensions of Actuator (mm) 92 x 23 x 18mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
360 400 Iss14 MECHAN S Type Installation Guide 360-400-Iss14-MECHAN-S-Type-Installation-Guide.pdf PDF (1.7 MB)
