Approvals

CE Approved

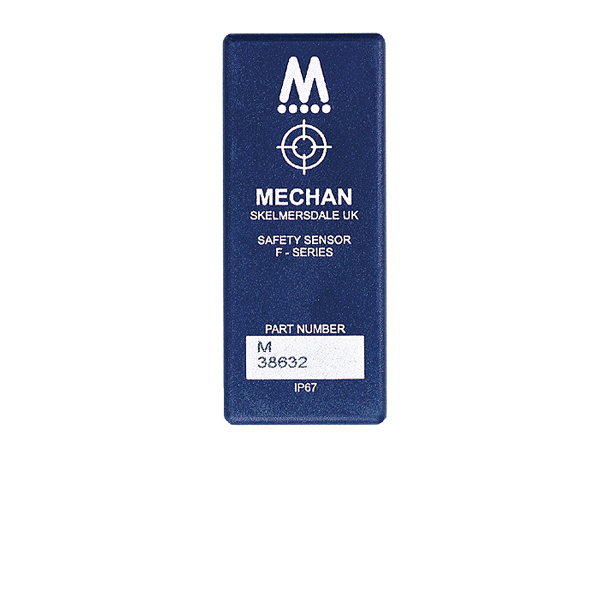

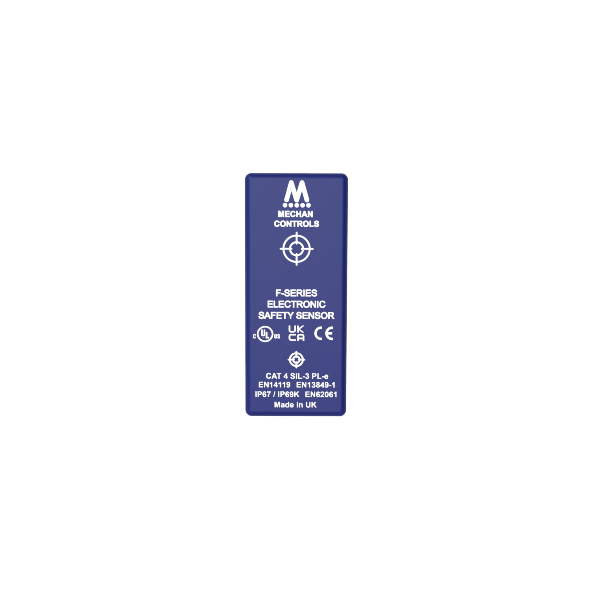

F-Series Actuator.

This can be paired with the FMA, FMG or FMT.

Product Code Description Part No. Quote options Added to Basket
308.099 M - F'SERIES ACTUATOR M
Qty: - +

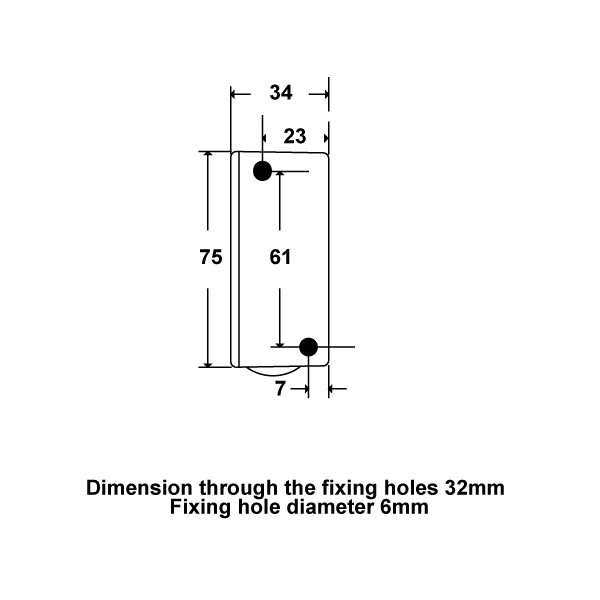

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Construction Blue ABS, Resin Filled
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M6 Bolts
Power Consumption na
Coding RFID, Generic code
Dimensions of Actuator (mm) 75 x 34 x 32mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
