CE Approved

Housing:
    Blue ABS, Resin Encapsulated
Contacts:
    1NO or 2NO (with door open)
Connection:
    M12, 8-Pole
Coding:
    Single Code, RFID
Indication:
    Guard Status Indication
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

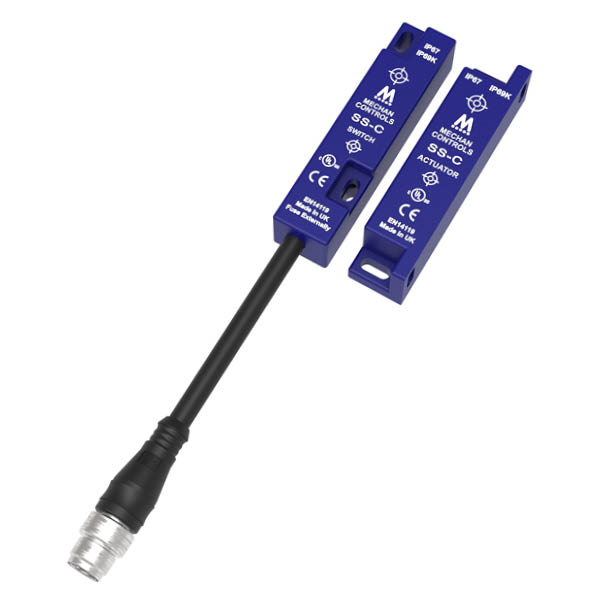

SS-C safety switches are standalone RFID, non-contact, safety switches. With 1NO or 2NO contacts, capable of switching 500mA at 30Vdc or 110Vac.

With tamper resistant, RFID switching, the SS-C are suitable for use with most modern, low inrush current, safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SS-C safety switches are available pre-wired (150mm) with an M12 quick disconnect connector.

Product Code Description Part No. Quote options Added to Basket
363.003 SS-C / Plastic / 1NO / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable SS-C-10-QD
Qty: - +

363.004 SS-C / Plastic / 2NO / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable SS-C-20-LQD
Qty: - +

Get Quote

DIMENSIONS (MM)

Dimensions in millimetres

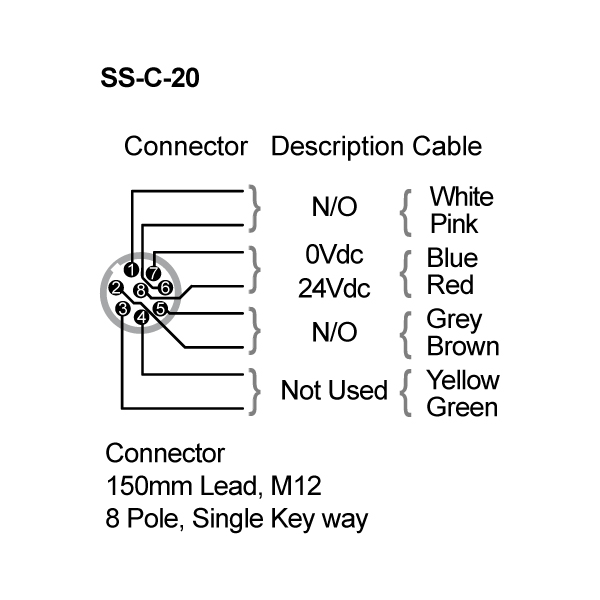

Leaded Quick Disconnect : 2 Normally Open Contacts

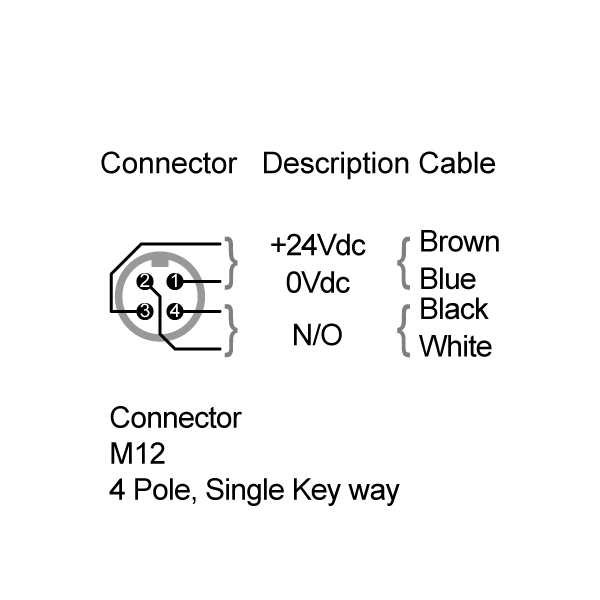

Quick Disconnect : 1 Normally Open Contact

Technical Specifications
Supply Voltage Options 24VDC
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 110Vac / 500mA or 24Vdc / 500mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 110Vac / 500mA or 24Vdc / 500mA
Cable / Connector LEADED QUICK DISCONNECT
Cable Length 5 or 10 metre
Coding Electronic, Generic code
Indication DUAL COLOUR LED
Dimensions of Switch (mm) 87 x 24 x 19mm
Dimensions of Actuator (mm) 87 x 24 x 17mm
Weight na
IP Rating IP67
Construction Blue ABS, Resin Filled
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

Based on dual channel wiring according to CAT 3. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
