ESM | EM-Series

ESM | EM-Series ESM | EM-Series

Approvals

CE Approved

Enclosure:

Housing IP30, Terminals IP20
Number of Safety Inputs:

2 Normally Closed
Number of Safety Outputs:

On EM1 Control Unit
Reset Options:

On EM1 Control Unit
Expandability:

Up to 20 Dual Channel Devices
Safety Rating:

CAT4, SIL3, PL-e (When Connected to EM1)

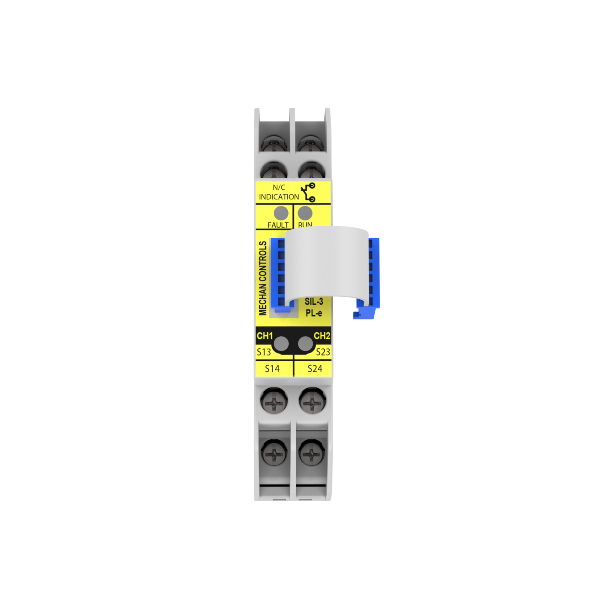

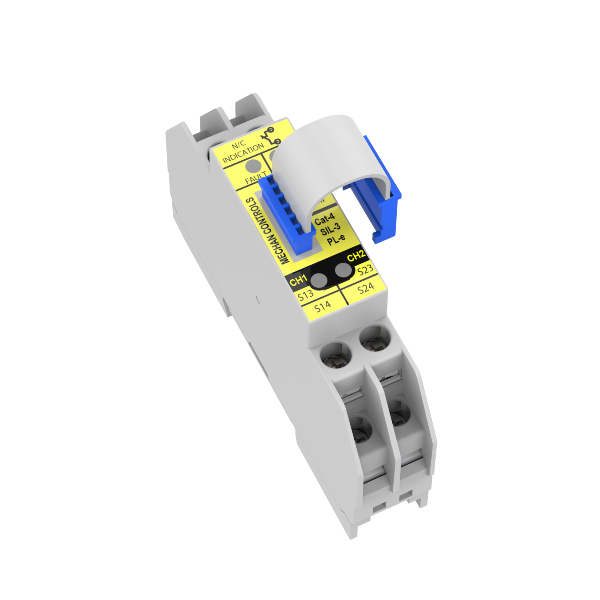

The ESM module gives the option to add additional emergency stop button or 2NC safety device to the EM1 control unit and maintain CAT4 SIL3 PLe performance. The ESM connects via a built in 6-way strap to the adjacent EM1/ESM module. The ESM accepts 2 closed contact inputs from either an emergency stop button or mechanical safety switch (locking or non-locking) Indicator LED’s on the ESM provide diagnostic information along with volt free contact status indicator.

Product Code Description Part No. Quote options Added to Basket
330.003 ESM EMERGENCY STOP MODULE ESM
Qty: - +

Get Quote
Technical Specifications
Supply Voltage Options FROM EM1
Power Consumption NA
Cable / Connector SCREW TERMINALS
Input 2 NORMALLY CLOSED
Indication LED's for Fault, Run, Input 1 and 2
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Weight NA
IP Rating Housing IP30, Terminals IP20
Construction Grey PC-GF
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

AS PART OF AN EM1 SYSTEM
