CS2

CS2 CS2 CS2

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in cable strain relief

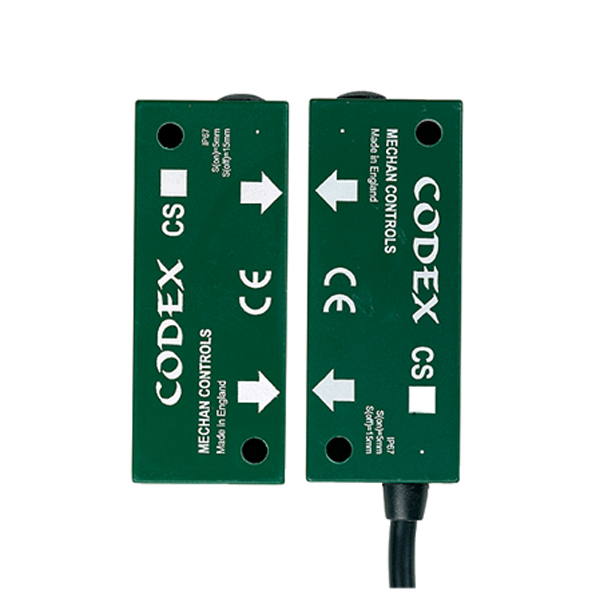

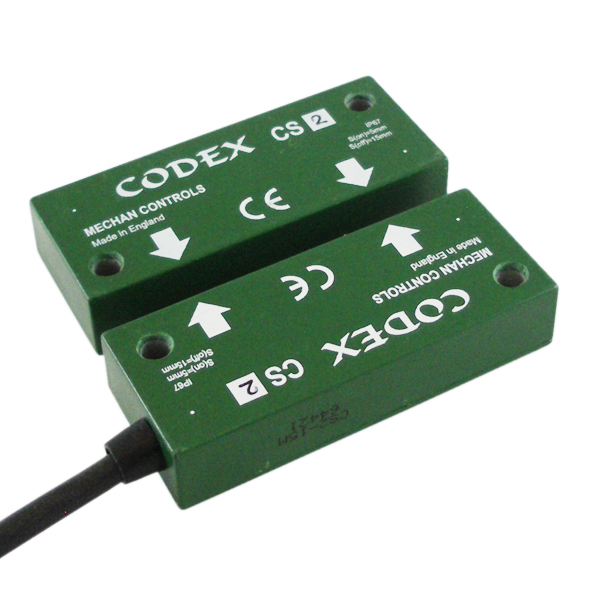

CS2 digital electronic safety switches are part of the CODEX safety system. Fully encapsulated into green ABS housings, with off-set, pre-drilled fixing holes directly through the body of the switch for additional strength and a consistent 10mm switching even when mounted on metal frames. The CODEX safety switches are easy to fit and offer exceptional physical strength for long term reliability.

Product Code Description Part No. Quote options Added to Basket
322.003 CS2-5M CODEX SAFETY SWITCH CS2-5M
Qty: - +

322.004 CS2-10M CODEX SAFETY SWITCH CS2-10M
Qty: - +

322.005 CS2-15M CODEX SAFETY SWITCH CS2-15M
Qty: - +

322.013 CS2-REC-5M CODEX RECIEVER WITH 5M CABLE CS2-5M (REC)
Qty: - +

322.014 CS2-REC-10M CODEX RECEIVER WITH 10M CABLE CS2-10M(REC)
Qty: - +

322.015 CS2-REC-15M CODEX RECEIVER WITH 15M CABLE CS2-15M (REC)
Qty: - +

322.098 CS2-ACT CODEX ACTUATOR ONLY CS2-ACT
Qty: - +

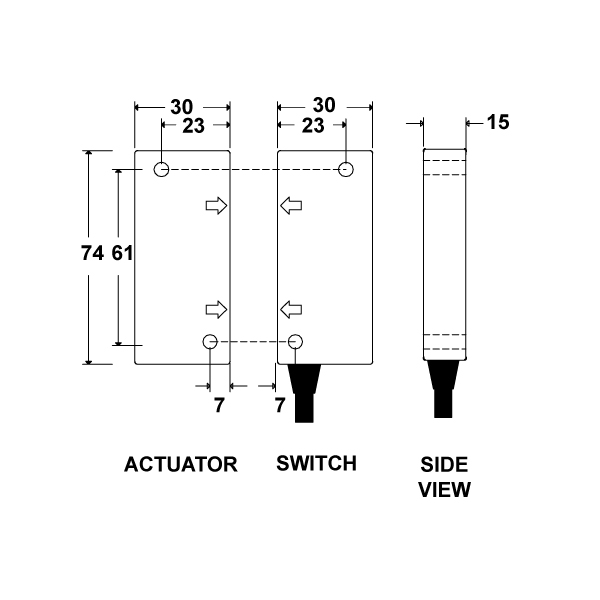

Dimensions (mm)

Dimensions in millimetres

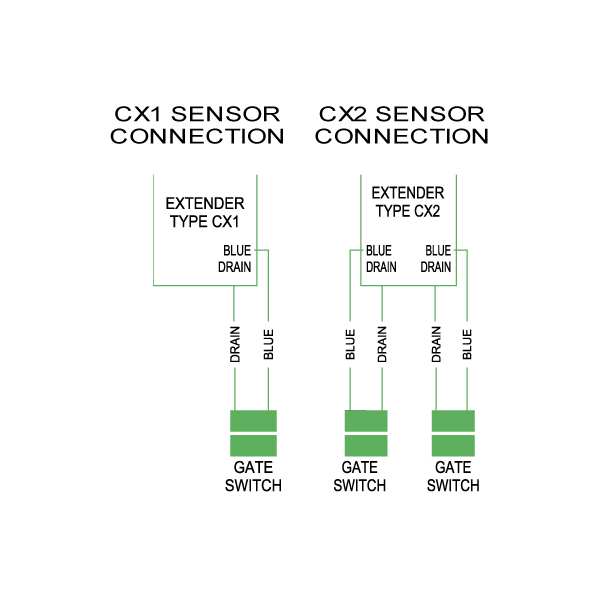

Connection Drawing 1

Technical Specifications
Reset Options at control unit
Construction Green ABS, Resin Filled
Indication at control unit
IP Rating IP67
Weight na
Mounting 4 x M4
Coding Digital Electronic, Generic code
Input na
Dimensions of Switch (mm) 74 x 30 x 15mm
Dimensions of Actuator (mm) 74 x 30 x 15mm
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 CAT 4
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
Notes

As part of a CODEX system

File Title File Name Download File
MECHAN CODEX INSTALLATION GUIDE 320-400V7-MECHAN-CODEX-INSTALLATION-GUIDE.pdf PDF (526 KB)
