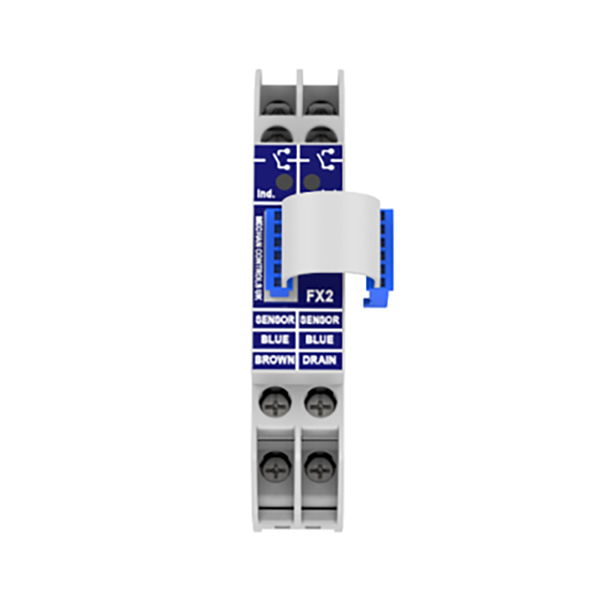

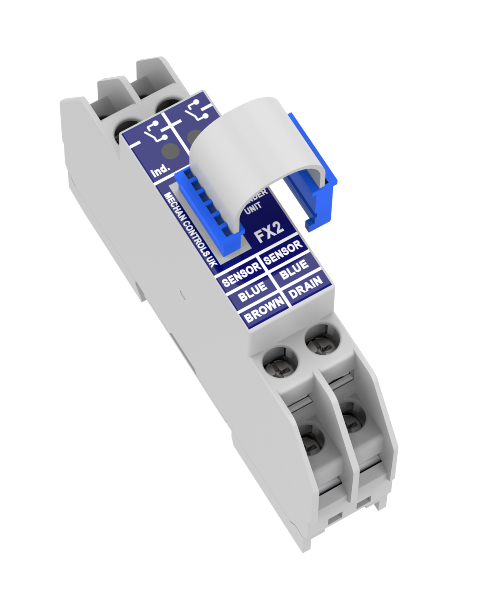

FX2

FX2 FX2 FX2 FX2

Approvals

CE Approved

•   Dual safety switch extender module
•   LED and volt free contact indication
•   35mm DIN rail mounting
•   17.5 mm wide


The FX2 extender module adds two safety switch inputs to a F-Series safety system. Connects via a built in 6-way strap to the adjacent FM1 control module (or extender module) and has the indication output, LED and volt free contact, for each switch.

NOTE. An FX2 must have 2 Mechan safety switches connected to it to operate.

Product Code Description Part No. Quote options Added to Basket
328.001 FX2 EXTENDER MODULE FX2
Qty: - +

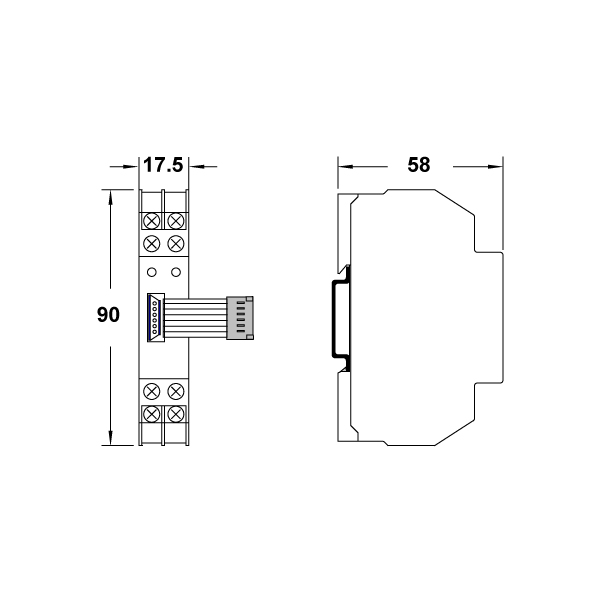

Dimensions (mm)

Dimensions in millimetres

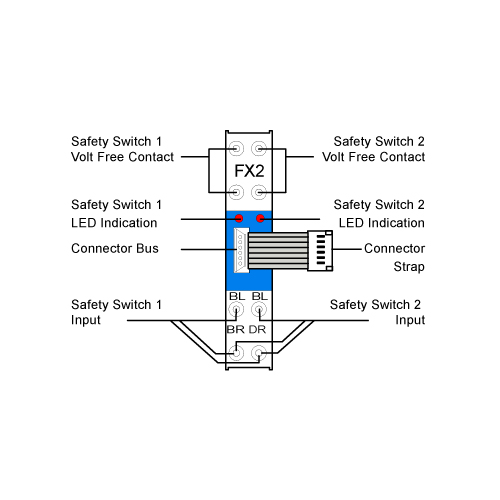

FX2 Layout

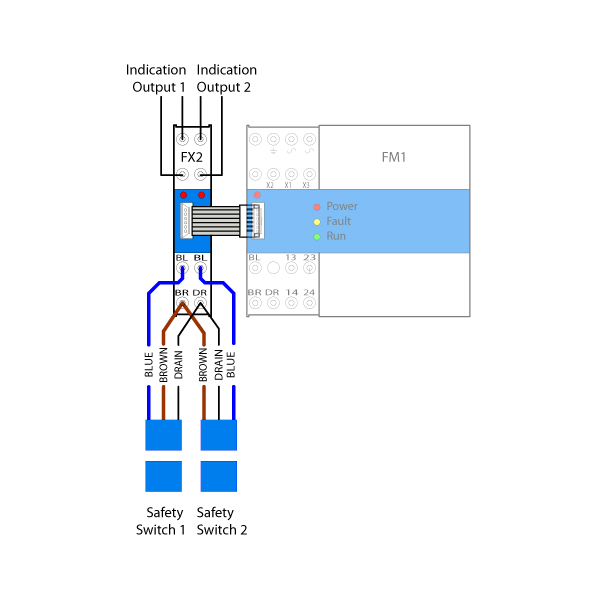

Connection Drawing 1

Technical Specifications
Construction Grey PC-GF
Indication 2 x Guard Status LED and 2 x Volt Free Contact
IP Rating Housing IP30, Terminals IP20
Weight xxx
Mounting 35mm DIN Rail
Power Consumption 3VA
Cable / Connector Screw Terminals
Coding Electronic, Generic code
Input 2 Electronic Safety Switches
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
