SFMG

SFMG SFMG SFMG SFMG

Approvals

CE Approved

•   Electronic safety switch
•   Enhanced EMC immunity
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in cord grip gland

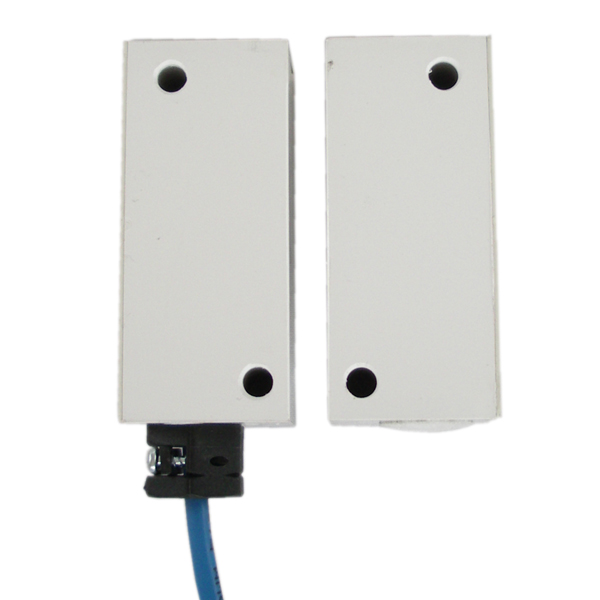

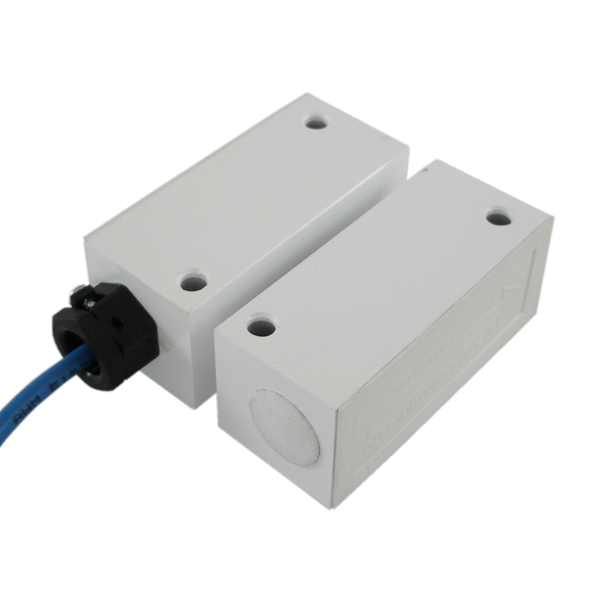

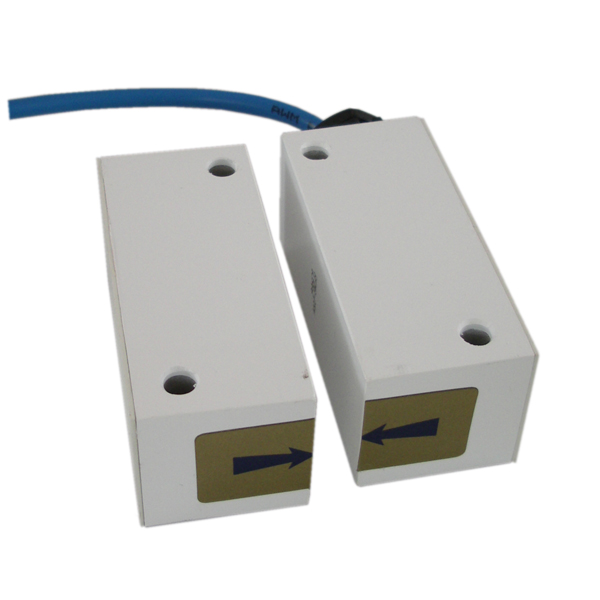

The SFMG electronic safety switches are the same robust design as the F-Type switches with additional protection for areas of high electronic noise pollution. Fully encapsulated into white ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the S-Type switches offer the same ease of fitting and long term reliability.



Product Code Description Part No. Quote options Added to Basket
312.004 SFMG-5M S-TYPE SAFETY SWITCH SFMG-5M
Qty: - +

312.005 SFMG-10M S-TYPE SAFETY SWITCH SFMG-10M
Qty: - +

312.006 SFG-5M S-TYPE SAFETY SWITCH SFG-5M
Qty: - +

312.007 SFG-10M S-TYPE SAFETY SWITCH SFG-10M
Qty: - +

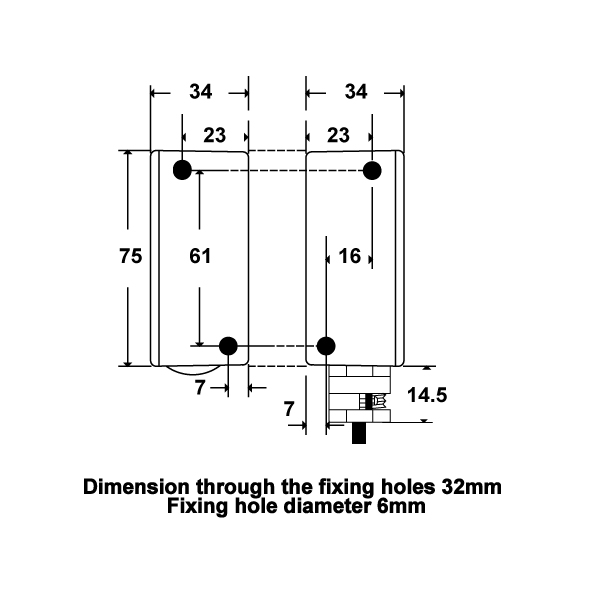

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Reset Options At control unit
Indication At control unit
Dimensions of Switch (mm) 75 x 34 x 32mm
Dimensions of Actuator (mm) 75 x 34 x 32mm
Weight na
IP Rating IP67
Construction White ABS, Resin Filled
Mounting 4 x M6 Bolts
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system
