Multi-Beam Resolution

Multi-Beam Resolution Multi-Beam Resolution

Approvals

CE Approved

Housing:
    Metal, Painted Yellow
Nominal Curtain Length:
    200mm – 1800mm
Operating Range:
    0.5m – 15m
Response Time:
    20ms up to 1800mm Curtain
Output Type:
    Type 4, OSSD PNP
Ingress Protection Rating:
    IP65

*Please note that cable accessories are sold separately. Cable part numbers can be located at the bottom of the quote options table.*

The MLG-Series are robust, type 4 light curtains designed for ON/OFF detection. Each unit comprises of a transmitter and receiver that are connected via 2, 3 and 4 infrared beams. This provides a reliable and cost-effective access protection for hazardous points and hazardous areas.

The body consists of a robust, IP65 metal enclosure designed for use in harsh environments. The infrared beams are tolerant to dust, ideal for use in the heavy industry. The transmitter includes a unique dot matrix display that provides the user with various diagnostic data such as beam interruption and output status.

Product Code Description Part No. Quote options Added to Basket
381.000 MLG / Type 4 / 2 Beams / 600mm Height / (Emitter and Receiver) MLG/2/600
Qty: - +

381.001 MLG / Type 4 / 2 Beams / 600mm Height / (Emitter Only) MLG/E/2/600
Qty: - +

381.002 MLG / Type 4 / 2 Beams / 600mm Height / (Receiver Only) MLG/R/2/600
Qty: - +

381.003 MLG / Type 4 / 3 Beams / 900mm Height / (Emitter and Receiver) MLG/3/900
Qty: - +

381.004 MLG / Type 4 / 3 Beams / 900mm Height / (Emitter Only) MLG/E/3/900
Qty: - +

381.005 MLG / Type 4 / 3 Beams / 900mm Height / (Receiver Only) MLG/R/3/900
Qty: - +

381.006 MLG / Type 4 / 4 Beams / 1200mm Height / (Emitter and Receiver) MLG/4/1200
Qty: - +

381.007 MLG / Type 4 / 4 Beams / 1200mm Height / (Emitter Only) MLG/E/4/1200
Qty: - +

381.008 MLG / Type 4 / 4 Beams / 1200mm Height / (Receiver Only) MLG/R/4/1200
Qty: - +

382.000 Emitter Cable QD 5 Way 5M 5POLE-QD-5M-E
Qty: - +

382.001 Emitter Cable QD 5 Way 10M 5POLE-QD-10M-E
Qty: - +

382.002 Emitter Cable QD 5 Way 20M 5POLE-QD-20M-E
Qty: - +

382.003 Receiver Cable QD 8 Way 5M 8POLE-QD-5M-R
Qty: - +

382.004 Receiver Cable QD 8 Way 10M 8POLE-QD-10M-R
Qty: - +

382.005 Receiver Cable QD 8 Way 20M 8POLE-QD-20M-R
Qty: - +

Get Quote

CONNECTION DRAWING 1

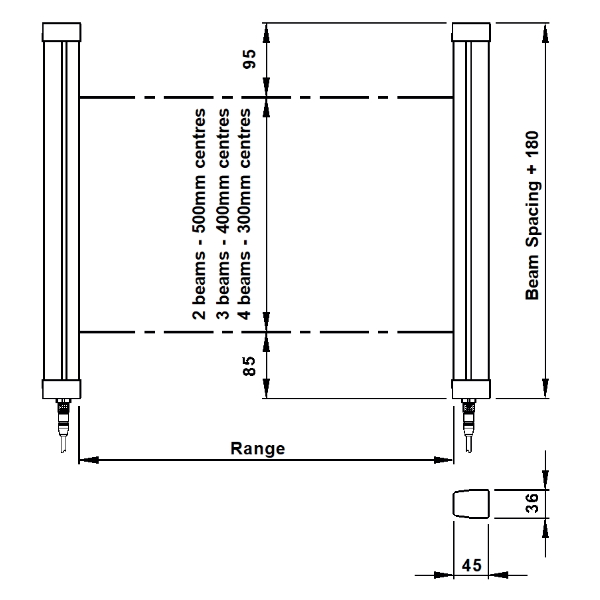

Multi Beam Detection Zone

Technical Specifications
Supply Voltage Options 24V d.c. ±20%, 5% maximum residual ripple
Power Consumption < 12VA
Safety Output OSSD / 100ms Pulse Width
Safety Output Rating 200mA
Nominal Curtain Length 200mm - 1800mm
Operating Range 0.5-15m
Detection Resolutions 2, 3 and 4 Beams (Full Body)
Response Time 20ms up to 1800mm Curtain
Cable / Connector M12
Indication Dot Matrix Diagnostic Display
IP Rating IP65
Environmental Specifications
Operating Temperature 0º...50º C
Storage Temperature -20º...70º C
Safety Related Data
PL in accordance with EN ISO 13849-1
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
File Title File Name Download File
380 800 MLG Series Light Curtain Installation Guide Iss1 380-800-MLG-Series-Light-Curtain-Installation-Guide-Iss1.pdf PDF (3.7 MB)
