FMS

FMS FMS FMS

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Tapered grommet cable strain relief

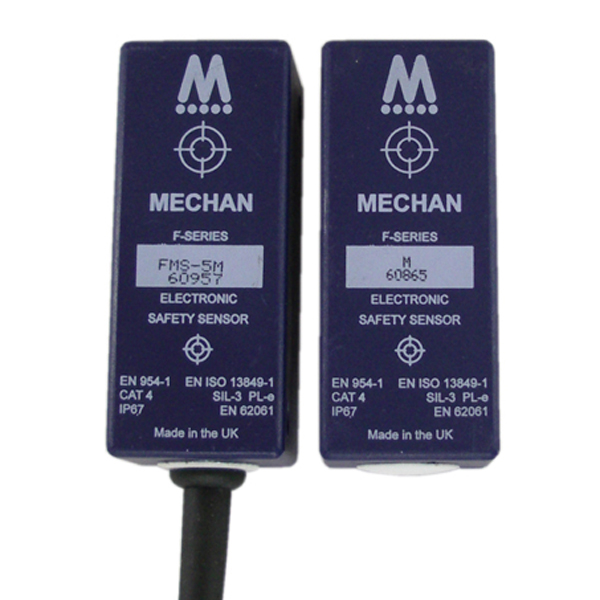

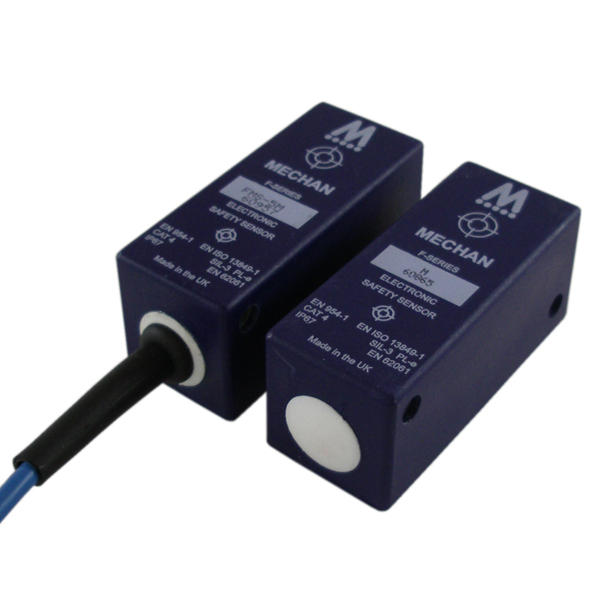

FMS electronic safety switches are part of our most robust design, with built in cable protection for harsh environments. Fully encapsulated into blue ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the F-Type switches are easy to fit and offer exceptional physical strength for long term reliability.

Product Code Description Part No. Quote options Added to Basket
312.013 FMS-5M F-TYPE SAFETY SWITCH FMS-5M
Qty: - +

312.014 FMS-10M F-TYPE SAFETY SWITCH FMS-10M
Qty: - +

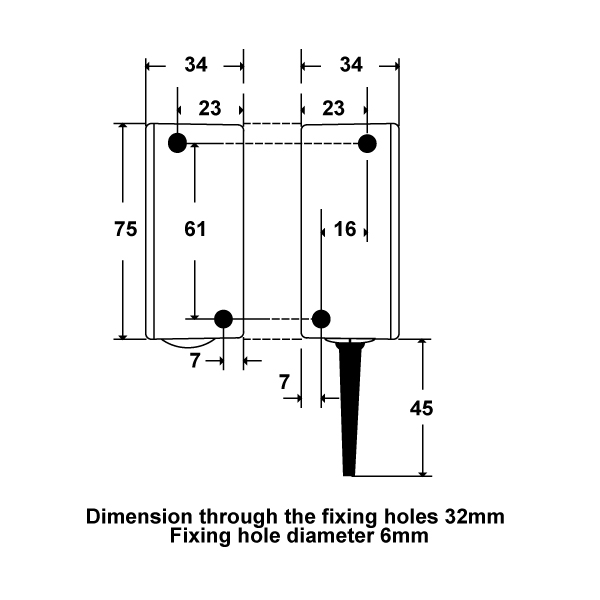

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67
Weight na
Mounting 4 x M6 Bolts
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Switch (mm) 75 x 34 x 32mm
Dimensions of Actuator (mm) 75 x 34 x 32mm
Environmental Specifications
Operating Temperature na
Storage Temperature na
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss5 Mechan F Series Install Guide 327-400-ID-Iss5-Mechan-F-Series-Install-Guide.pdf PDF (949 KB)
