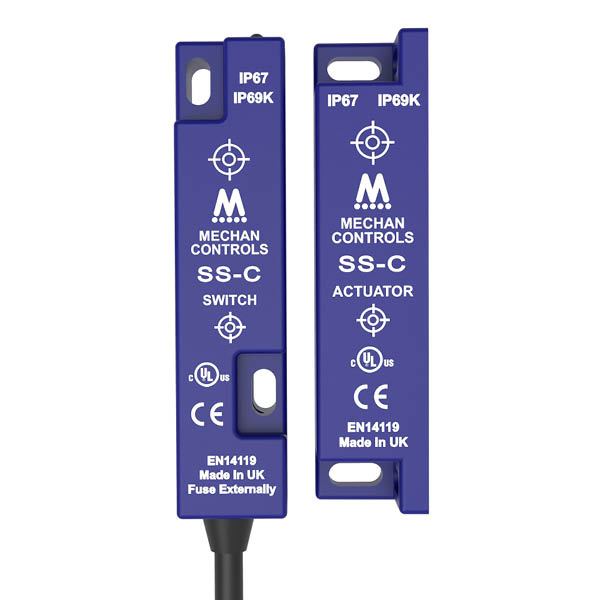

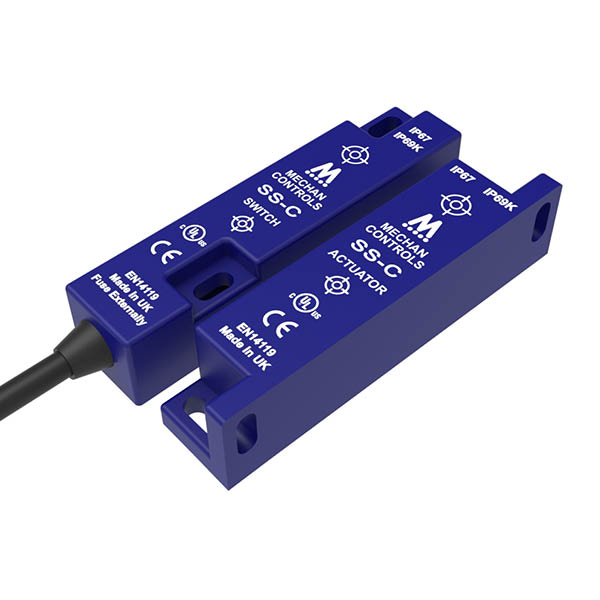

SSC

SSC Zoom
SSC SSC SSC

Approvals

CE Approved

Housing:
    Blue ABS, Resin Encapsulated
Contacts:
    1NO + 1NC or 2NO (with door open)
Contact Rating:
    500mA 24VDC
Coding:
    Single Code, RFID
Indication:
    Guard Status Indication
Ingress Protection Rating:
    IP67 and IP69K

SS-C safety switches are standalone RFID, non-contact, safety switches. With 2NO or 1NO + 1NC contacts, capable of switching 500mA at 24Vdc or 110Vac.

With tamper resistant, RFID switching, the SS-C are suitable for use with most modern, low inrush current, safety relays. A dual colour, built in LED, helps the operator in speedy fault diagnosis. The SS-C safety switches are available with 3, 5 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

Product Code Description Part No. Quote options Added to Basket
363.002 SS-C / Plastic / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) SS-C-11-03M
Qty: - +

363.000 SS-C / Plastic / 1NO + 1NC / 24VDC / 05-Metre Pre-Wired (Switch and Actuator) SS-C-11-05M
Qty: - +

363.001 SS-C / Plastic / 1NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator) SS-C-11-10M
Qty: - +

363.005 SS-C / Plastic / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) SS-C-20-03M
Qty: - +

363.099 SS-C-ACT (ACTUATOR ONLY) SS-C-ACT
Qty: - +


Download Step Drawing SSC-PLASTIC-SWITCH-PRE-WIRED.STEP Download Step Drawing SSC-PLASTIC-ACTUATOR.STEP

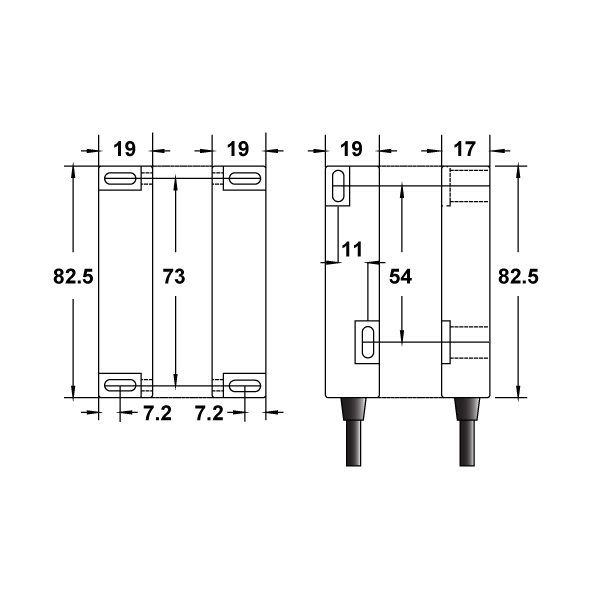

DIMENSIONS (MM)

Dimensions in millimetres

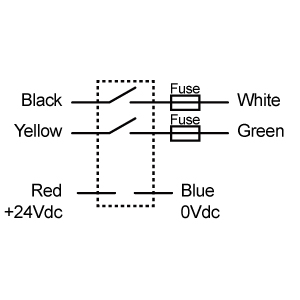

2 Normally Open Contacts

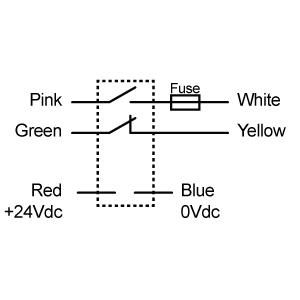

1 Normally Open Contact + 1 Normally Closed

Technical Specifications
Construction Blue ABS, Resin Filled
Indication DUAL COLOUR LED
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Supply Voltage Options 24VDC
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 110Vac / 500mA or 24Vdc / 500mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 110Vac / 500mA or 24Vdc / 500mA
Cable / Connector Pre-wired
Cable Length 3, 5 or 10 metre
Coding RFID, Generic code
Dimensions of Switch (mm) 82.5 x 19 x 17mm
Dimensions of Actuator (mm) 82.5 x 19 x 19mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
360 400 Iss15 MECHAN S Type Installation Guide 360-400-Iss15-MECHAN-S-Type-Installation-Guide.pdf PDF (1.7 MB)
SSC-PLASTIC-SWITCH-PRE-WIRED-3D SSC-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (410 KB)
SSC-PLASTIC-ACTUATOR-3D SSC-PLASTIC-ACTUATOR.STEP STEP (187 KB)
