MS7SS

MS7SS MS7SS

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    Pre-Wired Cable, 6 cores
Operating Distance:
    7mm ON / 20mm OFF
Ingress Protection Rating:
    IP67 and IP69K

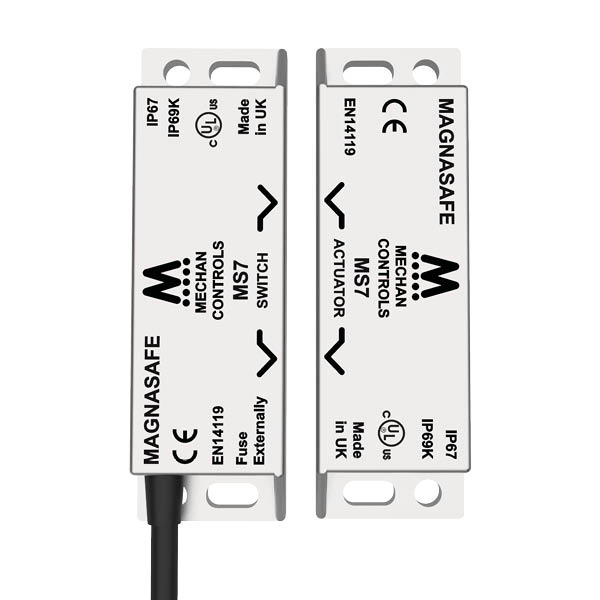

The MAGNASAFE MS7 safety switches are tamper resistant magnetic safety switches suitable for use in machine guarding applications. Encapsulated into 316 Grade stainless steel housings, the MS7 safety switches are easy to install, tolerant to misalignment. The magnetic non-contact operation has a minimum 7 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
357.020 MS7 / Stainless Steel / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS7-SS-21-DC-03M
Qty: - +

357.021 MS7 / Stainless Steel / 2NO + 1NC / DC / 05-Metre Pre-Wired (Switch and Actuator) MS7-SS-21-DC-05M
Qty: - +

357.090 MS7-SS-ACT (ACTUATOR ONLY) MS7-SS-ACT
Qty: - +

357.022 MS7 / Stainless Steel / 3NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS7-SS-30-DC-03M
Qty: - +

Technical Specifications
Reset Options na
Construction 316 Grade Stainless Steel
Indication 1 x Volt Free Contact
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Supply Voltage Options na
Power Consumption na
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 300mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding Magnet & Reed
Input na
Dimensions of Control Unit (mm) na

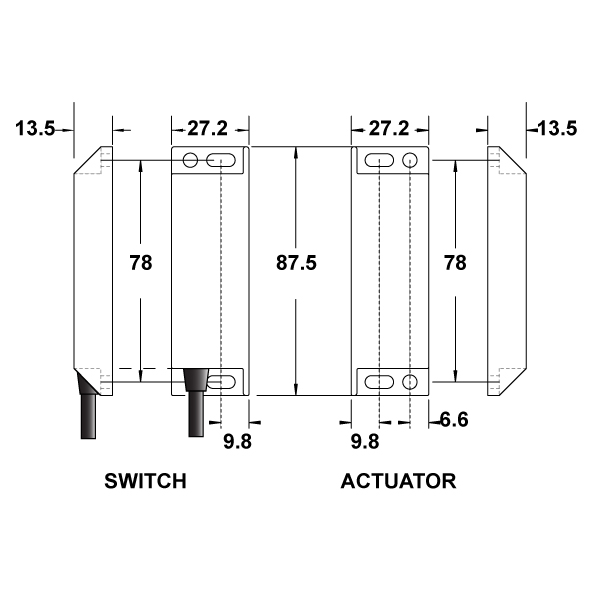

Dimensions of Switch (mm) 87.5 x 27.2 x 13.5
Dimensions of Actuator (mm) 87.5 x 27.2 x 13.5
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 401 Iss16 MECHAN MS5 MS7 Installation Guide 350-401-Iss16-MECHAN-MS5-MS7-Installation-Guide.pdf PDF (1.2 MB)
MS7-STAINLESS-STEEL-SWITCH-PRE-WIRED-3D MS7-SS-Switch-Pre-Wired.STEP STEP (317 KB)
MS7-STAINLESS-STEEL-ACTUATOR-3D MS7-Stainless-Steel-Actuator.STEP STEP (255 KB)
