•   2 Gate Safety Control Module
•   24V ac/dc
•   LED Diagnostics
•   Dual Channel Output + Auxilliary
•   Automatic / Manual-Monitored Reset

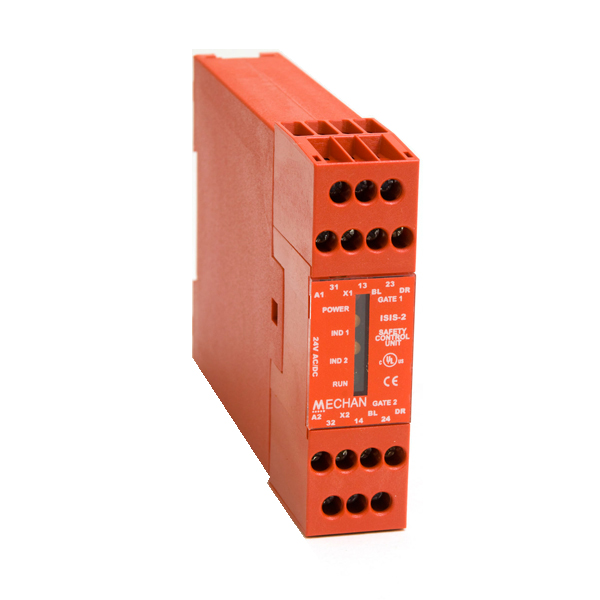

The ISIS-2 control unit is a 24V ac/dc system that can monitor up to 2 ISIS safety switches. The ISIS-2 has 2 normally open safety contact outputs and 1 normally closed auxiliary output, an external re-set/proving circuit and LED indication for ‘Power’, ‘Run’ and the status of each activated gate switch.

Product Code Description Part No. Quote options Added to Basket
371.000 ISIS-2 24VAC/DC SAFETY CONTROL UNIT ISIS-2-24VAC/DC
Qty: - +

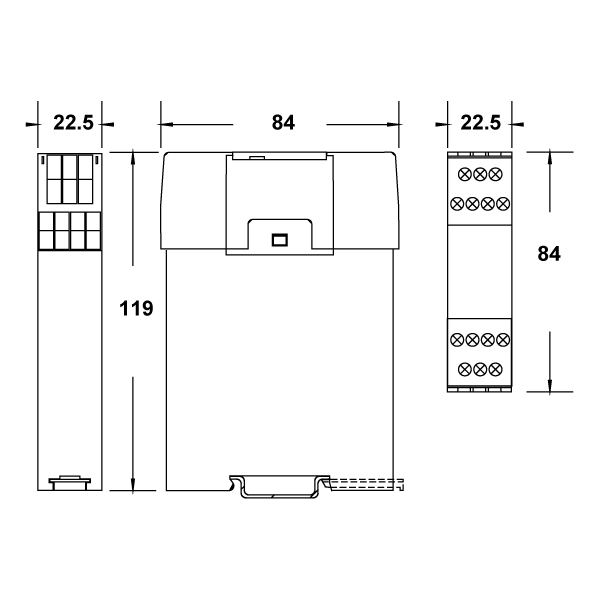

Dimensions (mm)

Dimensions in millimetres

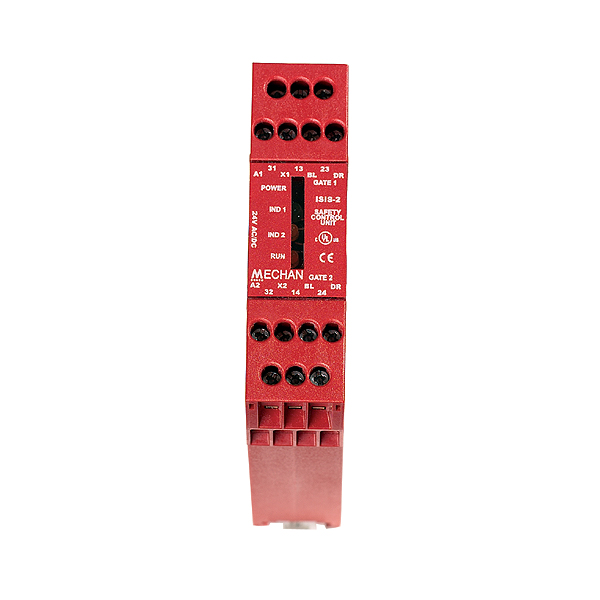

Product Layout


connection drawing 1

Technical Specifications
Reset Options Automatic or Manual Monitored
Construction Red Polycarbonate housing and terminals
Indication Power & Run LED's + Guard Status LED's
IP Rating Housing IP40, Terminals IP20
Weight na
Mounting 35mm DIN Rail
Supply Voltage Options 24Vac/dc (+/- 15 %)
Power Consumption 3VA
Safety Output 2 x NO
Safety Output Rating 4A/230Vac; 2A/24Vdc(Res.)@Cos=1
Auxilliary Output 1 x NC
Auxilliary Output Rating 4A/230Vac; 2A/24Vdc(Res.)@Cos=1
Coding Single Code, Tamper Resistant
Input Up to 2 ISIS Switches
Dimensions of Control Unit (mm) 22.5 x 84 x 119mm
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 3
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 3.37 x 10-8
PFH 5.63 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 Years
DC 99%
SFF 99.40%
Notes

As part of an ISIS System

File Title File Name Download File
370 400 Iss16 ISIS Installation Guide 370-400-Iss16-ISIS-Installation-Guide.pdf PDF (1011 KB)
