MS21

MS21 MS21 MS21

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    1NO, 1NO + 1NC, 2NO, 2NO + 1NC (with door open)
Contact Rating:
    2A 230VAC / 1A 24VDC
Connection Type:
    Pre-Wired Cable, 2, 4, 6 cores
Operating Distance:
     8mm ON / 28mm OFF
Ingress Protection Rating:
    IP67 and IP69K

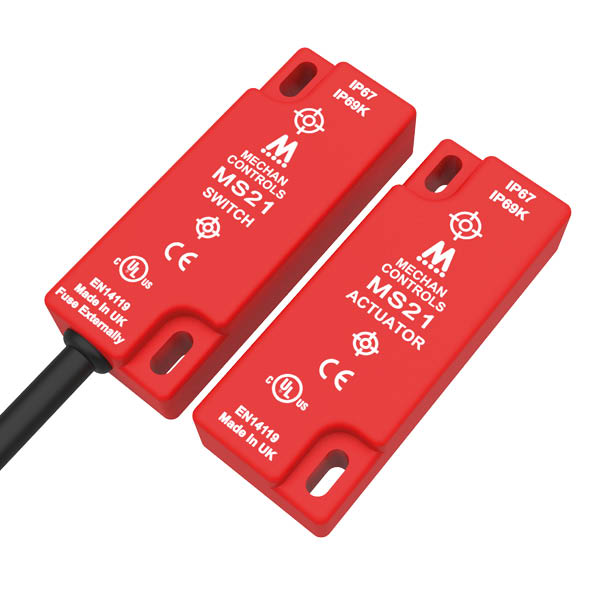

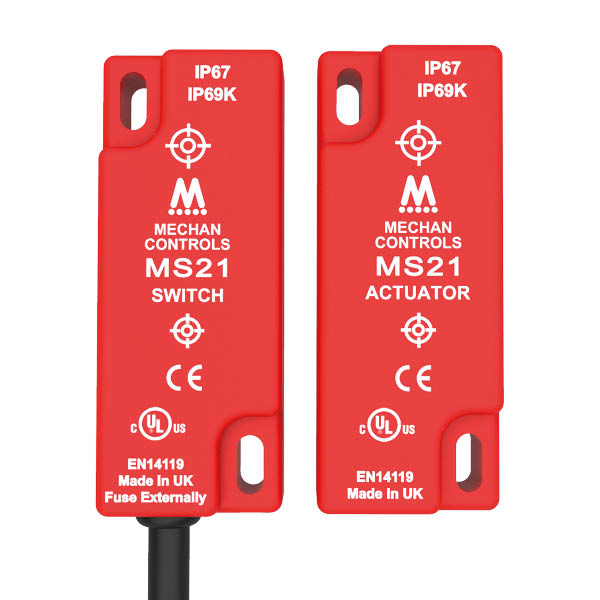

The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. Easy to install, tolerant to misalignment, the non-contact operation has a 10mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
359.044 MS21 / Plastic / 1NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS21-10-DC-03M
Qty: - +

359.000 MS21 / Plastic / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS21-11-DC-03M
Qty: - +

359.001 MS21 / Plastic / 1NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator) MS21-11-DC-06M
Qty: - +

359.017 MS21 / Plastic / 1NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS21-11-DC-10M
Qty: - +

359.051 MS21 / Plastic / 1NO + 1NC / DC / 15-Metre Pre-Wired (Switch and Actuator) MS21-11-DC-15M
Qty: - +

359.002 MS21 / Plastic / 2NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS21-20-DC-03M
Qty: - +

359.003 MS21 / Plastic / 2NO / DC / 06-Metre Pre-Wired (Switch and Actuator) MS21-20-DC-06M
Qty: - +

359.004 MS21 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS21-21-DC-03M
Qty: - +

359.005 MS21 / Plastic / 2NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator) MS21-21-DC-06M
Qty: - +

359.019 MS21 / Plastic / 2NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS21-21-DC-10M
Qty: - +

359.041 MS21 / Plastic / 1NO / 230AC / 04-Metre Pre-Wired (Switch and Actuator) MS21-10-AC-04M
Qty: - +

359.006 MS21 / Plastic / 1NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS21-11-AC-03M
Qty: - +

359.007 MS21 / Plastic / 1NO + 1NC / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS21-11-AC-06M
Qty: - +

359.021 MS21 / Plastic / 1NO + 1NC / 230AC / 10-Metre Pre-Wired (Switch and Actuator) MS21-11-AC-10M
Qty: - +

359.008 MS21 / Plastic / 2NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS21-20-AC-03M
Qty: - +

359.009 MS21 / Plastic / 2NO / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS21-20-AC-06M
Qty: - +

359.010 MS21 / Plastic / 2NO + 1NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS21-21-AC-03M
Qty: - +

359.011 MS21 / Plastic / 2NO + 1NO / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS21-21-AC-06M
Qty: - +

359.023 MS21 / Plastic / 2NO + 1NO / 230AC / 10-Metre Pre-Wired (Switch and Actuator) MS21-21-AC-10M
Qty: - +

359.056 MS21 / Plastic / 2NO + 1NO / 230AC / 15-Metre Pre-Wired (Switch and Actuator) MS21-21-AC-15M
Qty: - +

359.099 MS21-ACT (ACTUATOR ONLY) MS21-ACT
Qty: - +


Download Step Drawing MS21-PLASTIC-SWITCH-PRE-WIRED.STEP Download Step Drawing MS21-Red-ABS-Actuator.STEP

Dimensions (mm)

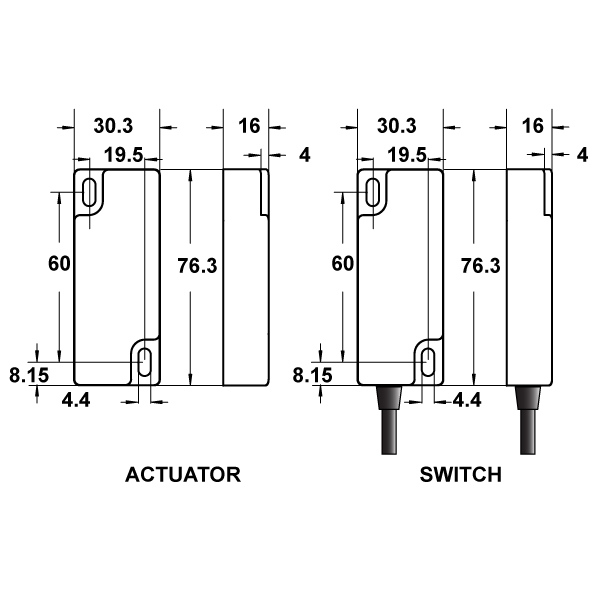

Dimensions in millimetres

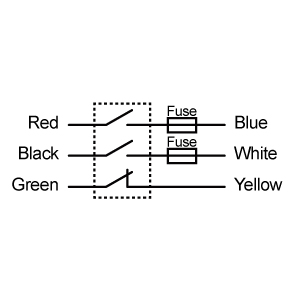

2 Normally Open Contacts + 1 Normally Closed

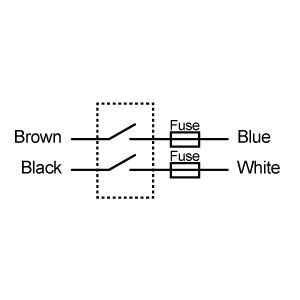

2 Normally Open Contacts

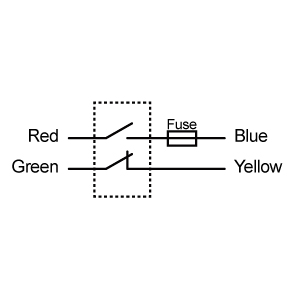

1 Normally Open Contact + 1 Normally Closed

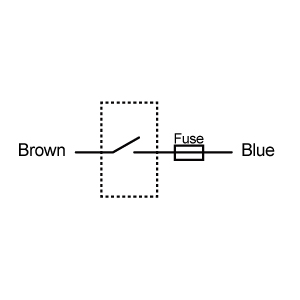

1 Normally Open Contact

Technical Specifications
Construction Red ABS, Resin Filled
Indication 1 x Volt Free Contact
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 76.3 x 30.3 x 16mm
Dimensions of Actuator (mm) 76.3 x 30.3 x 16mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 402 Iss19 MECHAN MS6 MS21 Installation Guide 350-402-Iss19-MECHAN-MS6-MS21-Installation-Guide.pdf PDF (1.2 MB)
MS21-PLASTIC-SWITCH-PRE-WIRED-3D MS21-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (571 KB)
MS21 Red ABS Actuator MS21-Red-ABS-Actuator.STEP STEP (169 KB)
