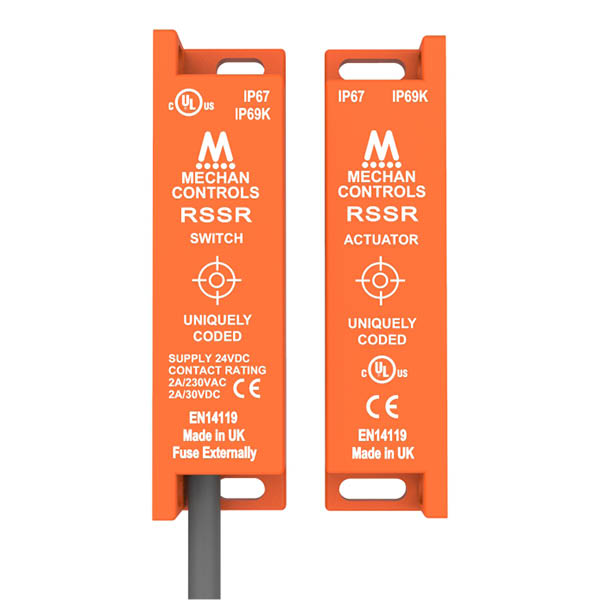

RSSR

RSSR RSSR

Approvals

CE Approved

Housing:
    Orange ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    3A - 24Vdc & 230Vac
Coding:
    Uniquely Coded, RFID
Indication:
    Bi-Colour LED (Open/Close Indication)
Ingress Protection Rating:
    IP67 and IP69K

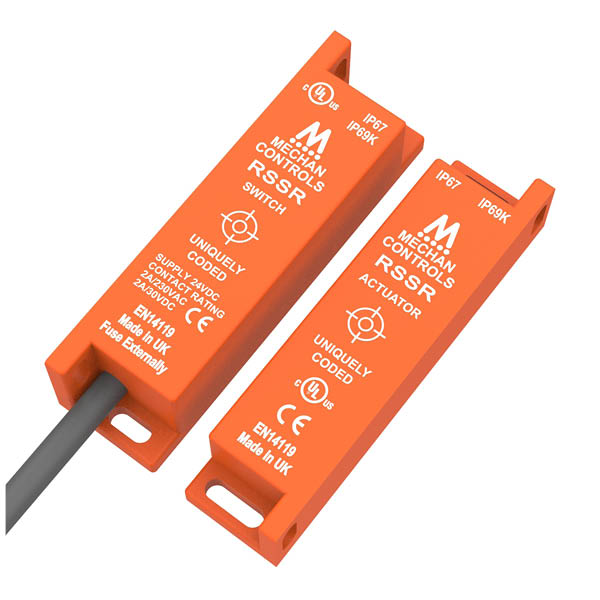

RSSR are standalone, non-contact RFID safety switches. With 2NO + 1NC contacts, capable of switching 3A at 24Vdc & 230Vac. With tamper proof RFID switching, the RSSR is suitable for use with most safety relays. A dual colour, built in LED helps the operator in speedy fault diagnosis. The RSSR safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

Product Code Description Part No. Quote options Added to Basket
364.000 RSSR / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) RSSR-21-DC-03M
Qty: - +

364.001 RSSR / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator) RSSR-21-DC-06M
Qty: - +

364.002 RSSR / Plastic / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator) RSSR-21-DC-10M
Qty: - +

364.015 RSSR-ACT ACTUATOR ONLY RSSR-ACT
Qty: - +

Get Quote
Technical Specifications
Supply Voltage Options 24Vdc
Power Consumption 2VA / 2W

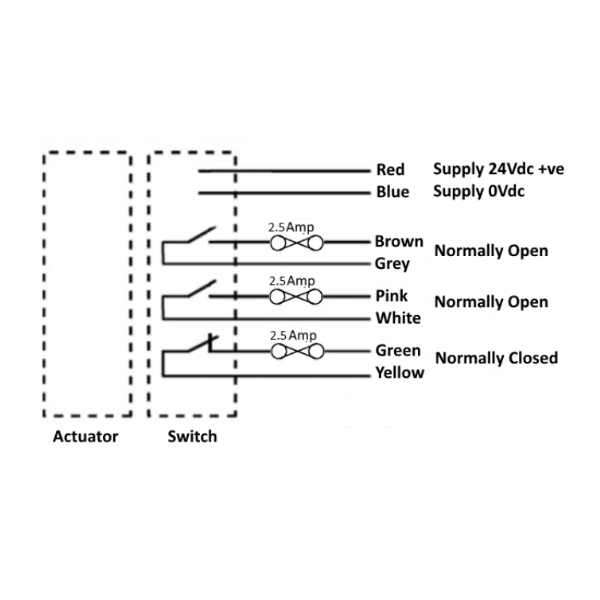

Safety Output 2 X NO
Safety Output Rating 24Vdc/230Vac / 3 Amps
Auxilliary Output 1 X NC
Auxilliary Output Rating 24Vdc/230Vac / 3 Amps
Cable / Connector PRE-WIRED
Cable Length 3, 6 or 10 metre
Coding RFID, Uniquely coded
Indication DUAL COLOUR LED

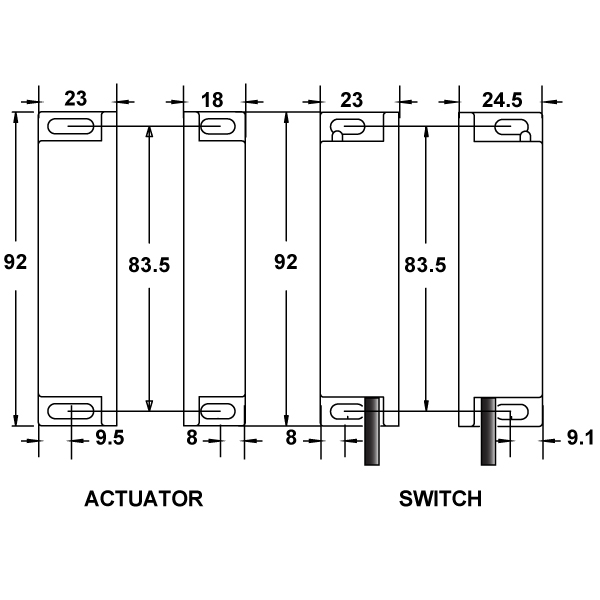

Dimensions of Switch (mm) 92 x 24.5 x 23mm
Dimensions of Actuator (mm) 92 x 23 x 18mm
IP Rating IP69k
Construction ORANGE ABS, RESIN FILLED
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to +60°C
Storage Temperature -10°C to +60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 E
SIL CL in accordance with EN IEC 62061 3
PFHd in accordance with EN IEC 62061 4.3 x 10-8
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 99%
Notes

1) Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
364 400 Iss2 MECHAN RSS Series Installation Guide 364-400-Iss2-MECHAN-RSS-Series-Installation-Guide.pdf PDF (1.2 MB)
RSSR-PLASTIC-SWITCH-PRE-WIRED-3D RSSR-PLASTIC-SWITCH-PRE-WIRED.STEP STEP (168 KB)
RSSR-PLASTIC-ACTUATOR-3D RSSR-PLASTIC-ACTUATOR.STEP STEP (243 KB)
