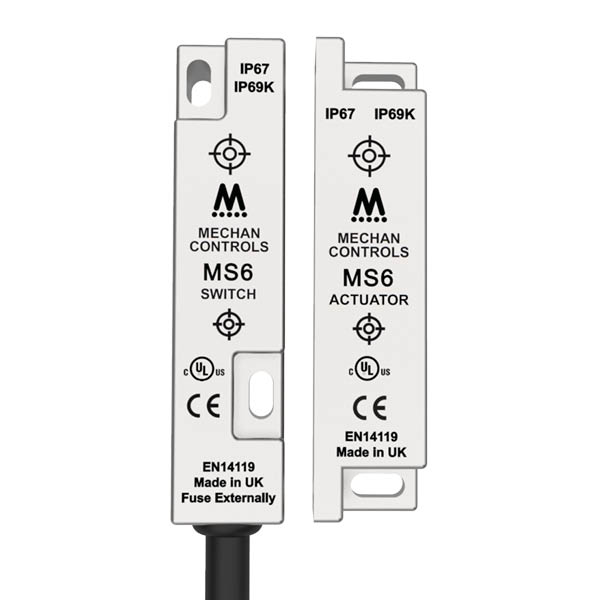

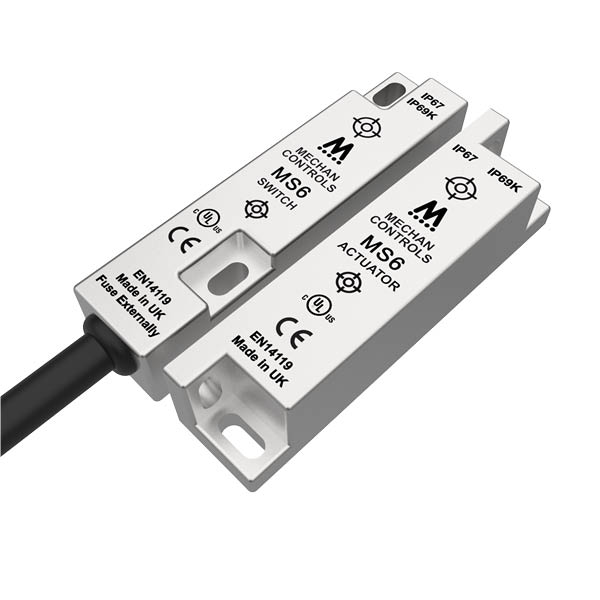

MS6SS

MS6SS MS6SS MS6SS

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    1NO, 1NO + 1NC, 2NO, 2NO + 1NC (with door open)
Contact Rating:
    2Amp 230VAC / 1Amp 24VDC
Connection Type:
    Pre-Wired Cable, 4-Core / 6-Core
Operating Distance:
    10mm ON / 28mm OFF
Ingress Protection Rating:
    IP67 and IP69K

The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 10 – 28 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
356.050 MS6 / Stainless Steel / 1NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-SS-10-DC-03M
Qty: - +

356.051 MS6 / Stainless Steel / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-SS-11-DC-03M
Qty: - +

356.052 MS6 / Stainless Steel / 2NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-SS-20-DC-03M
Qty: - +

356.053 MS6 / Stainless Steel / 1NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS6-SS-10-AC-03M
Qty: - +

356.057 MS6 / Stainless Steel / 2NO / DC / 05-Metre Pre-Wired (Switch and Actuator) MS6-SS-20-DC-05M
Qty: - +

356.058 MS6 / Stainless Steel / 1NO / DC / 06-Metre Pre-Wired (Switch and Actuator) MS6-SS-10-DC-06M
Qty: - +

356.059 MS6 / Stainless Steel / 1NO / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS6-SS-10-AC-06M
Qty: - +

356.083 MS6 / Stainless Steel / 1NO / 230AC / 10-Metre Pre-Wired (Switch and Actuator) MS6-SS-10-AC-10M
Qty: - +

356.060 MS6 / Stainless Steel / 1NO / DC / 03-Metre Pre-Wired (switch only) MS6-SS-10-DC-03M(SO)
Qty: - +

356.061 MS6 / Stainless Steel / 1NO + 1NC / DC / 03-Metre Pre-Wired (switch only) MS6-SS-11-DC-03M(SO)
Qty: - +

356.062 MS6 / Stainless Steel / 2NO / DC / 03-Metre Pre-Wired (switch only) MS6-SS-20-DC-03M(SO)
Qty: - +

356.063 MS6 / Stainless Steel / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-SS-21-DC-03M
Qty: - +

356.066 MS6 / Stainless Steel / 2NO / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-SS-20-DC-10M
Qty: - +

356.067 MS6 / Stainless Steel / 2NO + 1NC / DC / 05-Metre Pre-Wired (Switch and Actuator) MS6-SS-21-DC-05M
Qty: - +

356.068 MS6 / Stainless Steel / 2NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-SS-21-DC-10M
Qty: - +

356.078 MS6 / Stainless Steel / 2NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator) MS6-SS-21-DC-06M
Qty: - +

356.079 MS6 / Stainless Steel / 1NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-SS-11-DC-10M
Qty: - +

356.080 MS6 / Stainless Steel / 1NO / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-SS-10-DC-10M
Qty: - +

356.099 MS6-SS-ACT (ACTUATOR ONLY) MS6-SS-ACT
Qty: - +


Download Step Drawing MS6-SS-Switch-Pre-Wired.STEP Download Step Drawing MS6-SS-Actuator.STEP

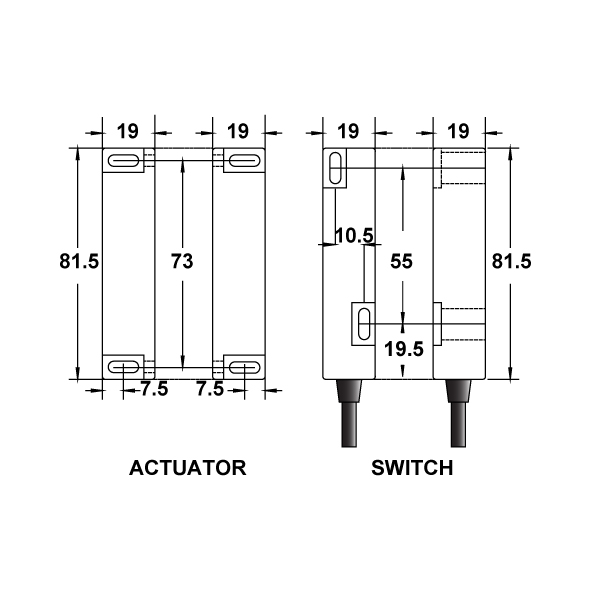

DIMENSIONS (MM)

Dimensions in millimetres

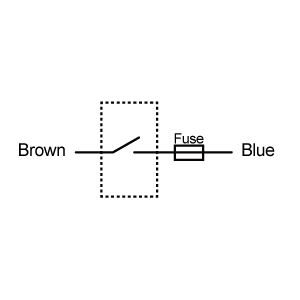

2 Normally Open Contacts + 1 Normally Closed Contact

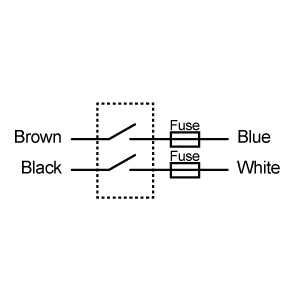

2 Normally Open Contacts

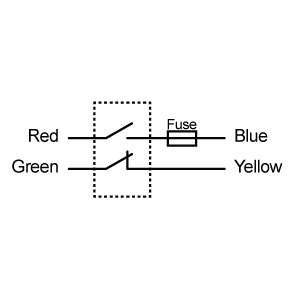

2 Normally Open Contacts + 1 Normally Closed Contact

Technical Specifications
Construction 316 Grade Stainless Steel
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 81.5 x 19 x 19mm
Dimensions of Actuator (mm) 81.5 x 19 x 19mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 402 Iss19 MECHAN MS6 MS21 Installation Guide 350-402-Iss19-MECHAN-MS6-MS21-Installation-Guide.pdf PDF (1.2 MB)
MS6-STAINLESS-STEEL-SWITCH-PRE-WIRED-3D MS6-SS-Switch-Pre-Wired.STEP STEP (268 KB)
MS6-STAINLESS-STEEL-ACTUATOR-3D MS6-SS-Actuator.STEP STEP (179 KB)
