HE-Series - Coded Magnetic Safety Switches

Approvals

CE Approved

Solid State, Coded Magnetic Safety Switches
Standalone, Volt-Free Contact Outputs
Dual Colour Indication on the Safety Switch
• Shock and Vibration Proof
• IP67 & IP69K, Fully Sealed

The Mechan HE-Series are coded magnetic safety switches. They can be used as a standalone safety switch or combined with our SCU1 safety relay for a CAT4 SIL3 PL-e approved safety system.

The HE-Series is designed to combine the ease of use and maintenance of a simple magnetic safety switch along with the improved security, performance levels and indication of an electronic safety switch.

The fully encapsulated HE safety switches withstand vibration, wash down and most harsh environments, making them ideal for use in the food processing / filling, packing industries as well as many other non-locking machine guard applications.

Available in all the popular housings, the HE safety switches are the ideal upgrade from traditional non-coded magnetic safety switches.

Fit & Forget - Safety from Mechan


The Mechan HE-Series is a coded magnetic safety system. Comprising a slim-line Safety Control Unit and solid state safety switches coded magnetically operated, non contact safety switches.

Designed to combine the advantages of magnetic safety switches and the improved performance, security and operation of Mechan’s electronic safety switches, the HE safety switches can withstand harsh environments, (rated down to -30C and used in the Arctic circle). They can also be supplied in 316 grade stainless steel suitable for wash down areas in the food processing and packaging industry.




CONTROL MODULE

he_series_scu1_ safety_control_unit.jpg

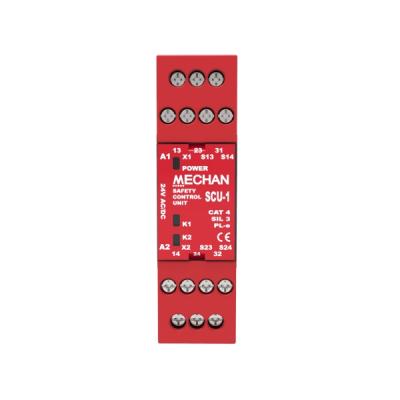

The SCU-1 is a 22.5mm wide, DIN rail mounting safety control unit, tested and approved by TUV to work with the HE-Series safety switches.

Operating voltage is 24Vac/dc the SCU-1 has 2 NO + 1 NC outputs rated at 4A/230Vac or 2A 24Vdc. With switch selectable manual or automatic reset function, and LED indication of Power and each input channel the SCU-1 is a simple control unit link into your existing safety system










SAFETY SWITCHES


The HE safety switches are fully encapsulated into a variety of shapes and sizes, in either ABS or 316 grade Stainless steel housings, helping to make installation on all types of guarding systems / applications as easy as possible. The unique HED dual switch, capable of monitoring 2 doors with one switch makes monitoring double doors even easier.

The HE safety switches have a coded magnetic input ensuring the switch cannot be overridden by a simple magnet / piece of metal / screwdriver etc and 8 – 10 mm switching distance makes the HE safety switches easy to install, tolerant to misalignment and providing a long and trouble free operating life.

Each switch has up to 2 x N/O + 1 N/C bi-directional solid state outputs. The electronic activation of all three contacts simultaneously eliminates the problem of ‘lockout’ and ensures the correct operation of the safety circuits every time.


The HE switches have built in dual colour LED indicators for easy identification of switch status and fault diagnostics.

When installed and power is applied, and the switch and actuator are within the specified operating range, the N/O Outputs will be closed, the N/C Output will be open. When the actuator moves out of the operating range, the N/O Outputs will open, the N/C Output will close.

The HE safety switches are available with a pre-wired 3 / 5 or 10 metre cable. Longer cables can be ordered if required. Some versions are available with an M12 Leaded Quick Disconnect option.

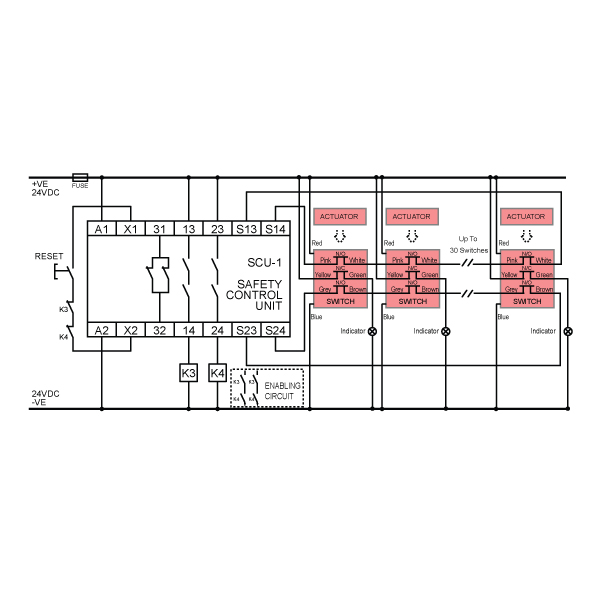

The HE safety switches have been designed to connect to the SCU-1 Safety Control Unit but can also work with other safety relay products. (Please check input specification first)






 SYSTEM INSTALLATION


File Title File Name Download File
MECHAN HE-SERIES INSTALLATION GUIDE 340-400-IDv1-3b-Mechan-SCU-HE-Install-Guide.pdf PDF (0)
Product Type Product Code Description Part No.  Quote options Added to basket
SCU1 FRONT 3D HE-Series SCU
  340.000

SCU1 Safety Control Unit 24 VDC

SCU1
Qty: - +

Get Quote

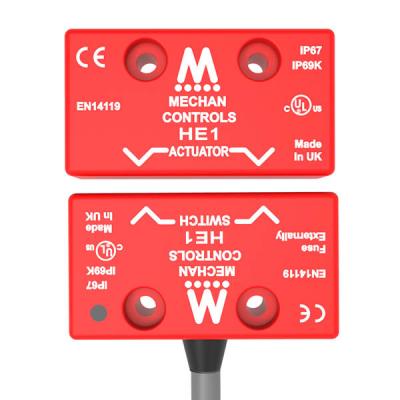

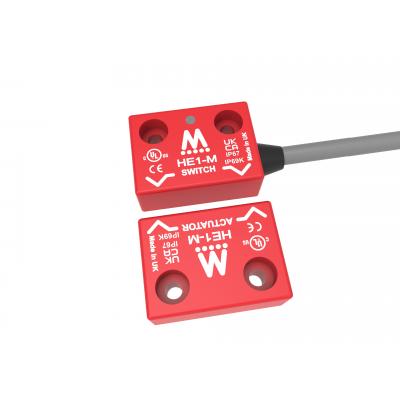

HE1 ABS FRONT V2 HE-Series HE1
  341.000

HE1 / Plastic / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE1-11-DC-03M
Qty: - +

  341.001

HE1 / Plastic / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE1-20-DC-03M
Qty: - +

  341.002

HE1 / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE1-21-DC-03M
Qty: - +

  341.010

HE1 / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE1-21-DC-06M
Qty: - +

  341.016

HE1 / Plastic / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE1-21-DC-10M
Qty: - +

  341.017

HE1 / Plastic / 2NO + 1NC / 24VDC / 20-Metre Pre-Wired (Switch and Actuator)

HE1-21-DC-20M
Qty: - +

  341.018

HE1 / Plastic / 2NO / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE1-20-DC-10M
Qty: - +

  341.019

HE1 / Plastic / 1NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE1-11-DC-10M
Qty: - +

  341.098

HE1-ACT (Actuator only)

HE1-ACT
Qty: - +

Get Quote

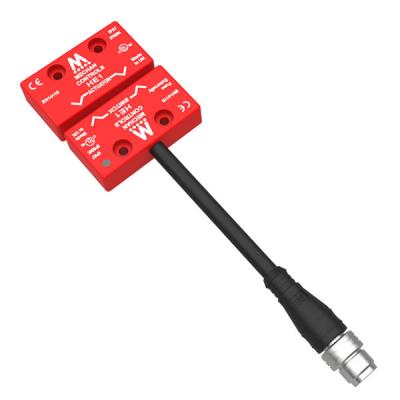

HE1 ABS LQD V2 HE-Series HE1LQD
  341.003

HE1 / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

HE1-21-DC-LQD
Qty: - +

  341.004

HE1 / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable

HE1-21-DC-LQD-5M
Qty: - +

  341.011

HE1 / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 10M Cable

HE1-21-DC-LQD-10
Qty: - +

Get Quote

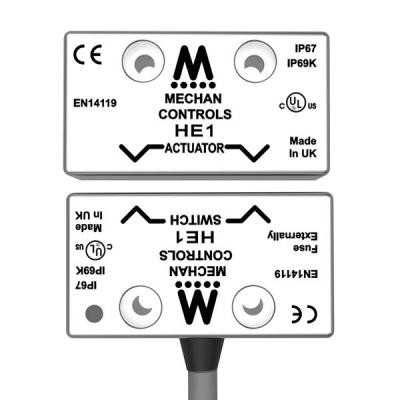

HE1 SS FRONT V2 HE-Series HE1SS
  341.005

HE1 / Stainless Steel / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE1-SS-11-DC-03M
Qty: - +

  341.006

HE1 / Stainless Steel / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE1-SS-20-DC-03M
Qty: - +

  341.007

HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE1-SS-21-DC-03M
Qty: - +

  341.012

HE1 / Stainless Steel / 1NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE1-SS-11-DC-06M
Qty: - +

  341.013

HE1 / Stainless Steel / 2NO / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE1-SS-20-DC-06M
Qty: - +

  341.014

HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE1-SS-21-DC-06M
Qty: - +

  341.015

HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE1-SS-21-DC-10M
Qty: - +

  341.099

HE1-SS-ACT (Actuator only)

HE1-SS-ACT
Qty: - +

Get Quote

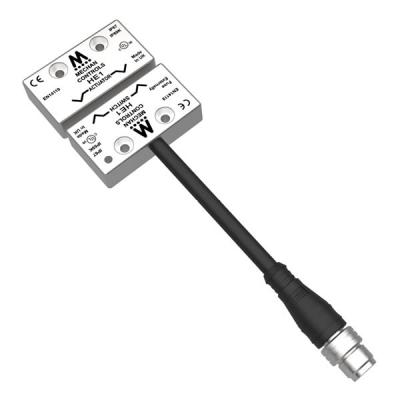

HE1 SS LQD V2 HE-Series HE1SSLQD
  341.008

HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

HE1-SS-21-DC-LQD
Qty: - +

  341.009

HE1 / Stainless Steel / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable

HE1-SS-21-DC-LQD-5M
Qty: - +

Get Quote

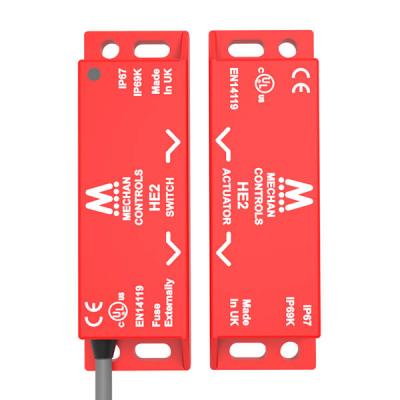

HE2 ABS FRONT V2 HE-Series HE2
  342.000

HE2 / Plastic / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE2-11-DC-03M
Qty: - +

  342.001

HE2 / Plastic / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE2-20-DC-03M
Qty: - +

  342.002

HE2 / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE2-21-DC-03M
Qty: - +

  342.011

HE2 / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE2-21-DC-06M
Qty: - +

  342.012

HE2 / Plastic / 2NO + 1NC / 24VDC / 15-Metre Pre-Wired (Switch and Actuator)

HE2-21-DC-15M
Qty: - +

  342.098

HE2-ACT (Actuator Only)

HE2-ACT
Qty: - +

Get Quote

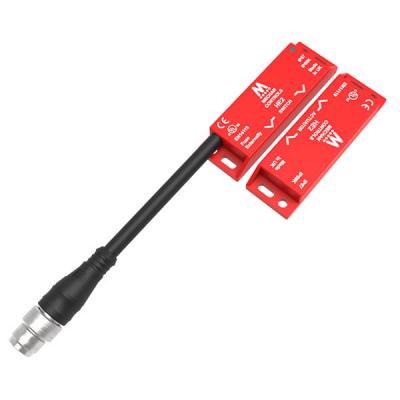

HE2 ABS LQD V2 HE-Series HE2LQD
  342.003

HE2 / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

HE2-21-DC-LQD
Qty: - +

  342.004

HE2 / Plastic / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable

HE2-21-DC-LQD-05
Qty: - +

Get Quote

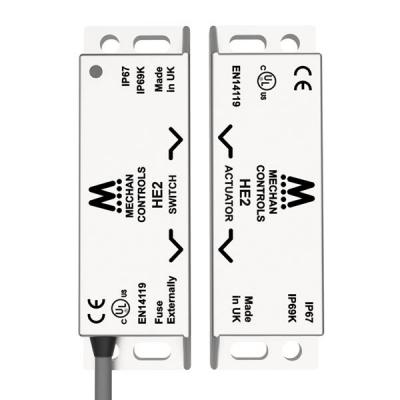

HE2 SS FRONT V2 HE-Series HE2SS
  342.005

HE2 / Stainless Steel / 1NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE2-SS-11-DC-03M
Qty: - +

  342.006

HE2 / Stainless Steel / 2NO / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE2-SS-20-DC-03M
Qty: - +

  342.007

HE2 / Stainless Steel / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE2-SS-21-DC-03M
Qty: - +

  342.010

HE2 / Stainless Steel / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE2-SS-21-DC-10M
Qty: - +

  342.099

HE2-SS-ACT (Actuator only)

HE2-SS-ACT
Qty: - +

Get Quote

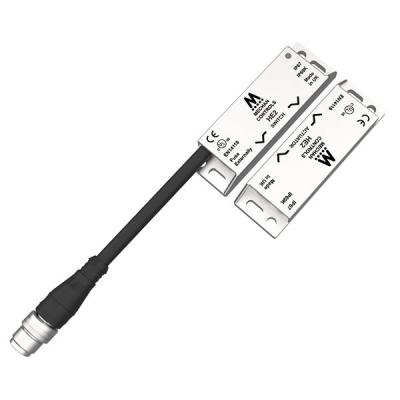

HE2 SS LQD V2 HE-Series HE2SSLQD
  342.008

HE2 / Stainless Steel / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - No Cable

HE2-SS-21-DC-LQD
Qty: - +

  342.009

HE2 / Stainless Steel / 2NO + 1NC / 24VDC / 8-Pole M12 (Switch and Actuator) - 05M Cable

HE2-SS-21-DC-LQD-5M
Qty: - +

  356.073

CABLE 8 CORE 05M 1 KEY WAY QD

8-CORE-1KEYWAY-05M-QD
Qty: - +

  356.077

CABLE 8 CORE 10M 1 KEY WAY QD

8-CORE-1KEYWAY-10M-QD
Qty: - +

Get Quote

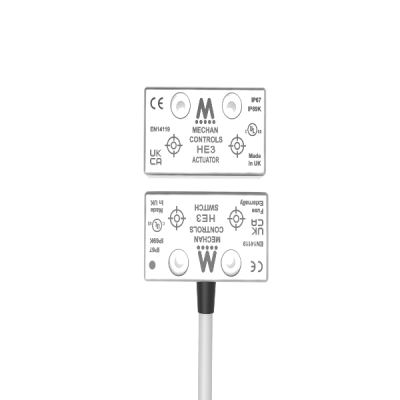

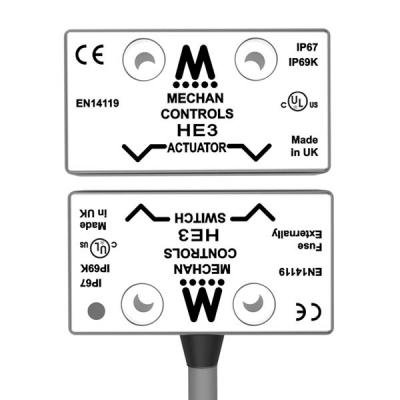

HE3 SS FRONT V2 HE-Series HE3SS
  344.000

HE3 / Stainless Steel / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE3-SS-21-DC-03M
Qty: - +

  344.001

HE3 / Stainless Steel / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE3-SS-21-DC-06M
Qty: - +

  344.002

HE3 / Stainless Steel / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE3-SS-21-DC-10M
Qty: - +

  344.098

HE3-SS-ACT (Actuator only)

HE3-SS-ACT
Qty: - +

Get Quote

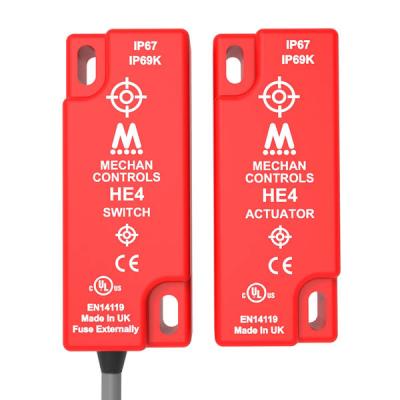

HE4 ABS FRONT V2 HE-Series HE4
  344.006

HE4 / Plastic / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE4-21-DC-03M
Qty: - +

  344.007

HE4 / Plastic / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE4-21-DC-06M
Qty: - +

  344.008

HE4 / Plastic / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE4-21-DC-10M
Qty: - +

  344.097

HE4-ACT (Actuator Only)

HE4-ACT
Qty: - +

Get Quote

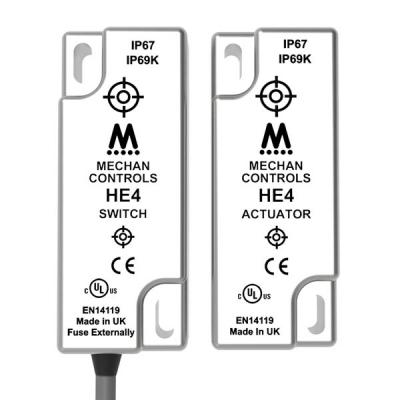

HE4 SS FRONT V2 HE-Series HE4SS
  344.003

HE4 / Stainless Steel / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE4-SS-21-DC-03M
Qty: - +

  344.004

HE4 / Stainless Steel / 2NO + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator)

HE4-SS-21-DC-06M
Qty: - +

  344.005

HE4 / Stainless Steel / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HE4-SS-21-DC-10M
Qty: - +

  344.099

HE4-SS-ACT (Actuator only)

HE4-SS-ACT
Qty: - +

Get Quote

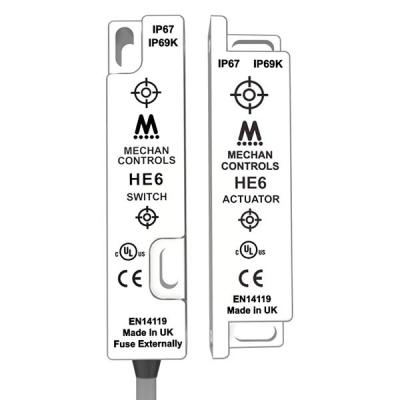

HE6 SS FRONT V2 HE-Series HE6SS
  346.000

HE6 / Stainless Steel / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HE6-SS-21-DC-03M
Qty: - +

  346.001

HE6 / Stainless Steel / 2NO + 1NC / 24VDC / 04-Metre Pre-Wired (Switch and Actuator)

HE6-SS-21-DC-04M
Qty: - +

  346.003

HE6-SS-11-DC-LQD-05M SWITCH AND ACTUATOR (05M QD CABLE)

HE6-SS-11-DC-LQD-05M
Qty: - +

  346.099

HE6-SS-ACT (Actuator only)

HE6-SS-ACT
Qty: - +

  346.002

HE6-SS-11-DC-LQD SWITCH AND ACTUATOR (NO CABLE)

HE6-SS-11-DC-LQD (NC)
Qty: - +

Get Quote

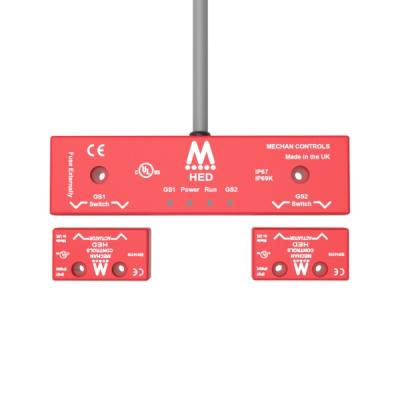

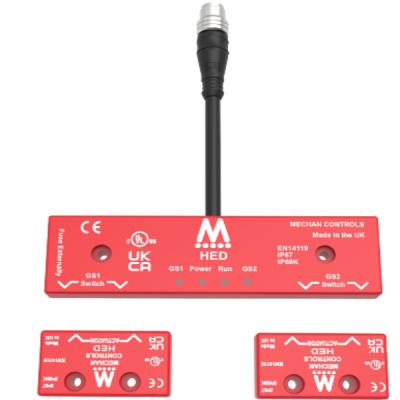

HED C HE-Series HED
  343.000

HED / Plastic / 2NO + 1NC / 24VDC / 03-Metre (Switch and 2 Actuators) - Centre

HED-21-DC-03M-C
Qty: - +

  343.001

HED / Plastic / 2NO + 1NC / 24VDC / 06-Metre (Switch and 2 Actuators) - Centre

HED-21-DC-06M-C
Qty: - +

  343.002

HED / Plastic / 2NO + 1NC / 24VDC / 10-Metre (Switch and 2 Actuators) - Centre

HED-21-DC-10M-C
Qty: - +

  343.003

HED / Plastic / 2NO + 1NC / 24VDC / M12 LQD (Switch and 2 Actuators) - Centre

HED-21-DC-LQD-C
Qty: - +

  343.006

HED / Plastic / 2NO + 1NC / 24VDC / 03-Metre (Switch and 2 Actuators) - Left

HED-21-DC-03M-L
Qty: - +

  343.007

HED / Plastic / 2NO + 1NC / 24VDC / 06-Metre (Switch and 2 Actuators) - Left

HED-21-DC-06M-L
Qty: - +

  343.008

HED / Plastic / 2NO + 1NC / 24VDC / 10-Metre (Switch and 2 Actuators) - Left

HED-21-DC-10M-L
Qty: - +

  343.012

HED / Plastic / 2NO + 1NC / 24VDC / 03-Metre (Switch and 2 Actuators) - Right

HED-21-DC-03M-R
Qty: - +

  343.013

HED / Plastic / 2NO + 1NC / 24VDC / 06-Metre (Switch and 2 Actuators) - Right

HED-21-DC-06M-R
Qty: - +

  343.014

HED / Plastic / 2NO + 1NC / 24VDC / 10-Metre (Switch and 2 Actuators) - Right

HED-21-DC-10M-R
Qty: - +

  343.099

HED-ACT (Actuator Only)

HED-ACT
Qty: - +

Get Quote

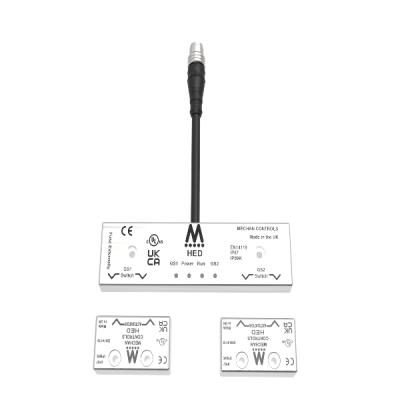

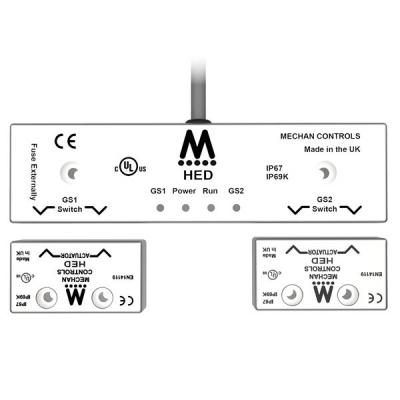

HED SS V2 HE-Series HED-SS
  343.004 HED-21-DC-LQD-05M-C SAFETY SWITCH & 2 ACTUATORS HED-21-DC-LQD-05M-C
Qty: - +

  343.005 HED-21-DC-LQD-10M-C SAFETY SWITCH & 2 ACTUATORS HED-21-DC-LQD-10M-C
Qty: - +

  343.009 HED-21-DC-LQD-L SAFETY SWITCH & 2 ACTUATORS (No Cable) HED-21-DC-LQD-L
Qty: - +

Get Quote

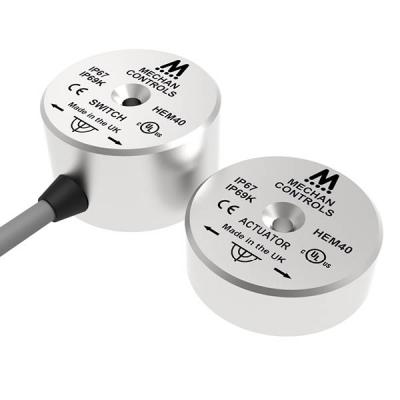

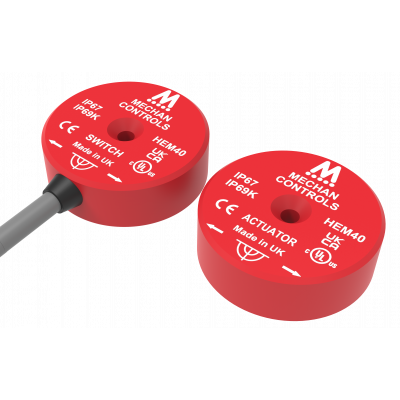

HEM40 SS SIDE V2 HE-Series HEM40
  347.000

HEM40 / Stainless Steel / 2NO + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator)

HEM40-SS-21-DC-06M
Qty: - +

  347.001

HEM40 / Stainless Steel / 2NO + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator)

HEM40-SS-21-DC-10M
Qty: - +

Get Quote
