CE Approved

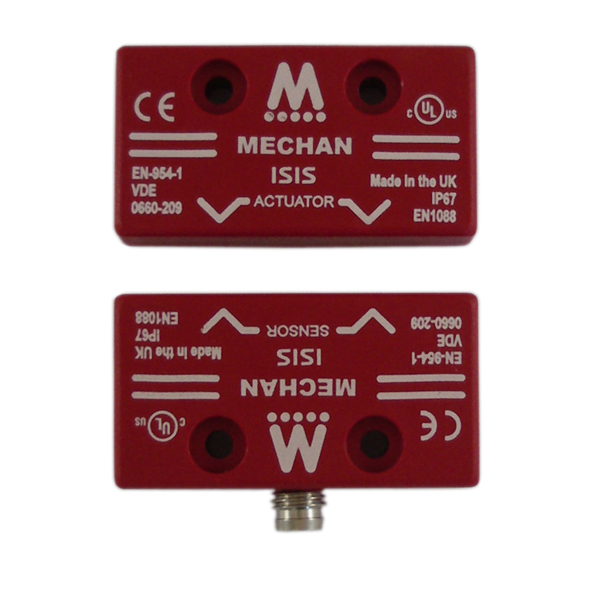

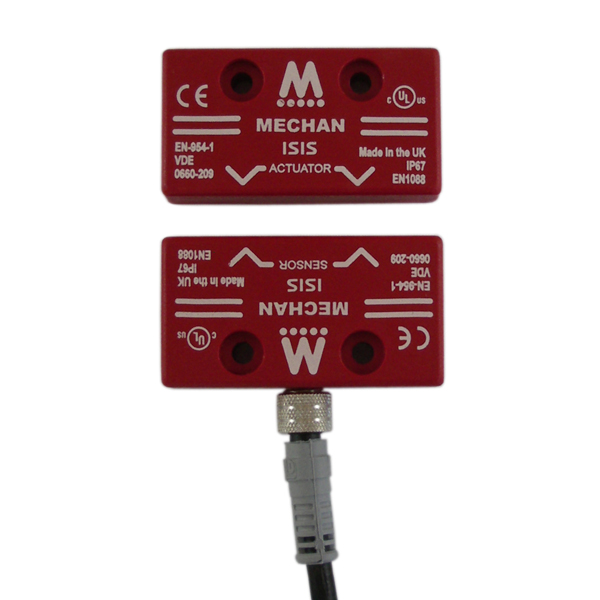

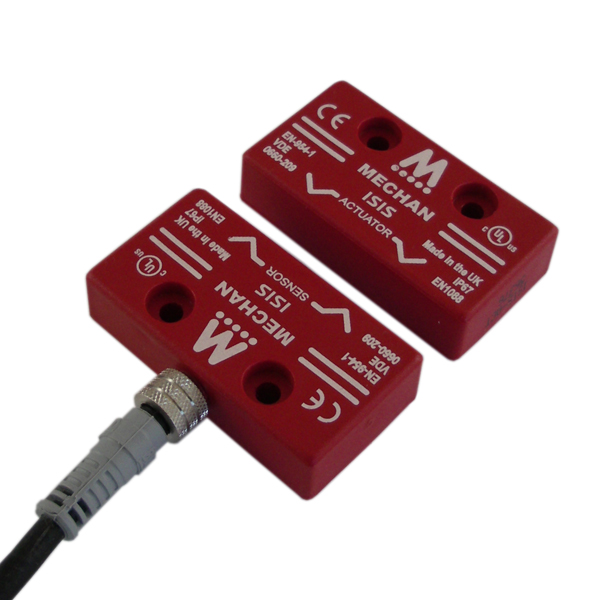

•   Coded Magnetic Safety Switch
•   ABS Housing
•   Fully Encapsulated, IP67
•   M8 Quick Disconnect, 5 or 10 metre cables

The ISIS safety switches are non-contact, tamper resistant safety switches. Resin encapsulated into an ABS housings, providing environmental protection to IP67, The switches can withstand most conditions including: water, dust and high pressure hose cleaning.

The 2-wire connection to each safety switch is monitored by the control unit, detecting both open and short circuit faults immediately and returning the control unit to the off state even if the gate is not operated.



Product Code Description Part No. Quote options Added to Basket
372.020 ISIS-QD-05M ISIS QUICK DISCONNECT C/W 5M CABLE ISIS-QD-05M
Qty: - +

372.021 ISIS-QD-15M ISIS QUICK DISCONNECT C/W 15M CABLE ISIS-QD-15M
Qty: - +

372.026 ISIS-QD ISIS QUICK DISCONNECT SAFETY SWITCH ISIS-QD(NC)
Qty: - +

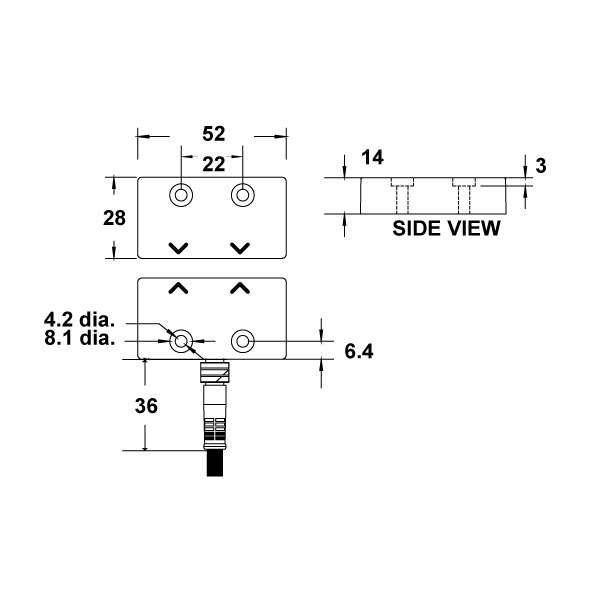

DIMENSIONS (MM)

Dimensions in millimetres

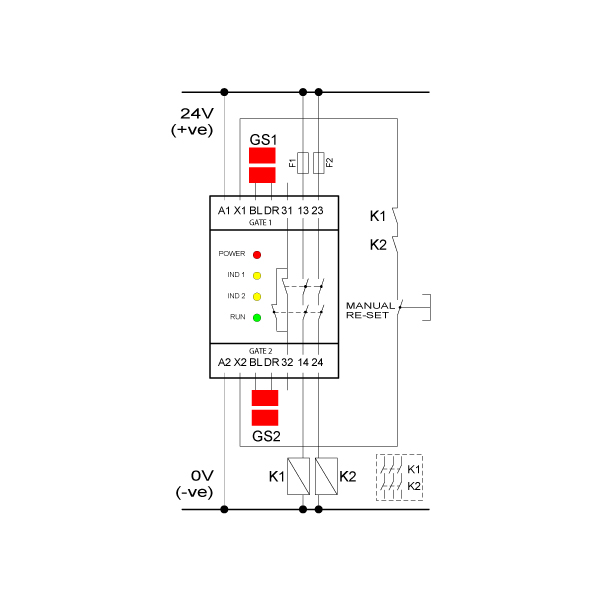

Connection drawing 1

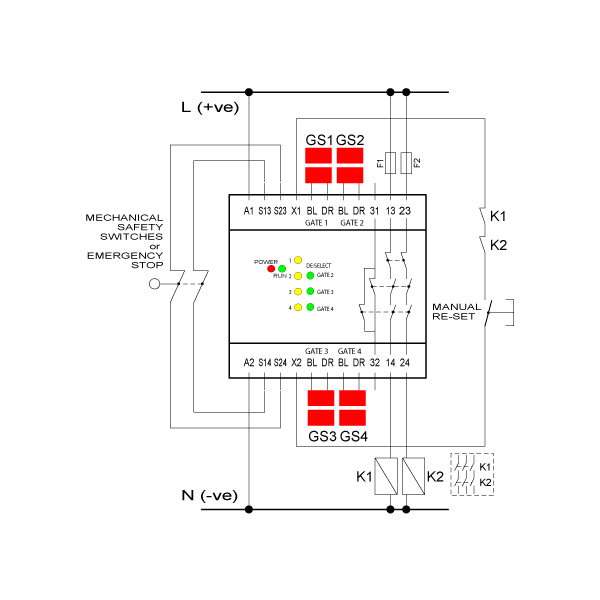

Connection drawing 2

Technical Specifications
Reset Options AT CONTROL UNIT
Construction Red ABS, Resin Filled
Indication AT CONTROL UNIT
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Cable / Connector Quick disconnect
Cable Length 5 or 15 metre
Coding Coded magnetic, SINGLE CODE
Dimensions of Switch (mm) 52 x 28 x 14mm
Dimensions of Actuator (mm) 52 x 28 x 14mm
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 3
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 3.37 x 10-8
PFH 5.63 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 Years
DC 99%
SFF 99.40%
Notes

As part of an ISIS System

File Title File Name Download File
370 400 Iss16 ISIS Installation Guide 370-400-Iss16-ISIS-Installation-Guide.pdf PDF (1011 KB)
