MS6

MS6 MS6 MS6

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    1NO, 1NO + 1NC, 2NO, 2NO + 1NC (with door open)
Contact Rating:
    2A 230VAC / 3.5A 110VAC / 1A 24VDC
Connection Type:
    Pre-Wired Cable, 2, 4, 6 cores
Operating Distance:
    10mm ON / 28mm OFF
Ingress Protection Rating:
    IP67 and IP69K

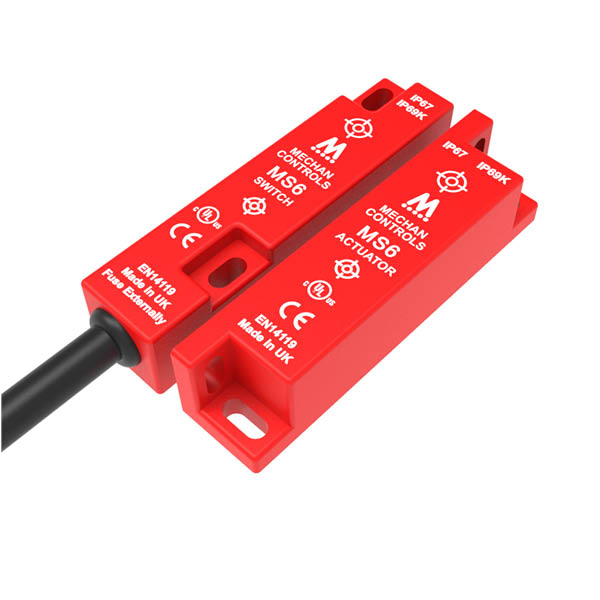

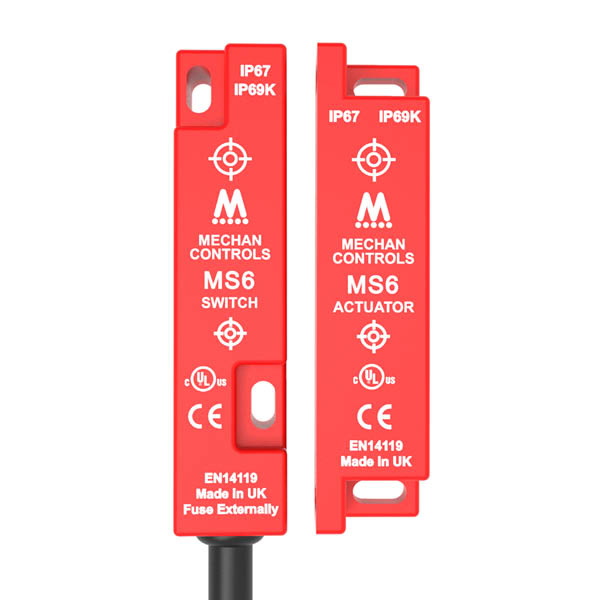

The MAGNASAFE MS6 non-contact safety switches are an industry standard, slim-line, space saving design. Encapsulated into red ABS stainless steel housings, the MS6 safety switches are easy to install, tolerant to misalignment. The non-contact operation has a 10 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
356.000 MS6 / Plastic / 1NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-10-DC-03M
Qty: - +

356.001 MS6 / Plastic / 1NO / DC / 06-Metre Pre-Wired (Switch and Actuator) MS6-10-DC-06M
Qty: - +

356.034 MS6 / Plastic / 1NO / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-10-DC-10M
Qty: - +

356.002 MS6 / Plastic / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-11-DC-03M
Qty: - +

356.003 MS6 / Plastic / 1NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator) MS6-11-DC-06M
Qty: - +

356.004 MS6 / Plastic / 2NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-20-DC-03M
Qty: - +

356.005 MS6 / Plastic / 2NO / DC / 06-Metre Pre-Wired (Switch and Actuator) MS6-20-DC-06M
Qty: - +

356.035 MS6 / Plastic / 2NO / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-20-DC-10M
Qty: - +

356.006 MS6 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS6-21-DC-03M
Qty: - +

356.007 MS6 / Plastic / 2NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator) MS6-21-DC-06M
Qty: - +

356.033 MS6 / Plastic / 2NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS6-21-DC-10M
Qty: - +

356.008 MS6 / Plastic / 1NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS6-10-AC-03M
Qty: - +

356.009 MS6 / Plastic / 1NO / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS6-10-AC-06M
Qty: - +

356.032 MS6 / Plastic / 1NO / 110AC / 03-Metre Pre-Wired (Switch and Actuator) MS6-10-110AC-03M
Qty: - +

356.036 MS6 / Plastic / 1NO / 110AC / 06-Metre Pre-Wired (Switch and Actuator) MS6-10-110AC-06M
Qty: - +

356.010 MS6 / Plastic / 1NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS6-11-AC-03M
Qty: - +

356.011 MS6 / Plastic / 1NO + 1NC / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS6-11-AC-06M
Qty: - +

356.012 MS6 / Plastic / 2NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS6-20-AC-03M
Qty: - +

356.013 MS6 / Plastic / 2NO / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS6-20-AC-06M
Qty: - +

356.014 MS6 / Plastic / 2NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS6-21-AC-03M
Qty: - +

356.015 MS6 / Plastic / 2NO + 1NC / 230AC / 06-Metre Pre-Wired (Switch and Actuator) MS6-21-AC-06M
Qty: - +

356.098 MS6-ACT (ACTUATOR ONLY) MS6-ACT
Qty: - +


Download Step Drawing MS6-PLASTIC-Switch-pre-wired.STEP Download Step Drawing MS6-PLASTIC-Actuator.STEP

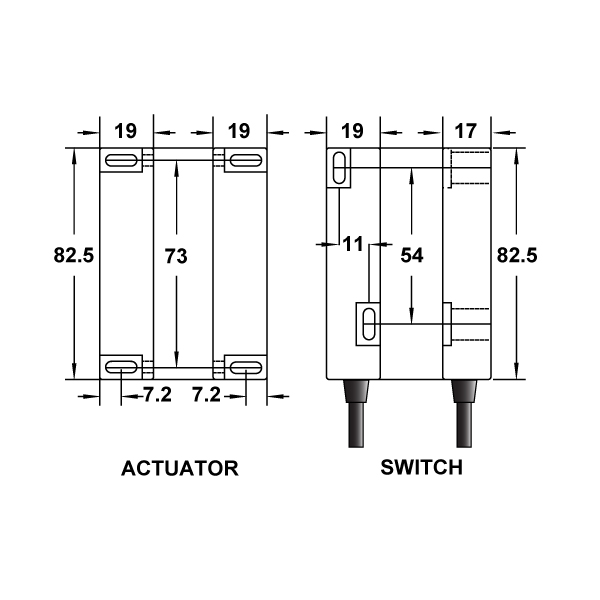

DIMENSIONS (MM)

Dimensions in millimetres

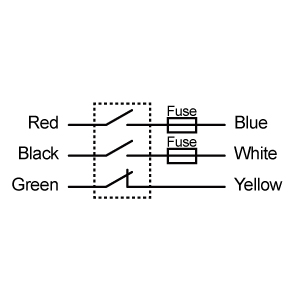

2 Normally Open Contacts + 1 Normally Closed Contact

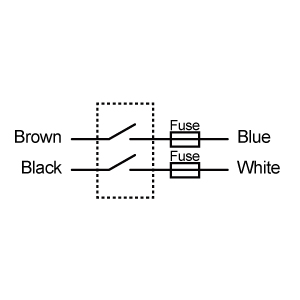

2 Normally Open Contacts

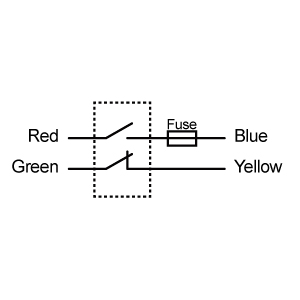

1 Normally Open Contact + 1 Normally Closed Contact

1 Normally Open Contact

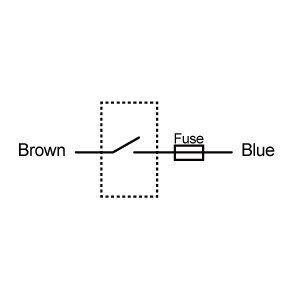

1 Normally Open Contact, 110Vac

Technical Specifications
Construction Red ABS, Resin Filled
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps, 110Vac / 3.5Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 82.5 x 19 x 17mm
Dimensions of Actuator (mm) 82.5 x 19 x 19mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 402 Iss19 MECHAN MS6 MS21 Installation Guide 350-402-Iss19-MECHAN-MS6-MS21-Installation-Guide.pdf PDF (1.2 MB)
MS6-PLASTIC-SWITCH-PRE-WIRED-3D MS6-PLASTIC-Switch-pre-wired.STEP STEP (206 KB)
MS6-PLASTIC-ACTUATOR-3D MS6-PLASTIC-Actuator.STEP STEP (127 KB)
