FLI

FLI FLI FLI FLI

Approvals

CE Approved

•   One Mechan safety switch input
•   Monitored limited inch button input
•  2, 4 or 5 second versions
•   LED and volt free contact indication
•   35mm DIN rail mounting
•   17.5 mm wide

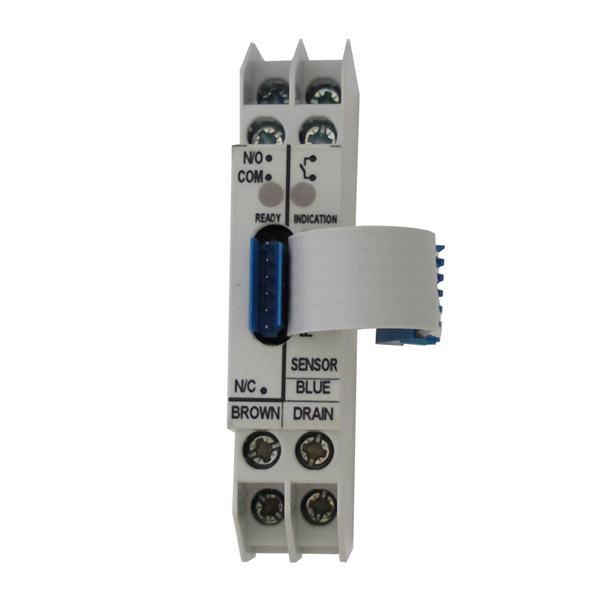

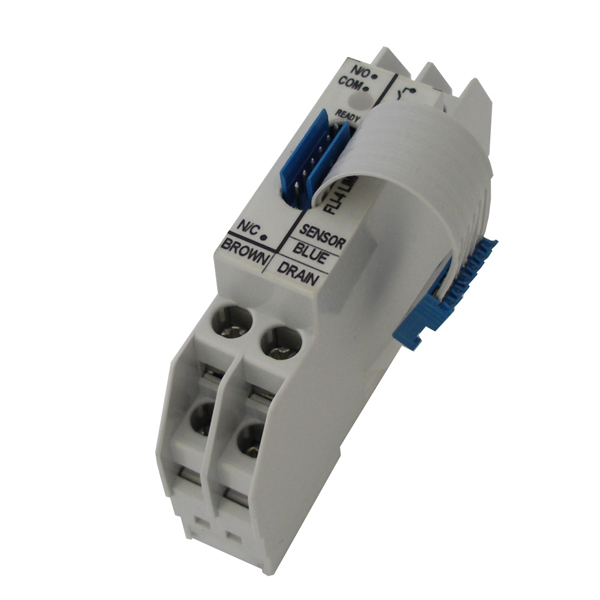

The FLI extender module provides the option of using a limited inch button control (not supplied) to override one Mechan safety switch in an F Series safety system for a pre-set maximum time. Simple connection via a built in 6-way strap to the adjacent F Series module, the FLI has the input for 1 Mechan safety switch and  connections for the limited inch button. When fitted correctly the button can override the Mechan switch, connected to the FLI, for up to the maximum time allowed. Releasing the button or reaching the maximum allowed time re-activates the switch.

Product Code Description Part No. Quote options Added to Basket
330.000 FLI-2 F-SERIES LIMITED INCH FLI-2
Qty: - +

330.001 FLI-4 F-SERIES LIMITED INCH FLI-4
Qty: - +

330.002 FLI-5 F-SERIES LIMITED INCH FLI-5
Qty: - +

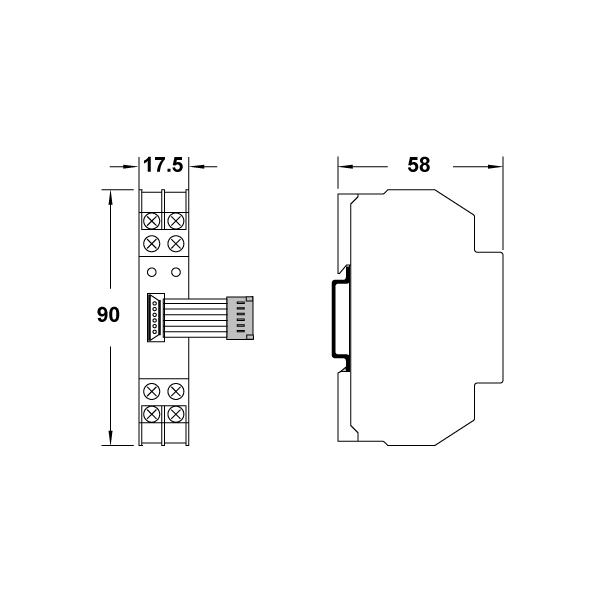

Dimensions (mm)

Dimensions in millimetres

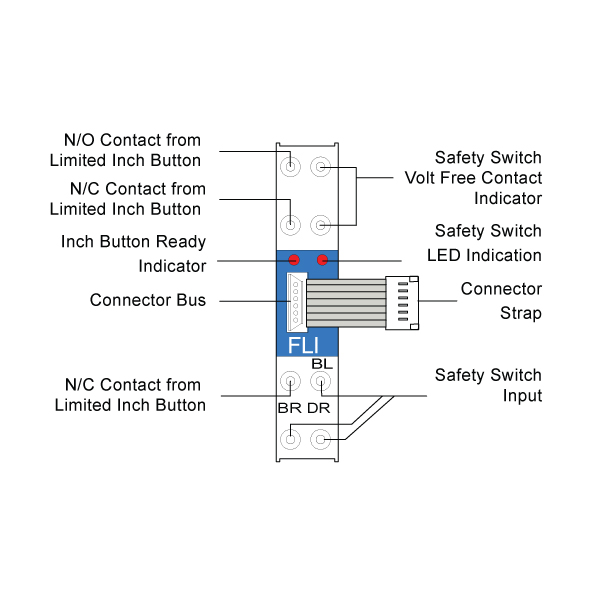

Limited Inch Layout

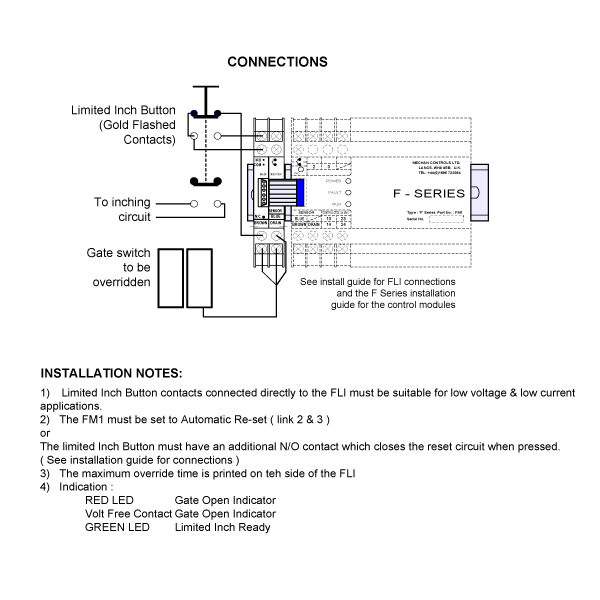

Connection Drawing 1

Technical Specifications
Construction Grey PC-GF
Indication Guard Status LED and Volt Free Contact
IP Rating Housing IP30, Terminals IP20
Mounting 35mm DIN Rail
Power Consumption na
Cable / Connector Screw Terminals
Coding Electronic, Generic code
Input 1 Electronic Safety Switch + 2 Hand Override
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 na
PFH na
B10d na
MTTFd na
TM na
DC na
SFF na
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss5 Mechan F Series Install Guide 327-400-ID-Iss5-Mechan-F-Series-Install-Guide.pdf PDF (949 KB)
