MS8SSQD

MS8SSQD MS8SSQD MS8SSQD

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:

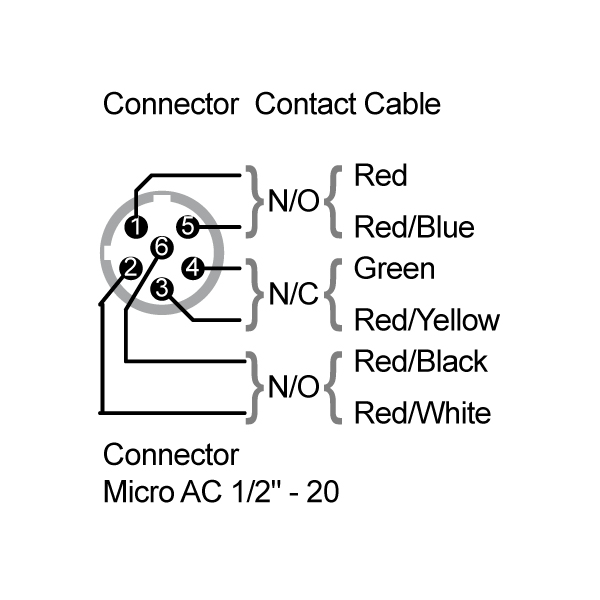

    M12, 6-Pole
Operating Distance:
    25mm ON / 35mm OFF
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

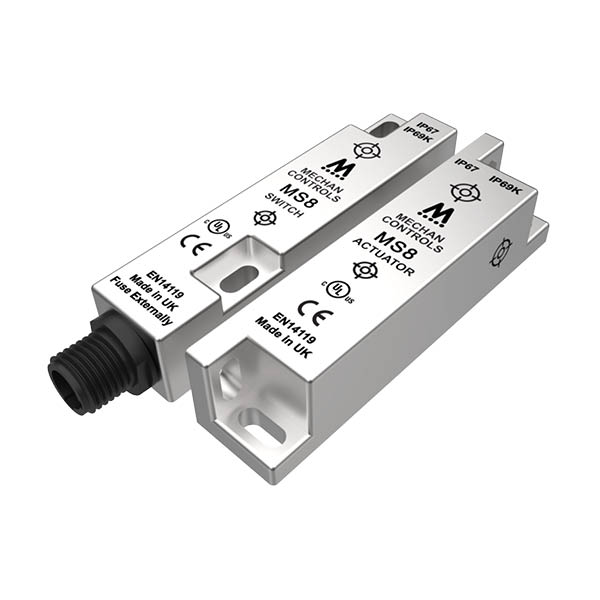

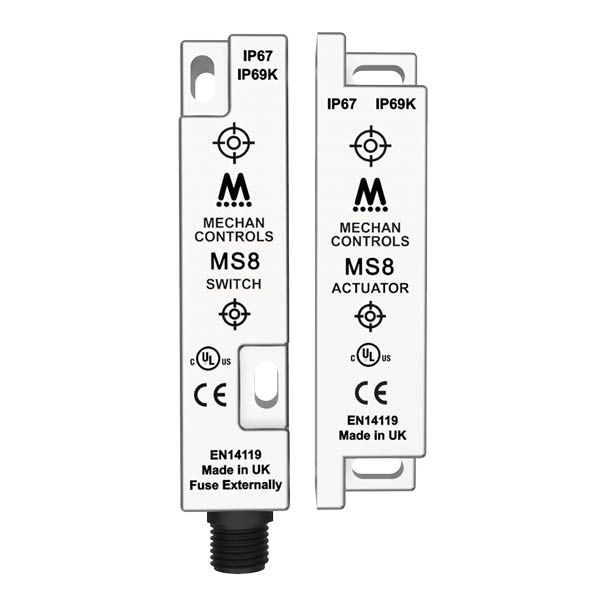

The MAGNASAFE MS8-SS-QD non-contact safety switches are an industry standard, slim-line, space saving housing made from 316 Grade Stainless Steel. Fully Encapsulated, the MS8 safety switches have been designed with a larger than standard switching distance to ensure easy to install, tolerant to misalignment. The non-contact operation has a 15 - 25 mm switching distance helping to ensure a long and trouble free operating life where guarding alignment is an issue.  The QD version has 150mm connecting cable with M12, 6 pole connector, and can be supplied with 5 or 10 metre matching cable.

Product Code Description Part No. Quote options Added to Basket
358.002 MS8 / Stainless Steel / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS8-SS-21-DC-QD
Qty: - +

360.004 CABLE 6 CORE 05M 2 KEY WAY QD 6-CORE-2KEYWAY-05M-QD
Qty: - +

360.012 CABLE 6 CORE 10M 2 KEY WAY QD 6-CORE-2KEYWAY-10M-QD
Qty: - +

Get Quote
Technical Specifications
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 400mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Quick disconnect
Cable Length 5 or 10 metre
Coding None

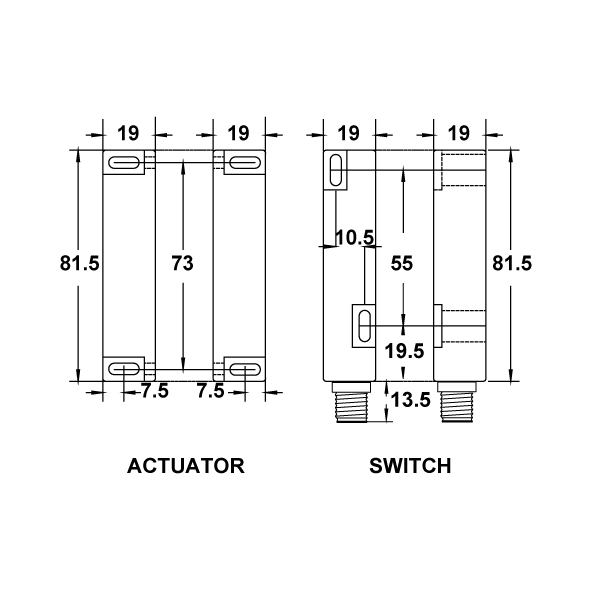

Dimensions of Switch (mm) 81.5 x 19 x 19mm
Dimensions of Actuator (mm) 81.5 x 19 x 19mm
Weight na
IP Rating IP67
Construction 316 Grade Stainless Steel
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

1)
Based on dual channel wiring according to CAT 3. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
