FM7

FM7 FM7 FM7

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   80mm euro standard housing

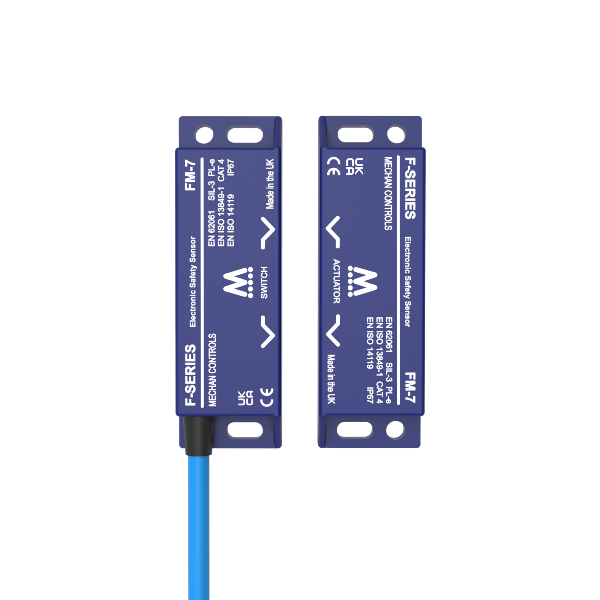

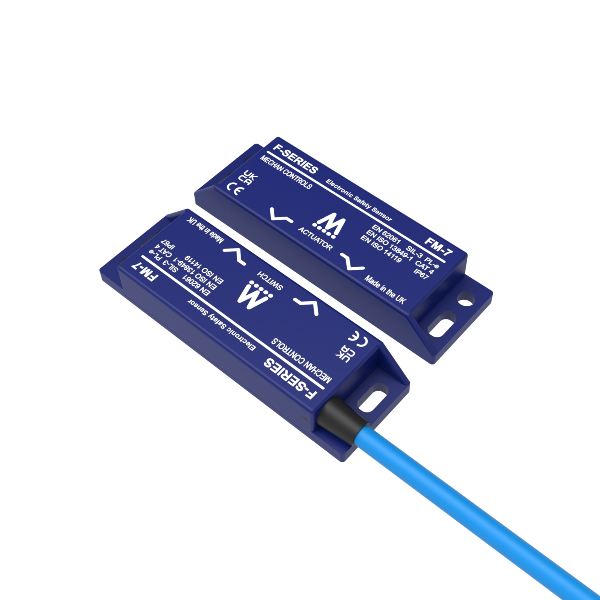

The FM7 electronic safety switches have the same Mechan electronic safety switching, fully encapsulated into industry standard euro 80mm, blue ABS housings. Designed to make it even easier to upgrade from older magnetic safety switches to higher performance electronic switches, the FM7 can replace many standard safety switches without the need to change mounting brackets or fixing holes.

Product Code Description Part No. Quote options Added to Basket
310.002 FM7-5M F TYPE SAFETY SWITCH FM7-05M
Qty: - +

310.003 FM7-10M F TYPE SAFETY SWITCH FM7-10M
Qty: - +

310.004 FM7-15M F TYPE SAFETY SWITCH FM7-15M
Qty: - +


Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Switch (mm) 78 x 27.2 x 13.5mm
Dimensions of Actuator (mm) 78 x 27.2 x 13.5mm
Environmental Specifications
Operating Temperature -20°C to 50°C
Storage Temperature -20°C to 50°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system
