OSSG-LQD

OSSG-LQD

Approvals

CE Approved

Housing:
    Yellow ABS, Resin Encapsulated
Contacts:
    2 OSSD + 1NC (with door open)
Contact Rating:
    2Amp - 24VDC
Coding:
    Uniquely Coded, RFID
Indication:
    Dual RGB (Advanced Diagnostics)
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

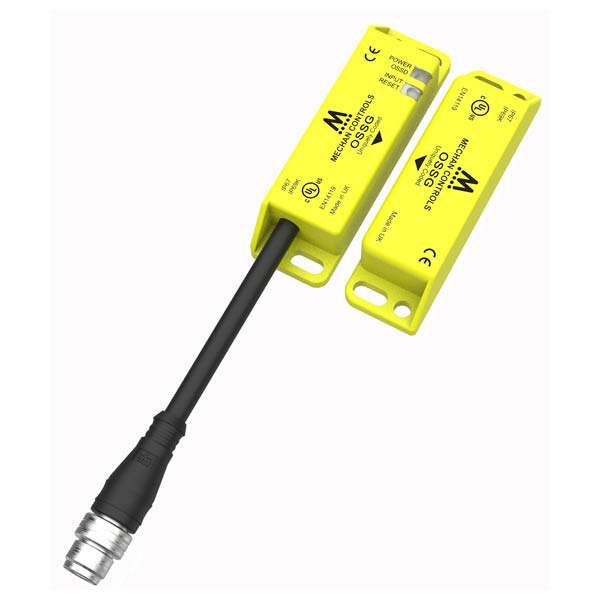

OSSG are standalone, non-contact RFID safety switches. With 2 OSSD safety outputs and 1NC contact, capable of switching 2A at 24Vdc. The uniquely coded RFID has a possible 4 billion code combinations and the OSSD outputs are suitable for series connection up to 30off, maintaining PL-e.

The OSSG includes dual RGB LEDs for advanced on-switch diagnostics and the overhanging design improves visibility in awkward mounting positions. The OSSG safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

The O-Type switches can be used with a fea­ture called EDM (external device monitor­ing). This means you can monitor the state of contactors or safety relays in order to detect failure of the external device eliminating the need for a safety monitoring device.

Product Code Description Part No. Quote options Added to Basket
365.024 OSSG / 2 OSSD (OUTPUT ONLY) + 1NC / 24VDC / 5-PIN M12 (Switch and Actuator) ODNK-21-DC-5LQD
Qty: - +

365.025 OSSG / 2 OSSD + 1NC / 24VDC / 8-PIN M12 (Switch and Actuator) ODNK-21-DC-8LQD
Qty: - +

365.026 OSSG / 2 OSSD + 1NC / EDM / 24VDC / 12-PIN M12 (Switch and Actuator) ODNK-21-DC-EDM-12LQD
Qty: - +

Technical Specifications
Reset Options External Device Monitoring
Construction Yellow ABS
Indication Dual RGB LEDs
IP Rating IP67 / (IP69K: Pre-Wired Only)
Mounting 4 x M4 Security Screws
Supply Voltage Options 24VDC (+/- 15%)
Power Consumption 550mA (With all Outputs at max. Power)
Safety Output 2 OSSD
Safety Output Rating 2 A, max.; Status ON (+24V DC) - Door Closed
Auxilliary Output 1 N/C (with door open)
Auxilliary Output Rating 2 A, max.; Status ON (+24V DC) - Door Open
Cable / Connector 5-PIN / 8-PIN / 12-PIN M12
Cable Length 150mm
Coding Uniquely Coded RFID
Dimensions of Switch (mm) See Technical Drawings Tab
Dimensions of Actuator (mm) See Technical Drawings Tab
Environmental Specifications
Operating Temperature -10°C to +60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 E
SIL CL in accordance with EN IEC 62061 3
PFHd in accordance with EN IEC 62061 1.12 x 10-9
PFH 1.1 x 15-9
B10d 10,000,000
MTTFd High > 385 Years (Based on usage rate of 360 Days/
TM >100 Years
DC 99%
SFF 99.5%
File Title File Name Download File
365 400 O Type Installation Guide Iss8 365-400-O-Type-Installation-Guide-Iss8.pdf PDF (2.9 MB)
