MS21SSQD

MS21SSQD MS21SSQD

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
     2Amp 230VAC / 1Amp 24VDC
Connection Type:
    M12, 6-Pole
Operating Distance:
     8mm ON / 28mm OFF
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

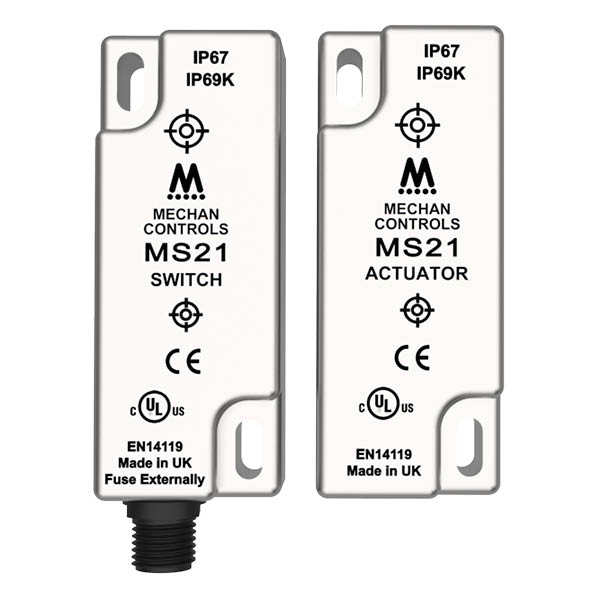

The MAGNASAFE MS21 safety switches are fully encapsulated into a 316 Grade Stainless Steel wide bodied housing. The MS21 safety switches are easy to install, tolerant to misalignment and the non-contact operation has a 8mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
359.089 MS21 / Stainless Steel / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS21-SS-21-DC-QD
Qty: - +

360.004 CABLE 6 CORE 05M 2 KEY WAY QD 6-CORE-2KEYWAY-05M-QD
Qty: - +

360.012 CABLE 6 CORE 10M 2 KEY WAY QD 6-CORE-2KEYWAY-10M-QD
Qty: - +

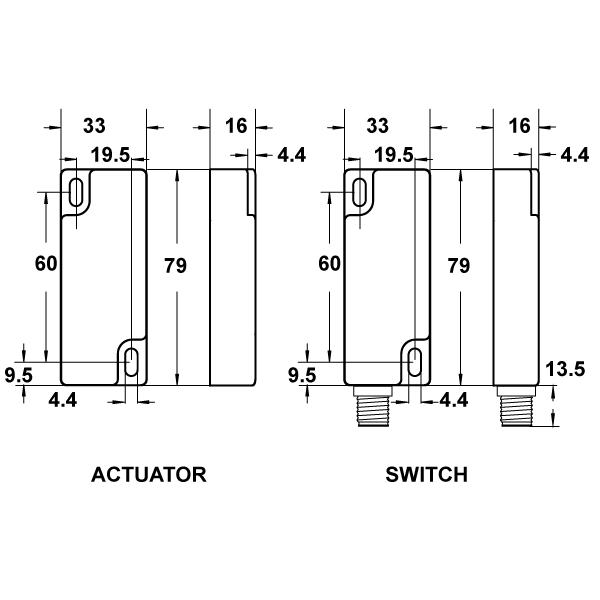

Dimensions ( mm )

Dimensions in millimetres

2 Normally Open Contacts + 1 Normally Closed

Technical Specifications
Construction 316 Grade Stainless Steel
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Quick disconnect
Cable Length 5 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 79 x 33 x 16mm
Dimensions of Actuator (mm) 79 x 33 x 16mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 402 Iss19 MECHAN MS6 MS21 Installation Guide 350-402-Iss19-MECHAN-MS6-MS21-Installation-Guide.pdf PDF (1.2 MB)
