MS5LQD

MS5LQD MS5LQD

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    2NO, 2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    M12, 4-Pole / 6-Pole
Operating Distance:
    7mm ON / 17mm OFF
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

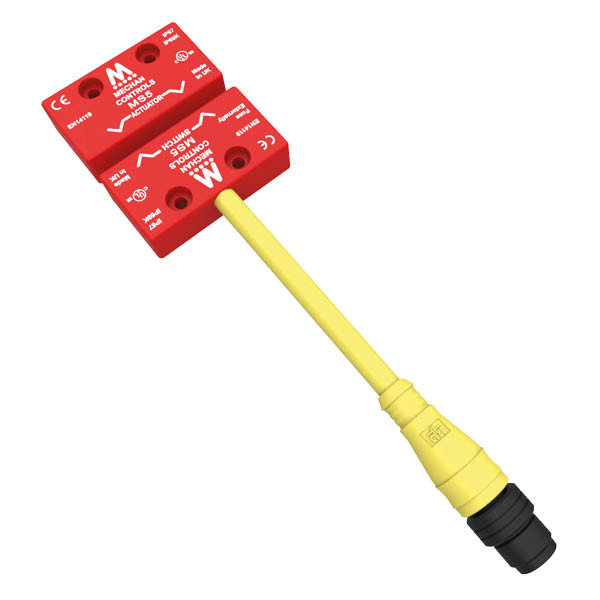

The MAGNASAFE MS5 LQD are compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into red ABS housings, the MS5 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 7 – 17 mm switching distance helping to ensure a long and trouble free operating life. The LQD version has 150mm connecting cable with M12, 6 pole connector, and can be supplied with 5 or 10 metre matching cable.

Product Code Description Part No. Quote options Added to Basket
354.056 MS5 / Plastic / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS5-21-DC-LQD
Qty: - +

354.064 MS5 / Plastic / 2NO / DC / 4-Pole M12 (Switch and Actuator) - No Cable MS5-20-DC-LQD
Qty: - +

360.004 5 METRE, 6 CORE CABLE FOR 354.056 6-CORE-2KEYWAY-05M-QD
Qty: - +

360.012 10 METRE, 6 CORE CABLE FOR 354.056 6-CORE-2KEYWAY-10M-QD
Qty: - +

356.071 5 METRE, 4 CORE CABLE FOR 354.064 4-CORE-1KEYWAY-05M-QD
Qty: - +

356.072 10 METRE, 4 CORE CABLE FOR 354.064 4-CORE-1KEYWAY-10M-QD
Qty: - +

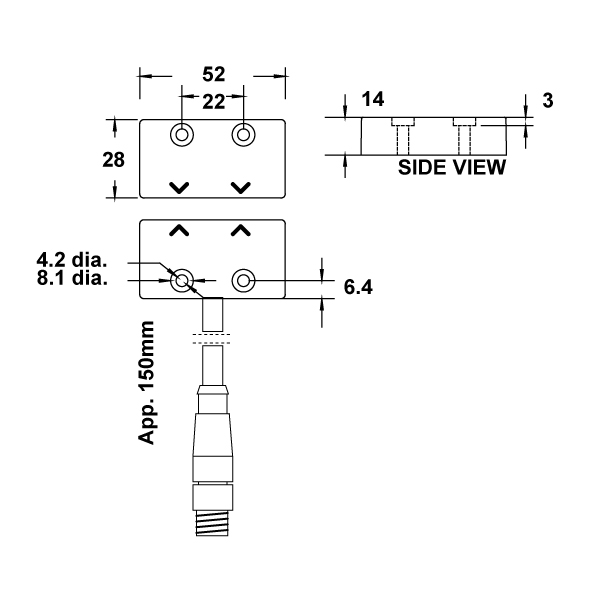

DIMENSIONS (MM)

Dimensions in millimetres

Leaded Quick Disconnect : 2 Normally Open + 1 Normally Closed

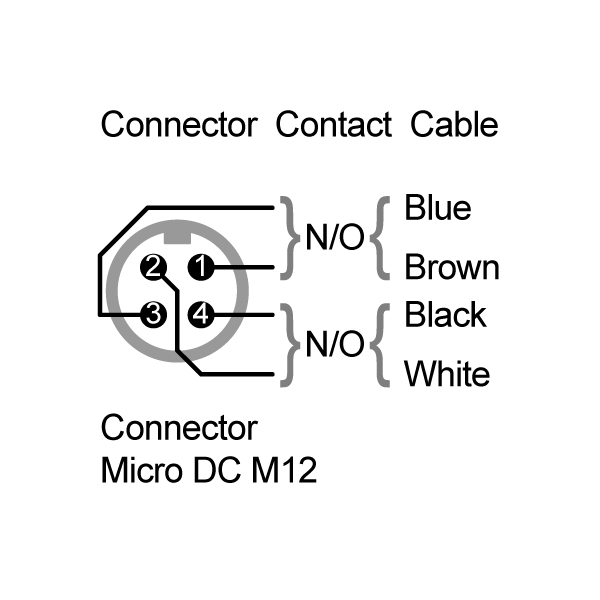

Leaded Quick Disconnect : 2 Normally Open

Technical Specifications
Construction Red ABS, Resin Filled
Indication 1 x Volt Free Contact
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 300mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Leaded Quick Disconnect
Cable Length 5 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 52 x 28 x 14mm
Dimensions of Actuator (mm) 52 x 28 x 14mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 401 Iss16 MECHAN MS5 MS7 Installation Guide 350-401-Iss16-MECHAN-MS5-MS7-Installation-Guide.pdf PDF (1.2 MB)
