MS5SSLQD

MS5SSLQD MS5SSLQD

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:

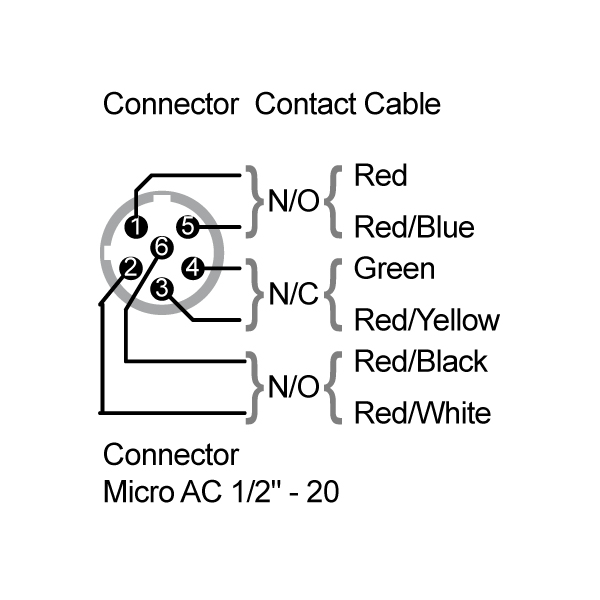

    2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    M12, 6-Pole
Operating Distance:
    7mm ON / 17mm OFF
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

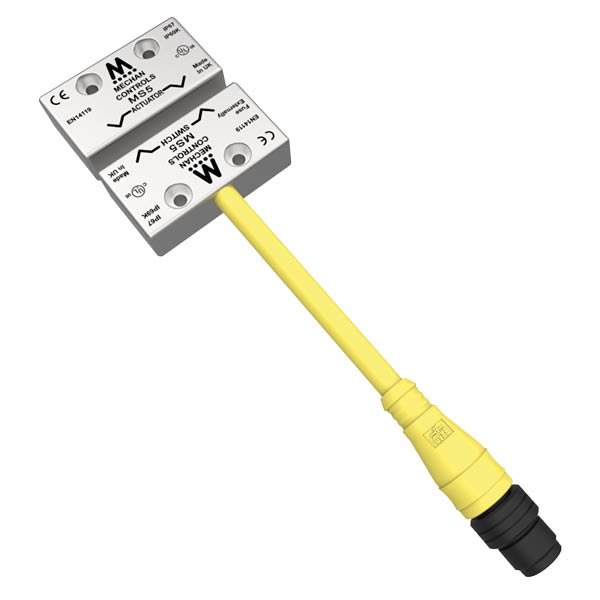

The MAGNASAFE MS5 SS LQD are compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into 316 grade stainless steel housings, the MS5 safety switches are easy to install, tolerant to misalignment. The non-contact operation has an 7 – 17 mm switching distance helping to ensure a long and trouble free operating life. The LQD version has 150mm connecting cable with M12, 6 pole connector, and can be supplied with 5 or 10 metre matching cable.

Product Code Description Part No. Quote options Added to Basket
354.052 MS5 / Stainless steel / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - no cable MS5-SS-21-DC-LQD
Qty: - +

354.076 MS5 / Stainless steel / 2NO + 1NC / DC / 6-Pole M12 (Switch only) - no cable MS5-SS-21-DC-LQD
Qty: - +

360.004 CABLE 6 CORE 05M 2 KEY WAY QD 6-CORE-2KEYWAY-05M-QD
Qty: - +

360.012 CABLE 6 CORE 10M 2 KEY WAY QD 6-CORE-2KEYWAY-10M-QD
Qty: - +

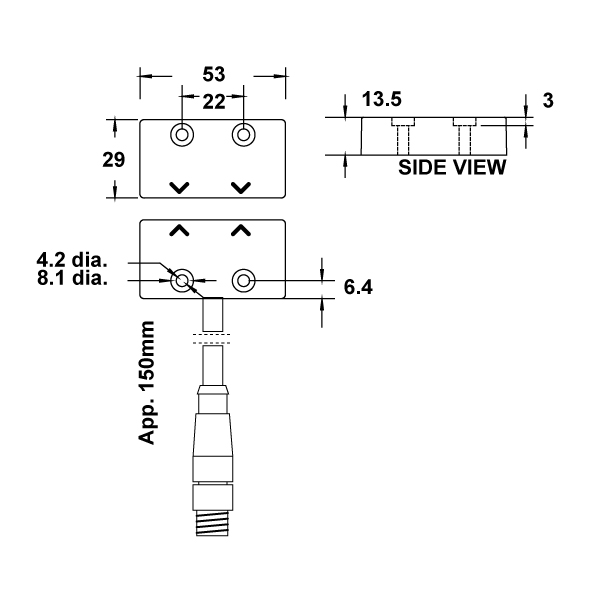

DIMENSIONS (MM)

Dimensions in millimetres

Leaded Quick Disconnect : 2 Normally Open + 1 Normally Closed

Technical Specifications
Construction 316 Grade Stainless Steel
Indication 1 x Volt Free Contact
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 300mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Leaded Quick Disconnect
Cable Length 5 or 10 metre
Coding Magnet & Reed
Dimensions of Control Unit (mm) na
Dimensions of Switch (mm) 53 x 29 x 13.5
Dimensions of Actuator (mm) 53 x 29 x 13.5
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 401 Iss16 MECHAN MS5 MS7 Installation Guide 350-401-Iss16-MECHAN-MS5-MS7-Installation-Guide.pdf PDF (1.2 MB)
