•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in cord grip gland

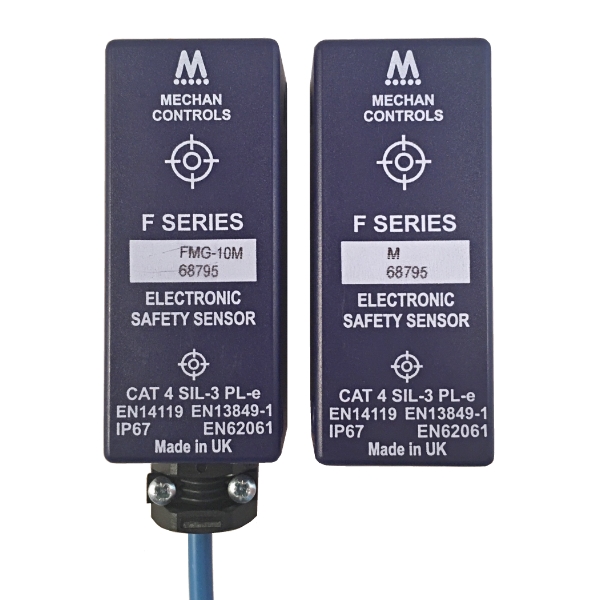

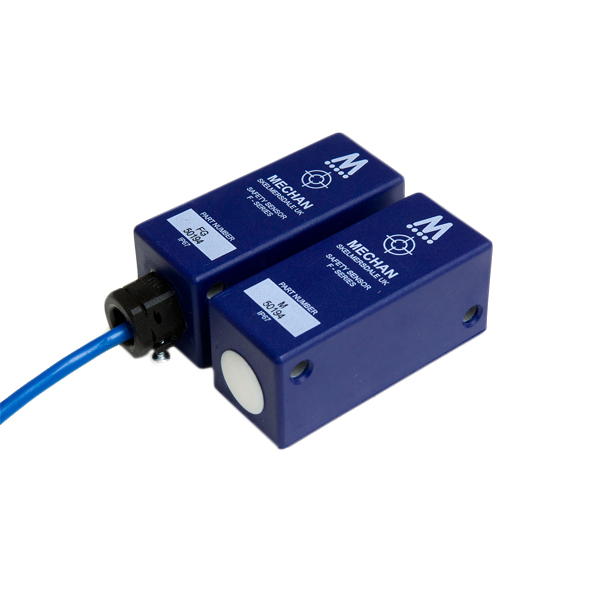

FMG electronic safety switches are part of our most robust design, with built in cable protection adaptors for the harshest environments. Fully encapsulated into blue ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the F-Type safety switches are easy to fit and offer exceptional physical strength for long term reliability.

Product Code Description Part No. Quote options Added to Basket
308.003 FMG-5M F-TYPE SAFETY SWITCH FMG-5M
Qty: - +

308.004 FMG-10M F-TYPE SAFETY SWITCH FMG-10M
Qty: - +

308.005 FMG-15M F-TYPE SAFETY SWITCH FMG-15M
Qty: - +

308.022 FMG 20M 'F' TYPE SAFETY SWITCH FMG-20M
Qty: - +

308.021 FMG-25M F'TYPE SAFETY SWITCH FMG-25M
Qty: - +

308.023 FMG 30M F'TYPE SAFETY SWITCH FMG 30M
Qty: - +

308.013 FG-5M F-TYPE SAFETY SWITCH FG-5M
Qty: - +

308.014 FG-10M F-TYPE SAFETY SWITCH FG-10M
Qty: - +

308.015 FG-15M F-TYPE SAFETY SWITCH FG-15M
Qty: - +

308.025 FG-20M F-TYPE SAFETY SWITCH FG-20M
Qty: - +


Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67
Weight na
Mounting 4 x M6 Bolts
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Switch (mm) 75 x 34 x 32mm
Dimensions of Actuator (mm) 75 x 34 x 32mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system
