FMA

FMA FMA FMA

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in liquid tight anaconda adaptor

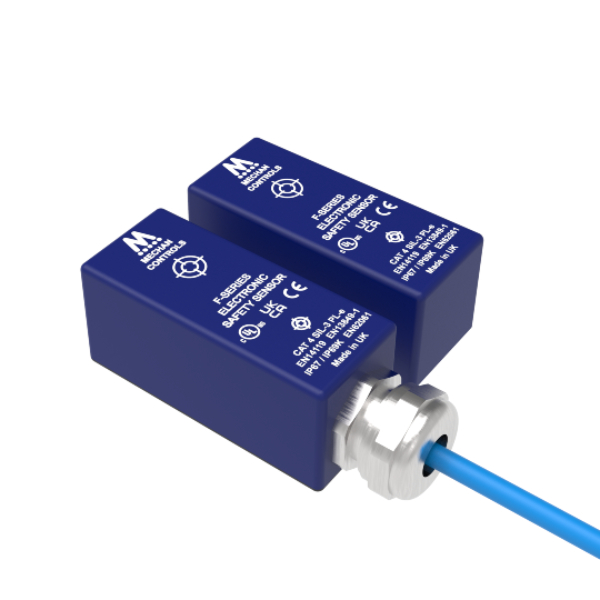

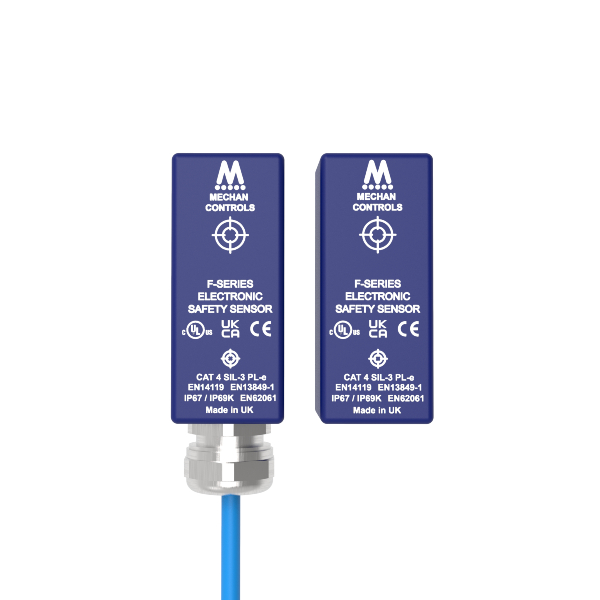

FMA electronic safety switches are part of our most robust design, with built in cable protection adaptors for the harshest environments. Fully encapsulated into blue ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the F-Type safety switches are easy to fit and offer exceptional physical strength for long term reliability.

Product Code Description Part No. Quote options Added to Basket
308.000 FMA-5M F TYPE SAFETY SWITCH FMA-5M
Qty: - +

308.001 FMA-10M F-TYPE SAFETY SWITCH FMA-10M
Qty: - +

308.002 FMA-15M F-TYPE SAFETY SWITCH FMA-15M
Qty: - +

308.019 FMA-20M F'TYPE SAFETY SWITCH FMA-20M
Qty: - +

308.020 FMA-25M F'TYPE SAFETY SWITCH FMA-25M
Qty: - +

308.024 FMA 30M F'TYPE SAFETY SWITCH FMA 30M
Qty: - +

308.010 FA-5M F-TYPE SAFETY SWITCH FA-5M
Qty: - +

308.011 FA-10M F-TYPE SAFETY SWITCH FA-10M
Qty: - +

308.012 FA-15M F-TYPE SAFETY SWITCH FA-15M
Qty: - +

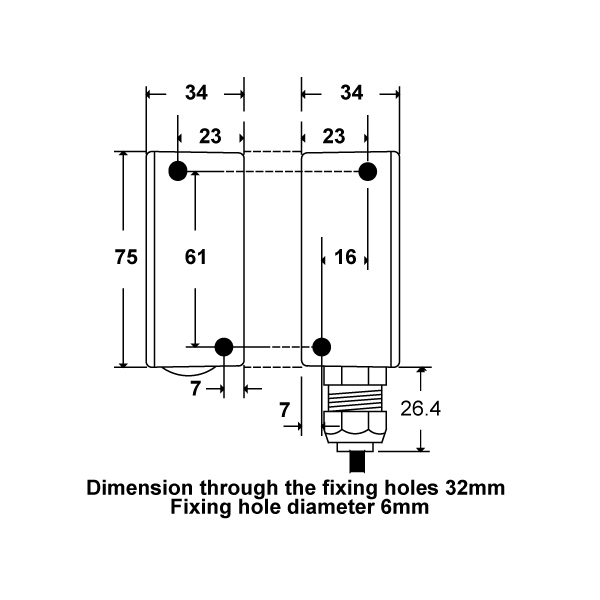

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M6 Bolts
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding RFID, Generic code
Dimensions of Switch (mm) 75 x 34 x 32mm
Dimensions of Actuator (mm) 75 x 34 x 32mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
