MS5

MS5 MS5 MS5

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    Pre-Wired Cable, 6 cores
Operating Distance:
    7mm ON / 17mm OFF
Ingress Protection Rating:
    IP67 and IP69K

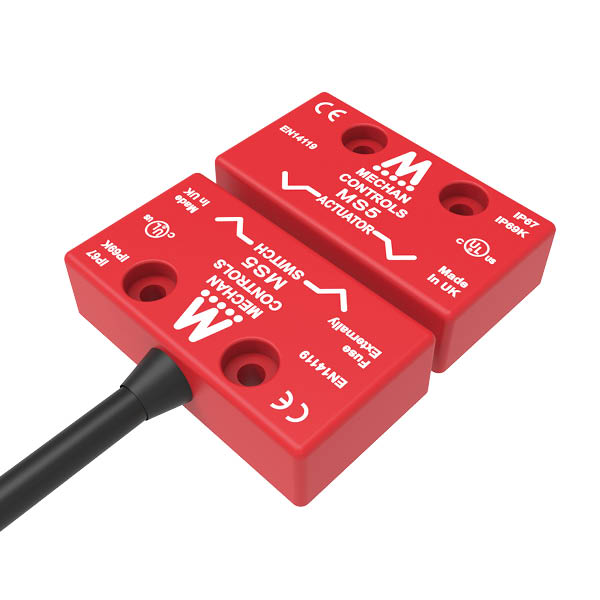

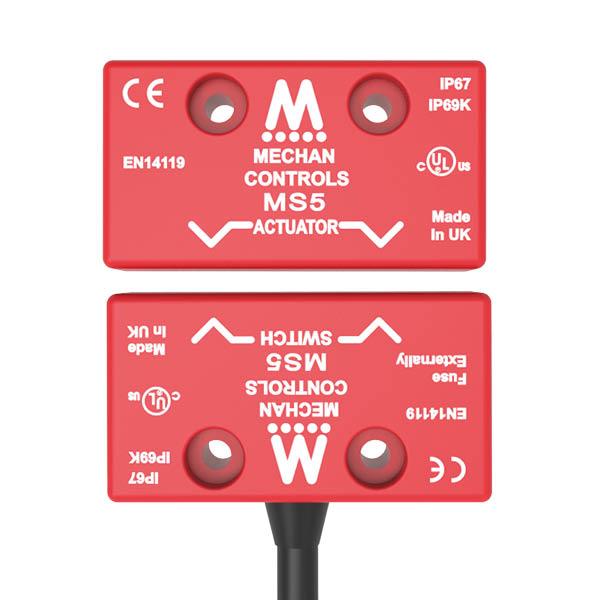

The MAGNASAFE MS5 are compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into red ABS housings, the MS5 safety switches are easy to install and have a 7 – 17 mm switching distance, making them tolerant to misalignment and helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
354.075 MS5 / Plastic / 2NO + 1NC / DC / 01-Metre Pre-Wired (Switch and Actuator) MS5-21-DC-01M
Qty: - +

354.050 MS5 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS5-21-DC-03M
Qty: - +

354.059 MS5 / Plastic / 2NO + 1NC / DC / 05-Metre Pre-Wired (Switch and Actuator) MS5-21-DC-05M
Qty: - +

354.062 MS5 / Plastic / 2NO + 1NC / DC / 06-Metre Pre-Wired (Switch and Actuator) MS5-21-DC-06M
Qty: - +

354.061 MS5 / Plastic / 2NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS5-21-DC-10M
Qty: - +

354.069 MS5 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch Only) MS5-21-DC-03M(SO)
Qty: - +

354.053 MS5-ACT (ACTUATOR ONLY) MS5-ACT
Qty: - +


MS5-PLASTIC-Switch-Pre-Wired.STEP

Download Step Drawing MS5-Red-ABS-Switch-with-Cable.STEP Download Step Drawing MS5-Red-ABS-Actuator.STEP

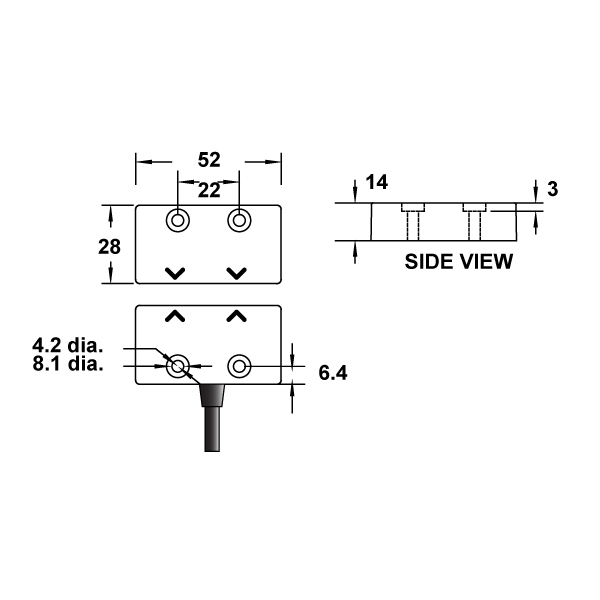

DIMENSIONS (MM)

Dimensions in millimetres

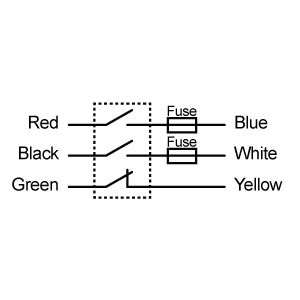

2 Normally Open Contacts + 1 Normally Closed Contact

Technical Specifications
Construction Red ABS, Resin Filled
Indication 1 x Volt Free Contact
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 300mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 52 x 28 x 14mm
Dimensions of Actuator (mm) 52 x 28 x 14mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
