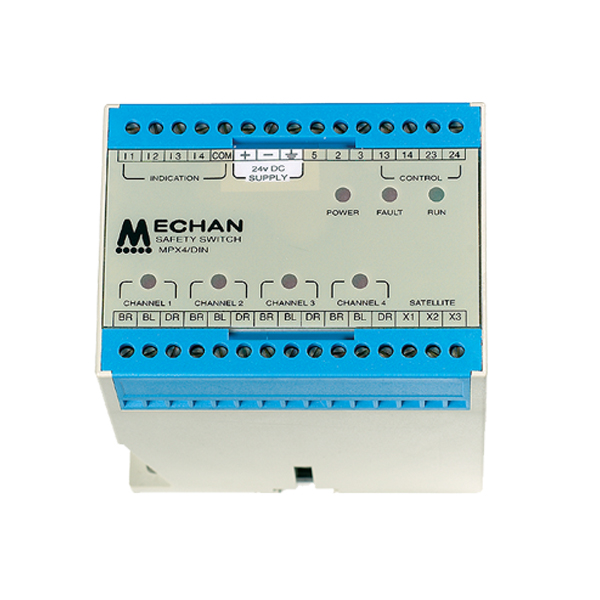

MPX4DIN

MPX4DIN MPX4DIN MPX4DIN MPX4DIN

Approvals

CE Approved

   1-4 safety switch inputs
•   Dual channel output & monitoring
•   35mm DIN rail mounting
•   Fully electronic safety switches
•   Unique code option  (EN 14119)

The MPX4/DIN has 2 NO safety output contacts and a reset/monitoring circuit for simple connection to existing control systems. A DIP switch mounted under the lid of the MPX4/DIN can set the unit to monitor between 1 and 4 fully electronic, Mechan safety switches. Each safety switch input has a LED status indicator on the control unit and a volt free contact for remote signalling to PLC or mimic panel.

The MPX/DIN control units are designed to work with the F-Type, B-Type, S-Type, Dinky electronic safety switches and the unique code CMA electronic safety switches.



Product Code Description Part No. Quote options Added to Basket
301.000 MPX4/DIN 24VDC SAFETY CONTROL UNIT MPX4/DIN 24VDC
Qty: - +

301.001 MPX4/DIN 24VAC SAFETY CONTROL UNIT MPX4/DIN 24VAC
Qty: - +

301.002 MPX4/DIN 110VAC SAFETY CONTROL UNIT MPX4/DIN 110VAC
Qty: - +

301.003 MPX4/DIN 240VAC SAFETY CONTROL UNIT MPX4/DIN 240VAC
Qty: - +

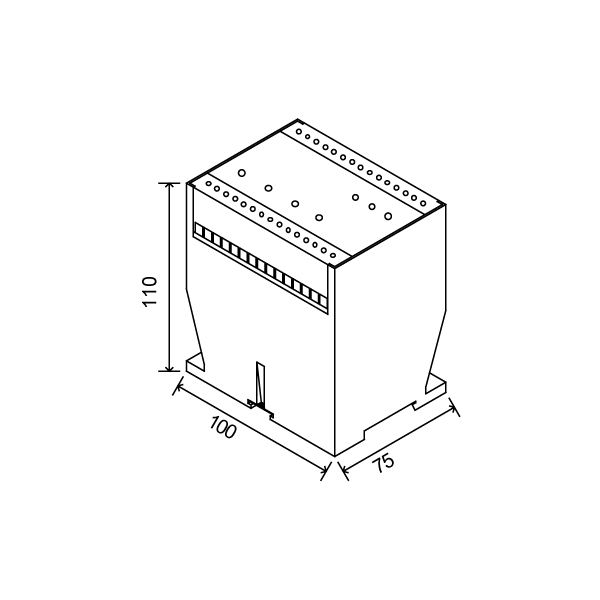

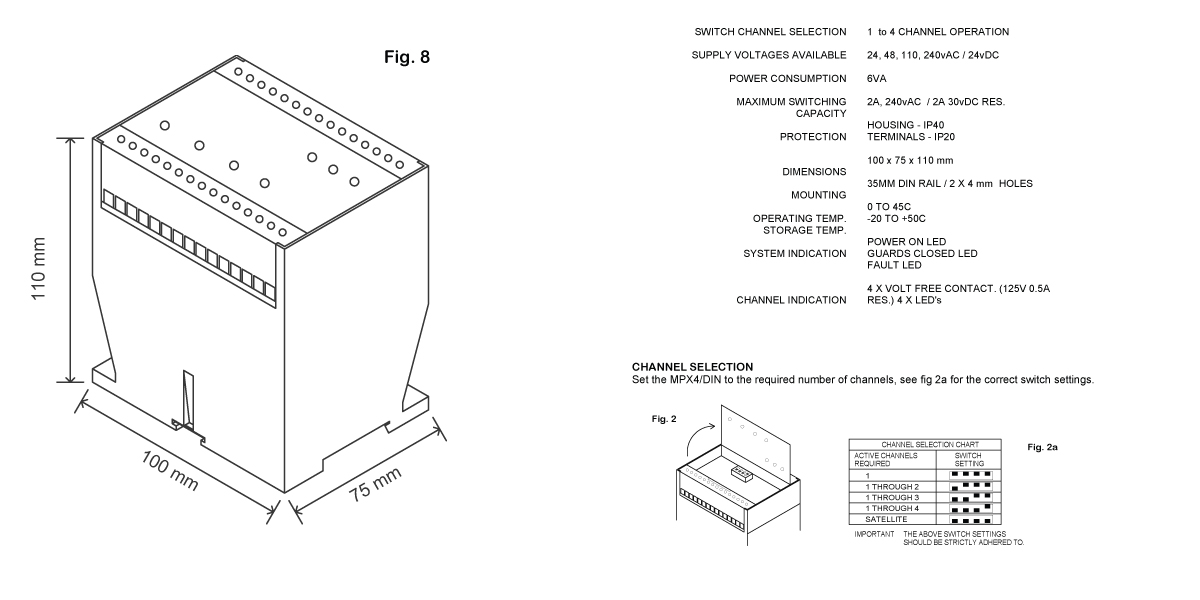

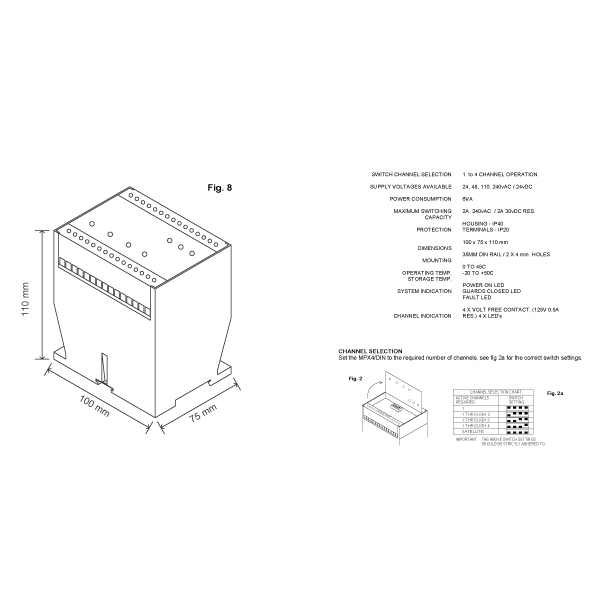

DIMENSIONS (MM)

Dimensions in millimetres

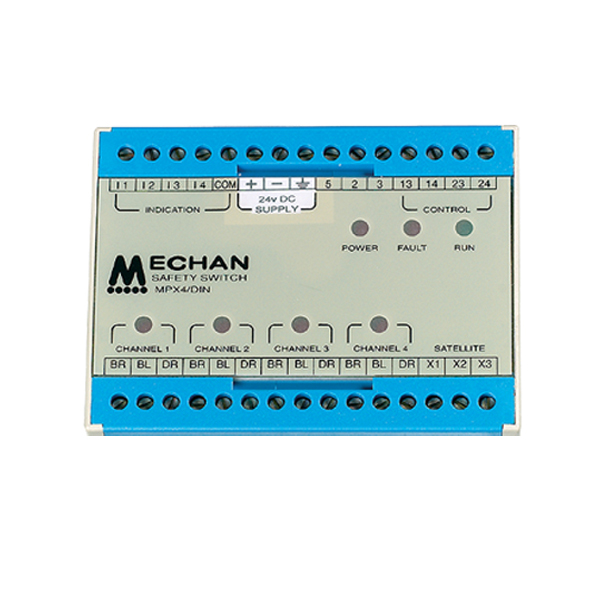

PRODUCT LAYOUT

MPX4/DIN LAYOUT 1

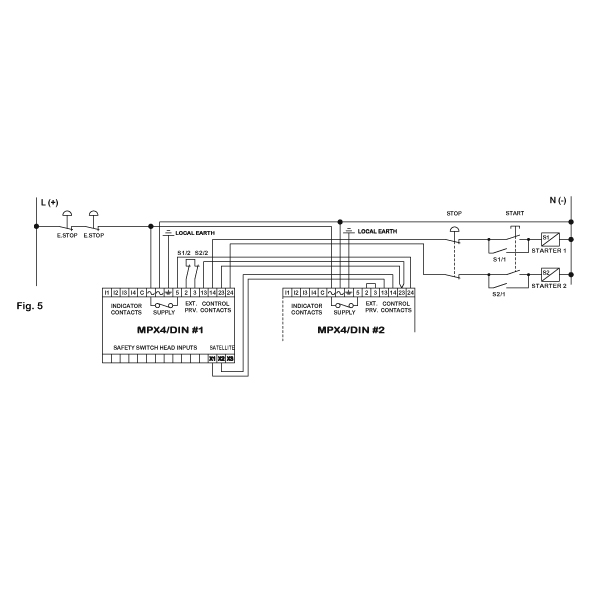

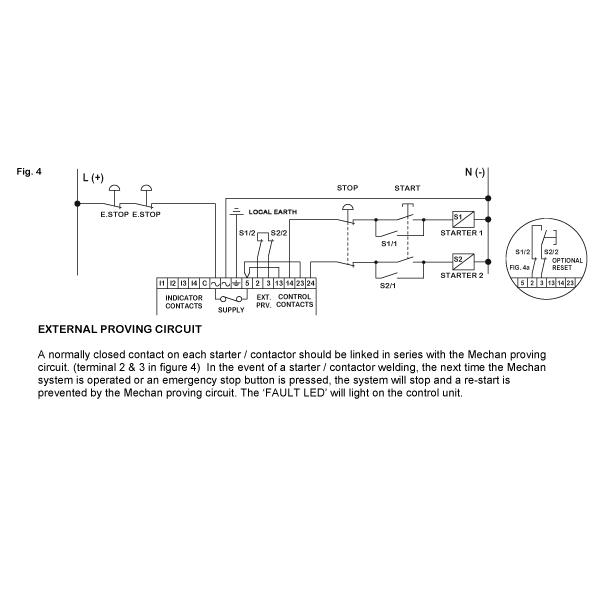

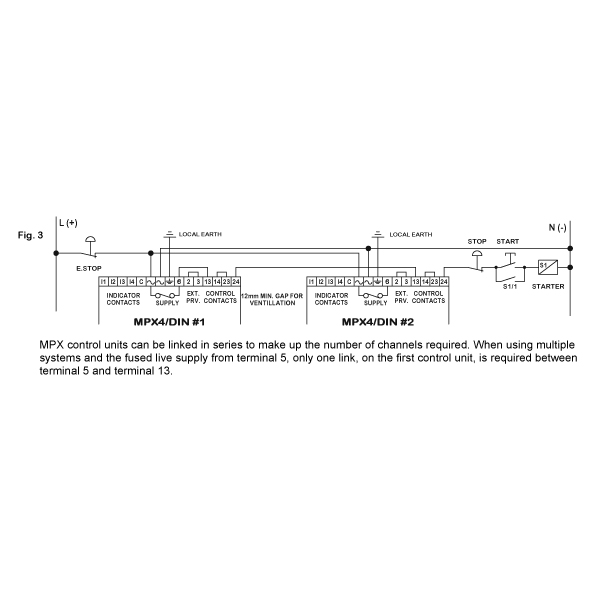

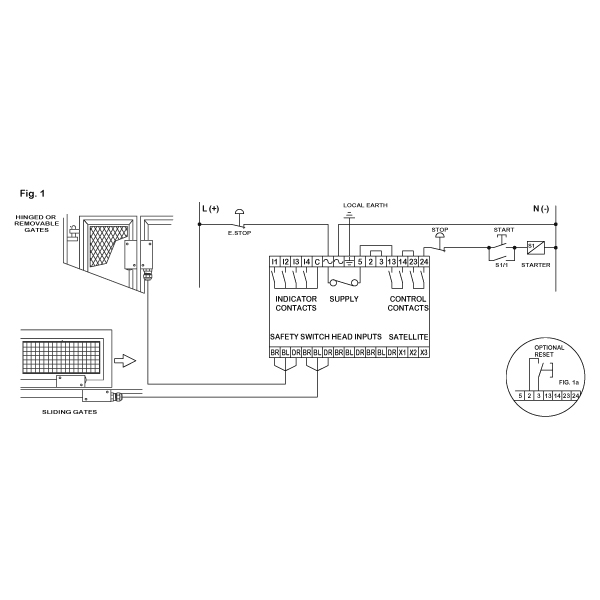

Connection Drawing 1

Connection Drawing 2

Connection Drawing 3

Connection Drawing 4

Technical Specifications
Reset Options External Proving / Reset Circuit
Construction Grey Polycarbonate, Blue Terminals
Indication LED's for Power, Run & Fault. Guard Status LED
IP Rating Housing IP40, Terminals IP20
Weight na
Mounting 35mm DIN Rail
Supply Voltage Options 24VDC / 24VAC / 110VAC / 230VAC
Power Consumption 6VA
Safety Output 2 Normally Open
Safety Output Rating 2A/240VAC / 2A 30VDC
Coding Electronic, Generic code
Input 1 to 4 Electronic Safety Switches
Dimensions of Control Unit (mm) 100 x 75 x 110mm
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 50°C
Safety Related Data
File Title File Name Download File
MECHAN MPX4/DIN INSTALLATION GUIDE 301-400V3-MECHAN-MPX4-DIN-INSTALLATION-GUIDE.pdf PDF (72 KB)
