MS8

MS8 MS8 MS8

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:

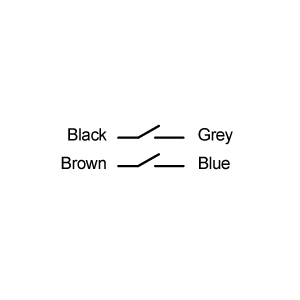

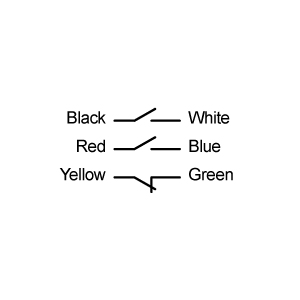

    2NO, 2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    Pre-Wired Cable, 6 cores
Operating Distance:
    30mm ON / 50mm OFF
Ingress Protection Rating:
    IP67 and IP69K

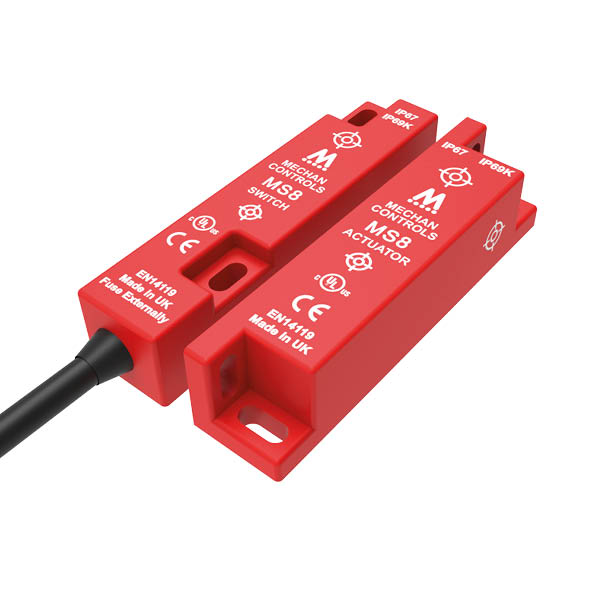

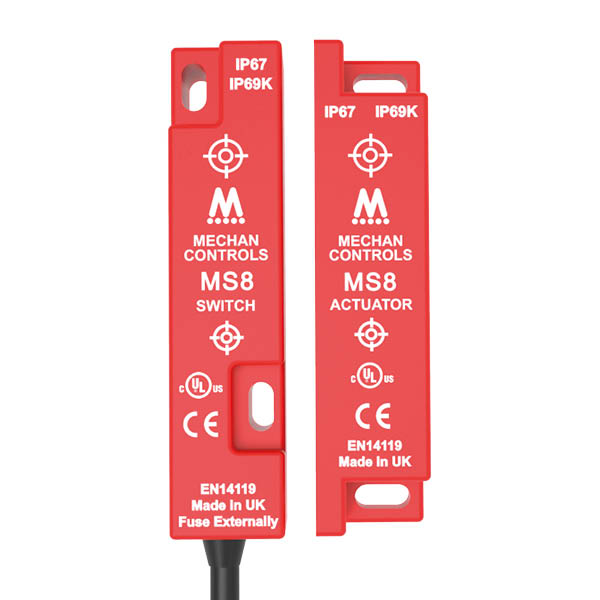

The MAGNASAFE MS8 non-contact safety switches are an industry standard, slim-line, space saving housing made from Red ABS. Fully encapsulated, the MS8 safety switches have been designed with a larger than standard switching distance to ensure easy to install, tolerant to misalignment. The non-contact operation has a 30 - 50 mm switching distance helping to ensure a long and trouble free operating life where guarding alignment is an issue.

Product Code Description Part No. Quote options Added to Basket
358.010 MS8 / Plastic / 2NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS8-20-DC-03M
Qty: - +

358.011 MS8 / Plastic / 2NO / DC / 06-Metre Pre-Wired (Switch and Actuator) MS8-20-DC-06M
Qty: - +

358.013 MS8 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS8-21-DC-03M
Qty: - +

358.014 MS8 / Plastic / 2NO + 1NC / DC / 05-Metre Pre-Wired (Switch and Actuator) MS8-21-DC-05M
Qty: - +

Technical Specifications
Construction Red ABS, Resin Filled
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 400mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3 or 6 metre
Coding Magnet & Reed

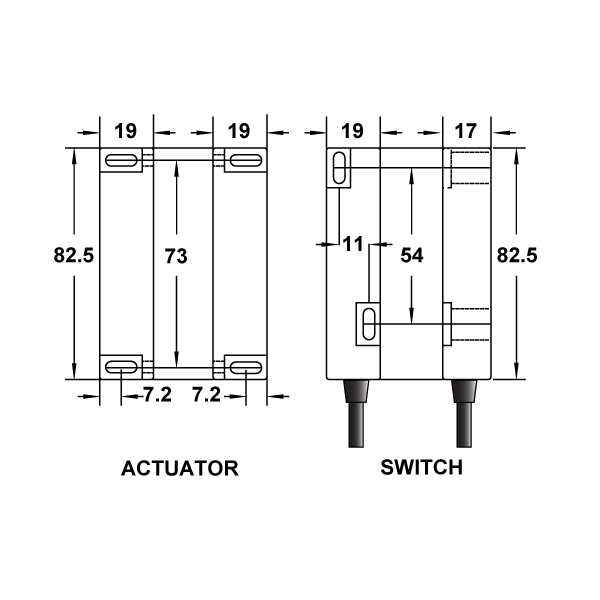

Dimensions of Switch (mm) 82.5 x 19 x 17mm
Dimensions of Actuator (mm) 82.5 x 19 x 19mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
