BMS

BMS BMS BMS

Approvals

CE Approved

•   Mid-sized electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Side entry cable

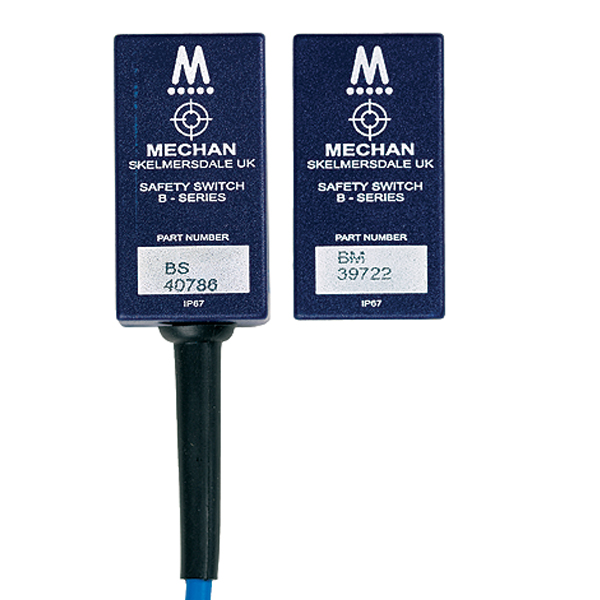

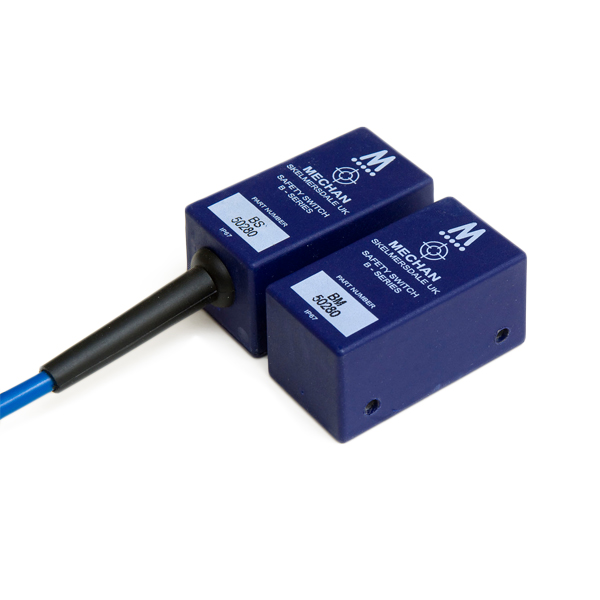

BMS are mid-sized electronic switches with the same robust design features as the F-Type safety switches, encapsulated in our smaller 52 x 27 x 25 ABS housing. Ideal for use on a range of guarding where the compact design helps in hiding or mounting the switches.

With 4mm pre-drilled fixing holes directly through the body of the switch, and the same consistent 10mm switching, even when mounted on metal frames, these B-Type switches offer easy fitting and long term reliability.

Product Code Description Part No. Quote options Added to Basket
309.000 BMS-5M B-TYPE SAFETY SWITCH BMS-5M
Qty: - +

309.001 BMS-10M B-TYPE SAFETY SWITCH BMS-10M
Qty: - +

309.002 BMS-15M B-TYPE SAFETY SWITCH BMS-15M
Qty: - +

309.020 BMS-20M B-TYPE SAFETY SWITCH BMS-20M
Qty: - +

309.010 BS-5M B-TYPE SAFETY SWITCH BS-5M
Qty: - +

309.011 BS-10M B-TYPE SAFETY SWITCH BS-10M
Qty: - +

309.012 BS-15M B-TYPE SAFETY SWITCH BS-15M
Qty: - +

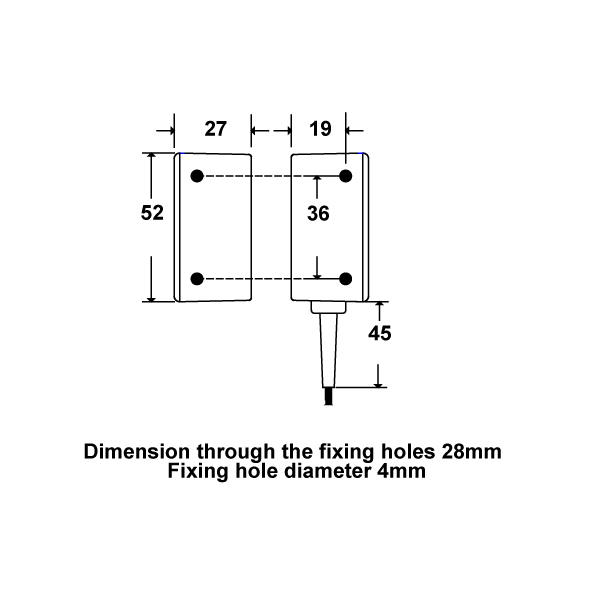

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Switch (mm) 52 x 27 x 28mm
Dimensions of Actuator (mm) 52 x 27 x 28mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
