MS21QD

MS21QD MS21QD MS21QD

Approvals

CE Approved

Housing:
    Red ABS, Resin Encapsulated
Contacts:
    1NO + 1NC, 2NO, 2NO + 1NC (with door open)
Contact Rating:
    2Amp 230VAC / 1Amp 24VDC
Connection Type:
    M12, 4-Pole / 6-Pole
Operating Distance:
     8mm ON / 28mm OFF
Ingress Protection Rating:
    IP67 and (IP69K: Pre-Wired Only)

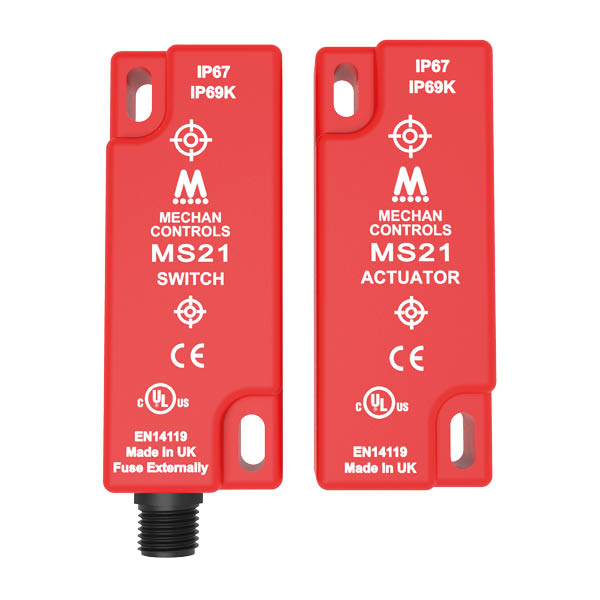

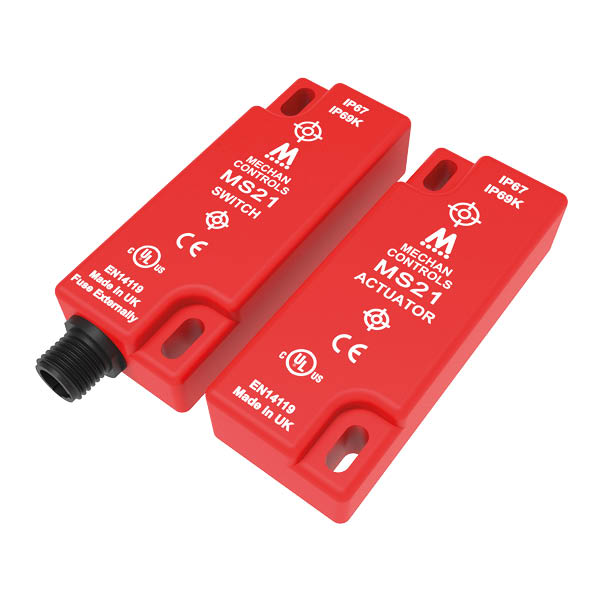

The MAGNASAFE MS21 safety switches are fully encapsulated into an ABS wide bodied housing. With an M12 connector in the switch making them even easier to install, the MS21 safety switches are tolerant to misalignment, the 10mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
359.025 MS21 / Plastic / 1NO + 1NC / DC / 4-Pole M12 (Switch and Actuator) - No Cable MS21-11-DC-QD
Qty: - +

359.026 MS21 / Plastic / 2NO / DC / 4-Pole M12 (Switch and Actuator) - No Cable MS21-20-DC-QD
Qty: - +

359.027 MS21 / Plastic / 2NO + 1NC / DC / 6-Pole M12 (Switch and Actuator) - No Cable MS21-21-DC-QD
Qty: - +

359.029 MS21 / Plastic / 1NO + 1NC / 230AC / 4-Pole M12 (Switch and Actuator) - No Cable MS21-11-AC-QD
Qty: - +

359.030 MS21 / Plastic / 2NO / 230AC / 4-Pole M12 (Switch and Actuator) - No Cable MS21-20-AC-QD
Qty: - +

359.031 MS21 / Plastic / 2NO + 1NC / 230AC / 6-Pole M12 (Switch and Actuator) - No Cable MS21-21-AC-QD
Qty: - +

356.071 5 METRE, 4 CORE CABLE FOR 359.025, 359.026, 359.029, 359.030 4-CORE-1KEYWAY-05M-QD
Qty: - +

356.072 10 METRE, 4 CORE CABLE FOR 359.025, 359.026, 359.029, 359.030 4-CORE-1KEYWAY-10M-QD
Qty: - +

360.004 5 METRE, 6 CORE CABLE FOR 359.027, 359.031 6-CORE-2KEYWAY-05M-QD
Qty: - +

360.012 10 METRE, 6 CORE CABLE FOR 359.027, 359.031 6-CORE-2KEYWAY-10M-QD
Qty: - +


Download Step Drawing ms21-plastic-switch-qd.STEP Download Step Drawing MS21-Red-ABS-Actuator.STEP

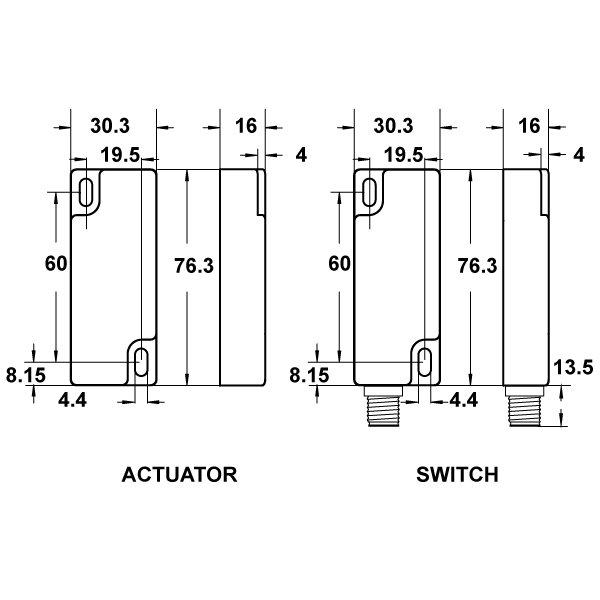

DIMENSIONS (MM)

Dimensions in millimetres

2 Normally Open Contacts + 1 Normally Closed

2 Normally Open Contacts

1 Normally Open Contact + 1 Normally Closed

Technical Specifications
Construction Red ABS, Resin Filled
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac / 2Amps or 24Vdc / 1 Amp
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Quick disconnect
Cable Length 5 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 76.3 x 30.3 x 16mm
Dimensions of Actuator (mm) 76.3 x 30.3 x 16mm
Environmental Specifications
Operating Temperature -25°C to +55°C
Storage Temperature -25°C to +55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

1)
Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years

File Title File Name Download File
350 402 Iss19 MECHAN MS6 MS21 Installation Guide 350-402-Iss19-MECHAN-MS6-MS21-Installation-Guide.pdf PDF (1.2 MB)
ms21-plastic-switch-m12-3d ms21-plastic-switch-qd.STEP STEP (975 KB)
MS21 Red ABS Actuator MS21-Red-ABS-Actuator.STEP STEP (169 KB)
