DNK2

DNK2 DNK2 DNK2 DNK2

Approvals

CE Approved

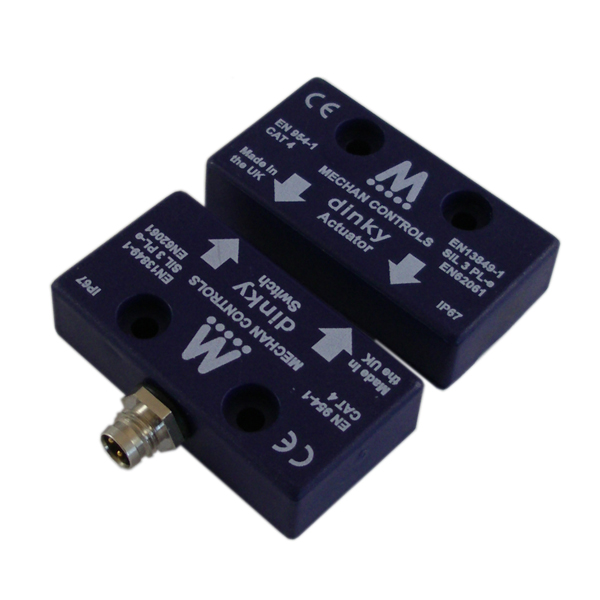

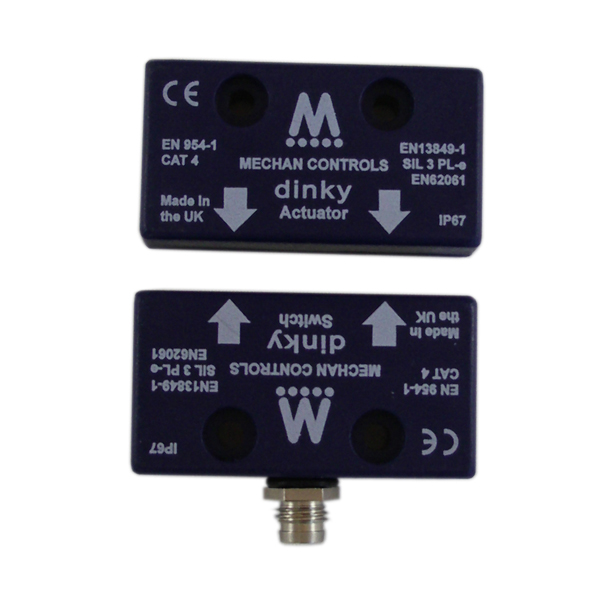

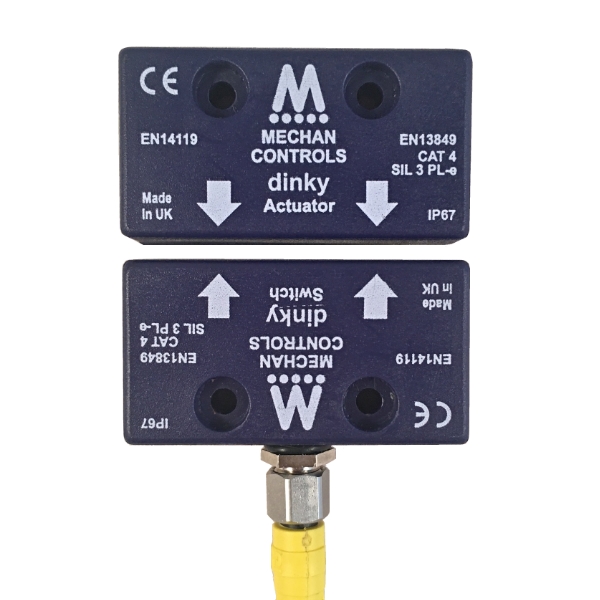

•   Smallest electronic safety switch
•   Light weight guard monitoring
•   Fully encapsulated, IP67
•   M8 Quick disconnect, 5 or 10 metre cable

The DNK1 electronic safety switches use the same electronic switching and robust design features as the F-Type safety switches, encapsulated into our smallest ABS housing. Ideal for use on light weight guarding normally found on packing, filling and food processing machinery. The DNK switches offer the robust, same long term reliability as the standard F-Series safety switches.

Product Code Description Part No. Quote options Added to Basket
374.050 DNK2-QD DINKY SAFETY SWITCH & ACTUATOR (M8-3PIN) DNK2-QD
Qty: - +

374.052 DNK2-QD-05M DINKY QUICK DISCONNECT COMPLETE DNK2-QD-05M
Qty: - +

374.053 DNK2-QD-15M DINKY QUICK DISCONNECT COMPLETE DNK2-QD-15M
Qty: - +

374.055 DNK2-QD-REC (NO CABLE) DNK2-QD-REC ONLY
Qty: - +

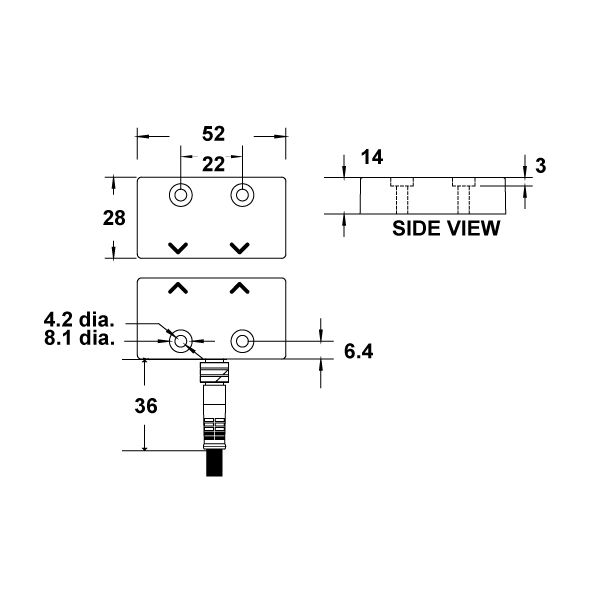

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Power Consumption na
Cable / Connector M8 Quick Disconnect
Cable Length 5 or 15 metre
Coding Electronic, Generic code
Dimensions of Switch (mm) 28 x 52 x 14mm
Dimensions of Actuator (mm) 28 x 52 x 14mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
