DNK1

DNK1 DNK1 DNK1

Approvals

CE Approved

•   Smallest electronic safety switch
•   Light weight guard monitoring
•   Fully Encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)

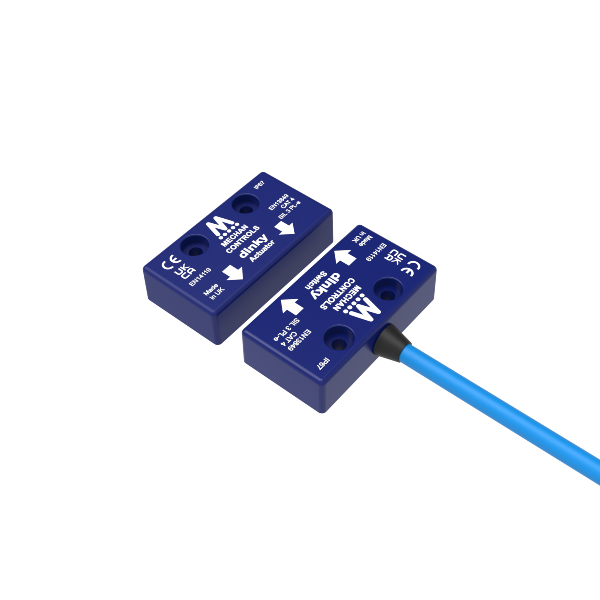

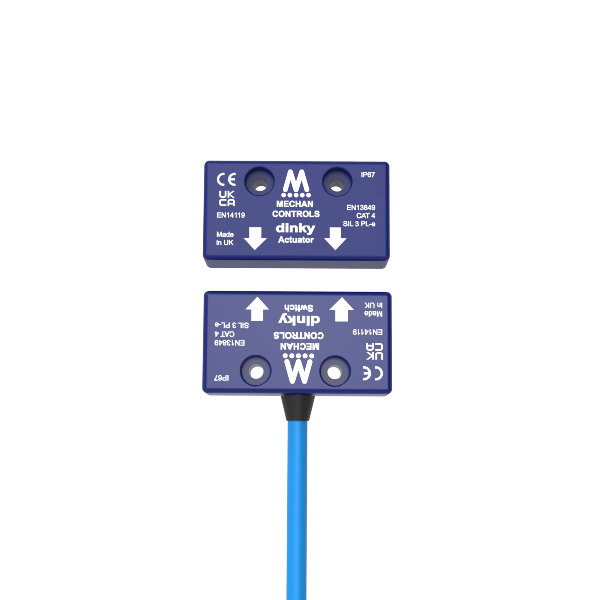

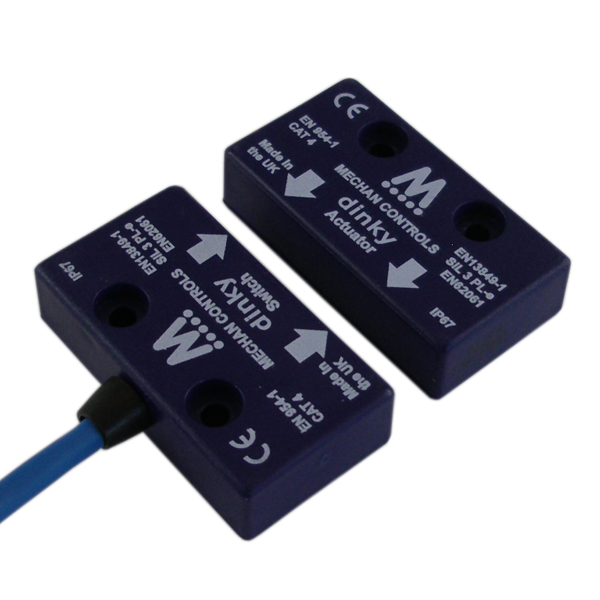

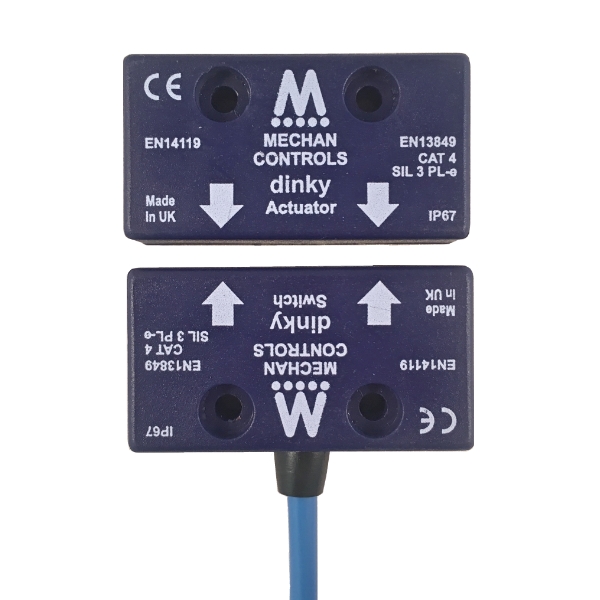

The DNK1 electronic safety switches use the same electronic switching and robust design features as the F-Type safety switches, encapsulated into our smallest ABS housing. Ideal for use on light weight guarding normally found on packing, filling and food processing machinery. The DNK switches offer the robust, same long term reliability as the standard F-Series safety switches.

Product Code Description Part No. Quote options Added to Basket
374.000 DNK1-5M DINKY SAFETY SWITCH DNK1-5M
Qty: - +

374.001 DNK1-10M DINKY SAFETY SWITCH DNK1-10M
Qty: - +

374.002 DNK1-15M DINKY SAFETY SWITCH DNK1-15M
Qty: - +

374.003 DNK1-REC-5M DINKY RECEIVER DNK1-REC-5M
Qty: - +

374.004 DNK1-20M DINKY SAFETY SWITCH DNK1-20M
Qty: - +

374.005 DNK1-10M-REC DINKY SAFETY SWITCH DNK1-10M-REC
Qty: - +

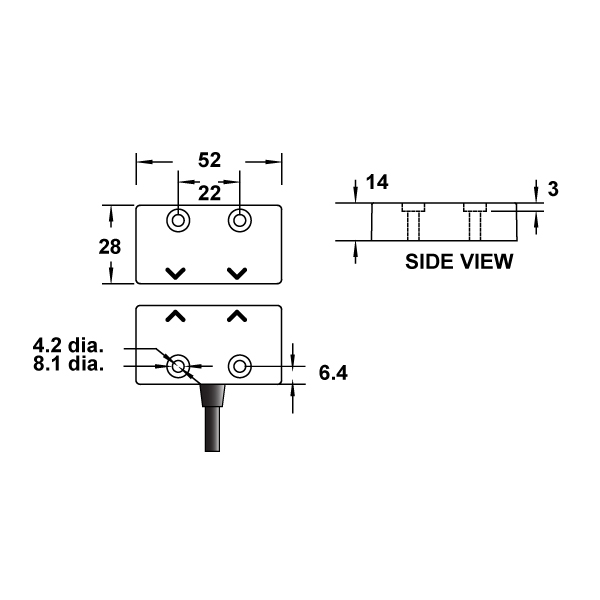

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Control Unit (mm) na
Dimensions of Switch (mm) 28 x 52 x 14mm
Dimensions of Actuator (mm) 28 x 52 x 14mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system
