MS3

MS3 MS3 MS3

Approvals

CE Approved

Housing:
    M30, Red ABS, Resin Encapsulated
Contacts:
    1NO, 1NO + 1NC, 2NO, 2NO + 1NC (with door open)
Contact Rating:
    2Amp 230VAC / 1Amp 24VDC
Connection Type:
    Pre-Wired Cable, 2-Core / 4-Core / 6-Core
Operating Distance:
    10mm ON / 35mm OFF
Ingress Protection Rating:
    IP67 and IP69K

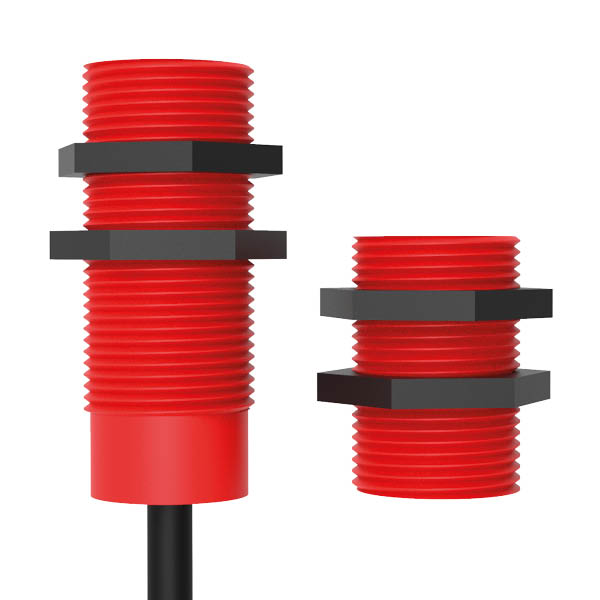

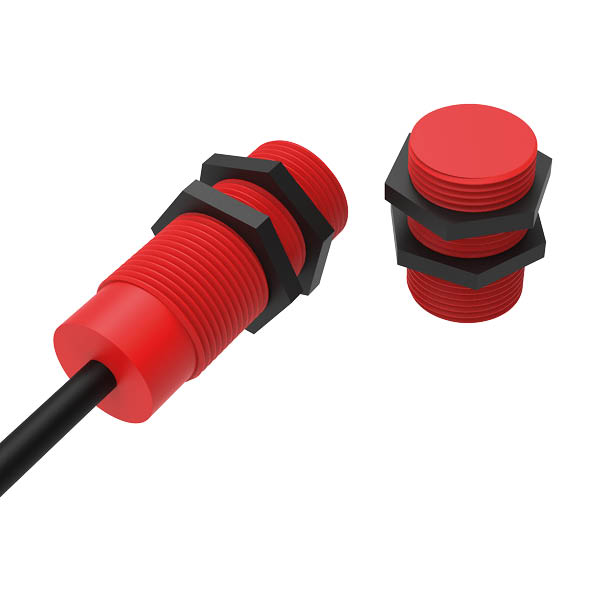

The Magnasafe MS3 are ‘barrel’ mounted magnetically operated safety switches. Encapsulated into M30 dia. housings, these safety switches are easy to install, and adjust and are tolerant to misalignment. With a 10 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
352.000 MS3 / Plastic / 1NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS3-10-AC-03M
Qty: - +

352.001 MS3 / Plastic / 1NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS3-11-AC-03M
Qty: - +

352.002 MS3 / Plastic / 2NO / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS3-20-AC-03M
Qty: - +

352.003 MS3 / Plastic / 2NO + 1NC / 230AC / 03-Metre Pre-Wired (Switch and Actuator) MS3-21-AC-03M
Qty: - +

352.050 MS3 / Plastic / 1NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS3-10-DC-03M
Qty: - +

352.051 MS3 / Plastic / 1NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS3-11-DC-03M
Qty: - +

352.052 MS3 / Plastic / 2NO / DC / 03-Metre Pre-Wired (Switch and Actuator) MS3-20-DC-03M
Qty: - +

352.053 MS3 / Plastic / 2NO + 1NC / DC / 03-Metre Pre-Wired (Switch and Actuator) MS3-21-DC-03M
Qty: - +

352.055 MS3 / Plastic / 2NO + 1NC / DC / 10-Metre Pre-Wired (Switch and Actuator) MS3-21-DC-10M
Qty: - +

352.099 MS3 (ACTUATOR) MS3-ACT
Qty: - +

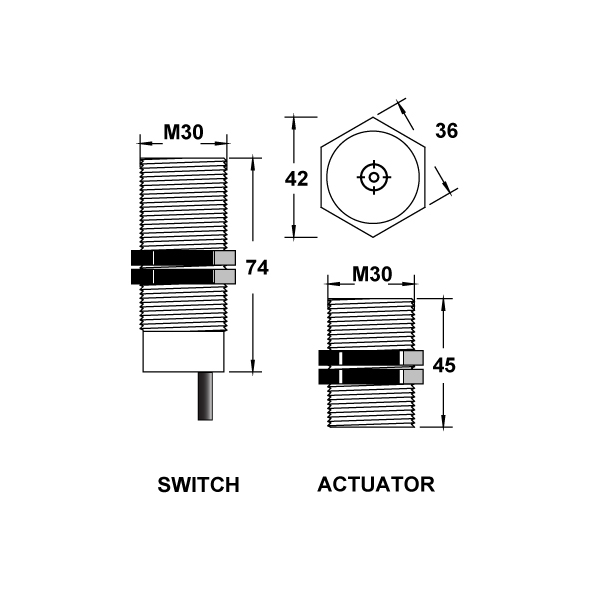

DIMENSIONS (MM)

Dimensions in millimetres

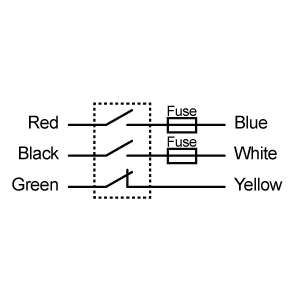

2 Normally Open Contacts + 1 Normally Closed Contact

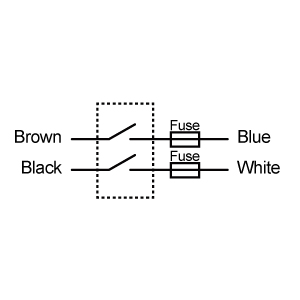

2 Normally Open Contacts

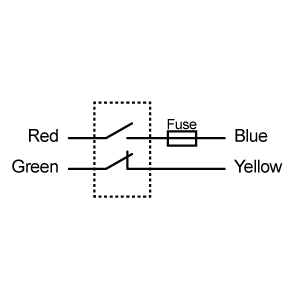

1 Normally Open Contact + 1 Normally Closed Contact

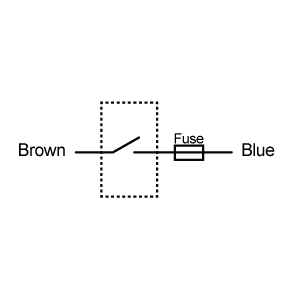

1 Normally Open Contact

Technical Specifications
Reset Options At Control Unit
Construction Red ABS, Resin Filled
Indication 1 x Volt Free Contact
IP Rating IP67
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 230Vac/2Amps or 30Vdc / 1Amp Inductive/Resistive
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 3, 6 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) M30 x 74mm
Dimensions of Actuator (mm) M30 x 45mm
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 na
PFH na
B10d na
MTTFd na
TM na
DC na
SFF na
File Title File Name Download File
351 400v9 Mechan Magnasafe MS23 installation guide 351-400v9-Mechan-Magnasafe-MS23-installation-guide.pdf PDF (1 MB)
