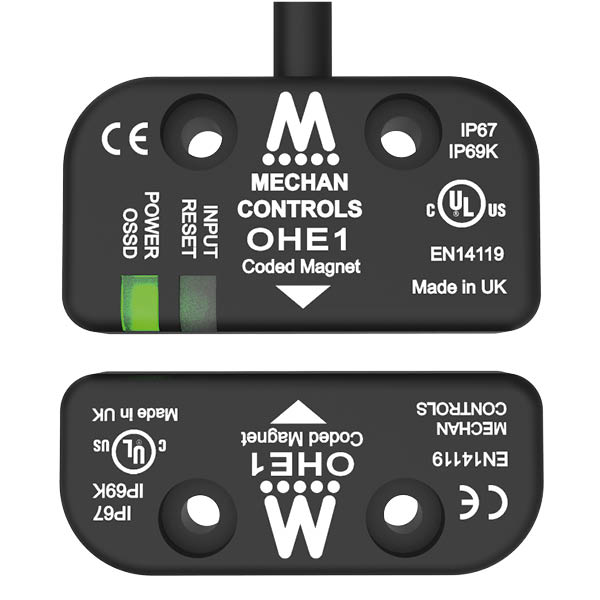

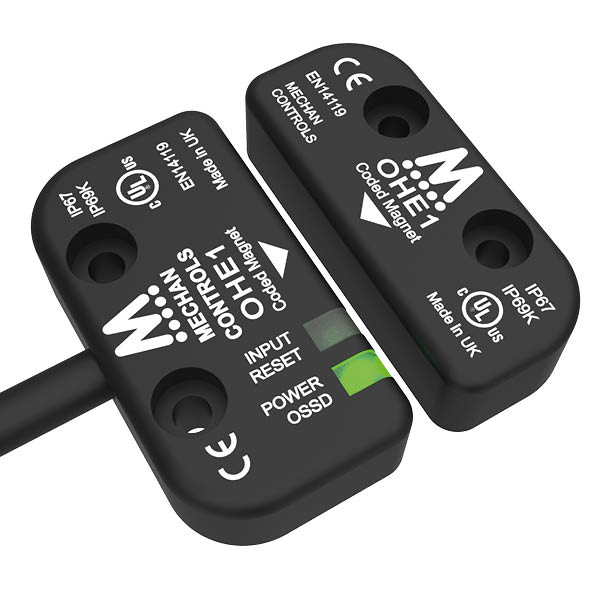

OHE1

OHE1 OHE1

Approvals

CE Approved

Housing:
    Black ABS, Resin Encapsulated
Contacts:
    2 OSSD + 1NC (with door open)
Contact Rating:
    2Amp - 24VDC
Coding:
    Magnetically Coded
Indication:
    Dual RGB (Advanced Diagnostics)
Ingress Protection Rating:
    IP67 and IP69K

OHE1 are standalone, non-contact safety switches. With 2 OSSD safety outputs and 1NC contact, capable of switching 2A at 24Vdc. The OHE1 is magnetically coded and the OSSD outputs are suitable for series connection up to 30off, maintaining PL-e.

The OHE1 includes dual RGB LEDs for advanced on-switch diagnostics and the overhanging design improves visibility in awkward mounting positions. The OHE1 safety switches are available with 3, 6 or 10 metre pre-wired cables which are fully sealed and suitable for use in most wet / harsh environments.

The O-Type switches can be used with a fea­ture called EDM (external device monitor­ing). This means you can monitor the state of contactors or safety relays in order to detect failure of the external device eliminating the need for a safety monitoring device.



Product Code Description Part No. Quote options Added to Basket
365.001 OHE1 / Plastic / 2 OSSD + 1NC / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) OHE1-21-24DC-03M
Qty: - +

365.002 OHE1 / Plastic / 2 OSSD + 1NC / 24VDC / 06-Metre Pre-Wired (Switch and Actuator) OHE1-21-24DC-06M
Qty: - +

365.003 OHE1 / Plastic / 2 OSSD + 1NC / 24VDC / 10-Metre Pre-Wired (Switch and Actuator) OHE1-21-24DC-10M
Qty: - +

365.004 OHE1 / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 03-Metre Pre-Wired (Switch and Actuator) OHE1-21-24DC-EDM-03M
Qty: - +

365.005 OHE1 / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 06-Metre Pre-Wired (Switch and Actuator) OHE1-21-24DC-EDM-06M
Qty: - +

365.006 OHE1 / Plastic / 2 OSSD + 1NC / EDM / 24VDC / 10-Metre Pre-Wired (Switch and Actuator) OHE1-21-24DC-EDM-10M
Qty: - +

365.010 OHE1-ACT (ACTUATOR ONLY) OHE1-ACT
Qty: - +

Get Quote

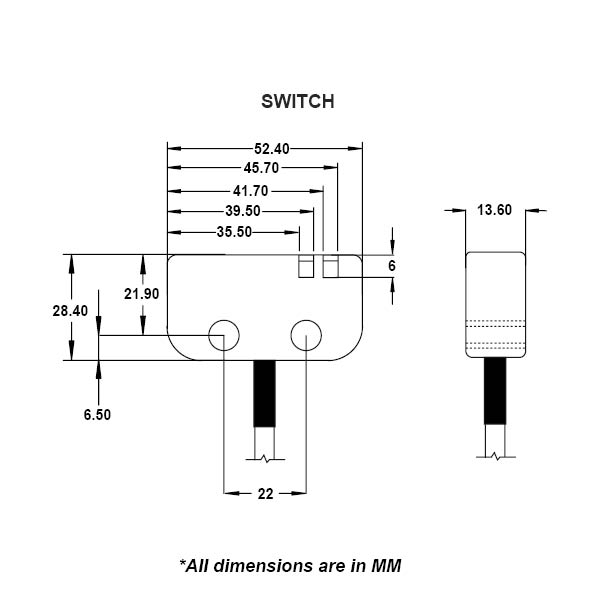

Switch Dimensions

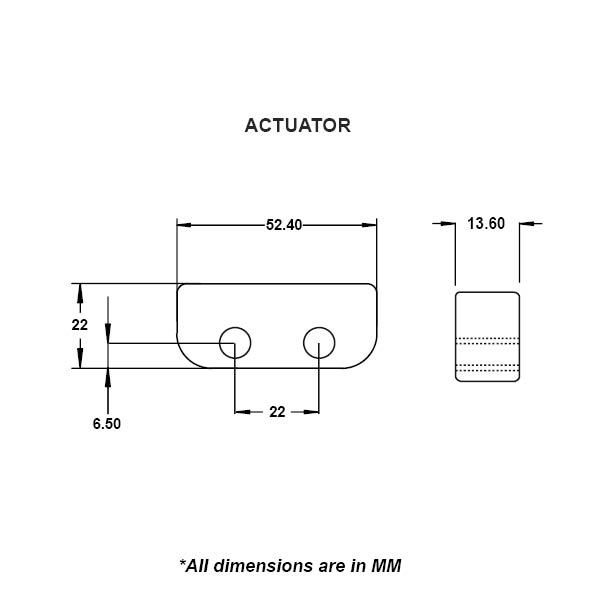

Actuator Dimensions

Technical Specifications
Supply Voltage Options 24VDC (+/- 15%)
Power Consumption 550mA (With all Outputs at max. Power)
Safety Output 2 OSSD
Safety Output Rating 2 A, max.; Status ON (+24V DC) - Door Closed
Auxilliary Output 1 N/C (with door open)
Auxilliary Output Rating 2 A, max.; Status ON (+24V DC) - Door Open
Cable / Connector Pre-Wired
Cable Length 3, 6, 10 Metre
Coding Magnetically Coded
Reset Options External Device Monitoring
Indication Dual RGB LEDs
Dimensions of Switch (mm) See Technical Drawings Tab
Dimensions of Actuator (mm) See Technical Drawings Tab
IP Rating IP67 / IP69K
Construction Yellow ABS
Mounting 4 x M4 Security Screws
Environmental Specifications
Operating Temperature -10°C to +60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 E
SIL CL in accordance with EN IEC 62061 3
PFHd in accordance with EN IEC 62061 1.12 x 10-9
PFH 1.1 x 15-9
B10d 10,000,000
MTTFd High > 385 Years (Based on usage rate of 360 Days/
TM >100 Years
DC 99%
SFF 99.5%
