FMT

FMT FMT FMT

Approvals

CE Approved

•   Electronic safety switch
•   Fully encapsulated, IP67
•   Pre-wired, 5, 10, 15 metre cable (Max 100m)
•   Built in 20mm brass thread conduit gland

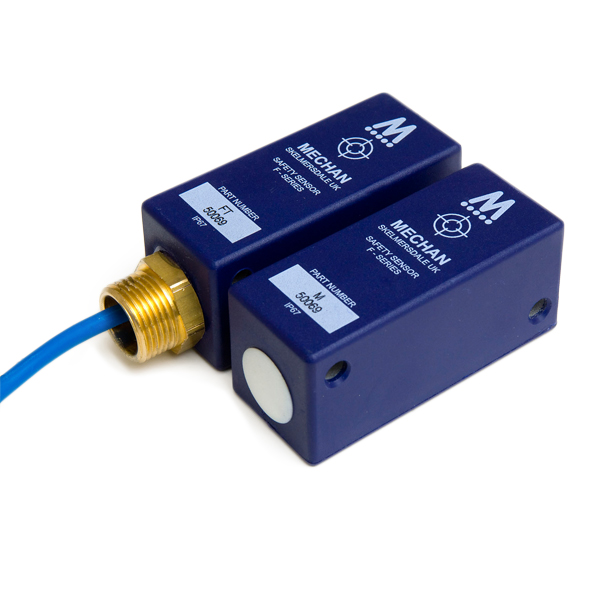

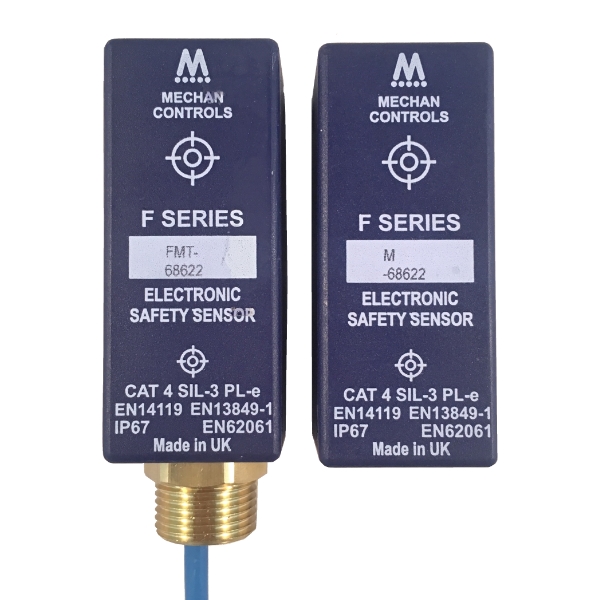

FMT electronic safety switches are part of our most robust design, with built in cable protection adaptors for the harshest environments. Fully encapsulated into blue ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the F-Type safety switches are easy to fit and offer exceptional physical strength for long term reliability.


Product Code Description Part No. Quote options Added to Basket
308.006 FMT-5M F-TYPE SAFETY SWITCH FMT-5M
Qty: - +

308.007 FMT-10M F-TYPE SAFETY SWITCH FMT-10M
Qty: - +

308.008 FMT-15M F-TYPE SAFETY SWITCH FMT-15M
Qty: - +

308.026 FMT-25M F-TYPE SAFETY SWITCH FMT-25M
Qty: - +

308.027 FMT 20M 'F' TYPE SAFETY SWITCH FMT-20M
Qty: - +

308.016 FT-5M F-TYPE SAFETY SWITCH FT-5M
Qty: - +

308.017 FT-10M F-TYPE SAFETY SWITCH FT-10M
Qty: - +

308.018 FT-15M F-TYPE SAFETY SWITCH FT-15M
Qty: - +

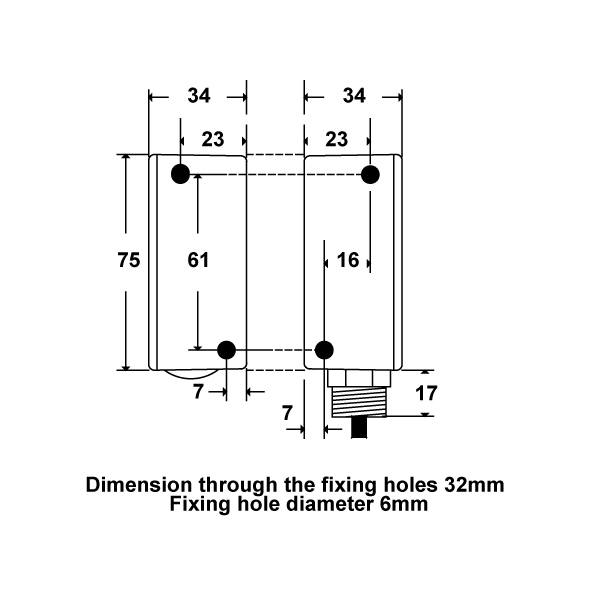

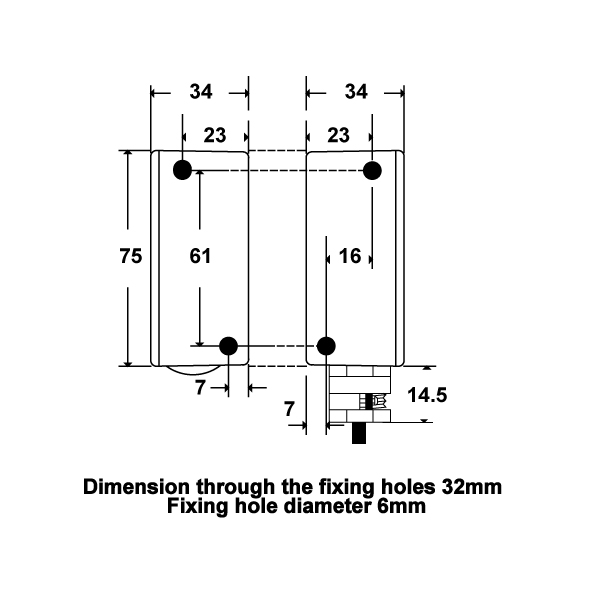

Dimensions (mm)

Dimensions in millimetres

Connection Drawing 1

Technical Specifications
Reset Options At control unit
Construction Blue ABS, Resin Filled
Indication At control unit
IP Rating IP67
Weight na
Mounting 4 x M6 Bolts
Power Consumption na
Cable / Connector Pre-wired
Cable Length 5/10 15 metre longer to order
Coding Electronic, Generic code
Dimensions of Switch (mm) 75 x 34 x 32mm
Dimensions of Actuator (mm) 75 x 34 x 32mm
Environmental Specifications
Operating Temperature -25°C to 55°C
Storage Temperature -25°C to 55°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system
