CE Approved

•   5 Gate Safety Extender Module
•   24V ac/dc
•   LED Diagnostics

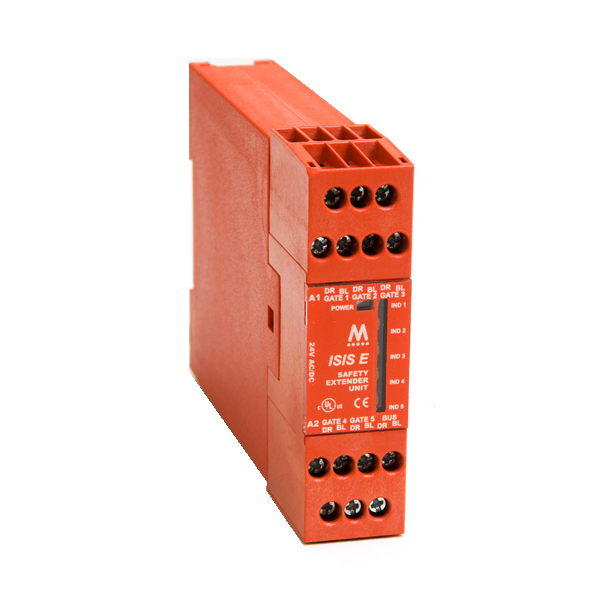

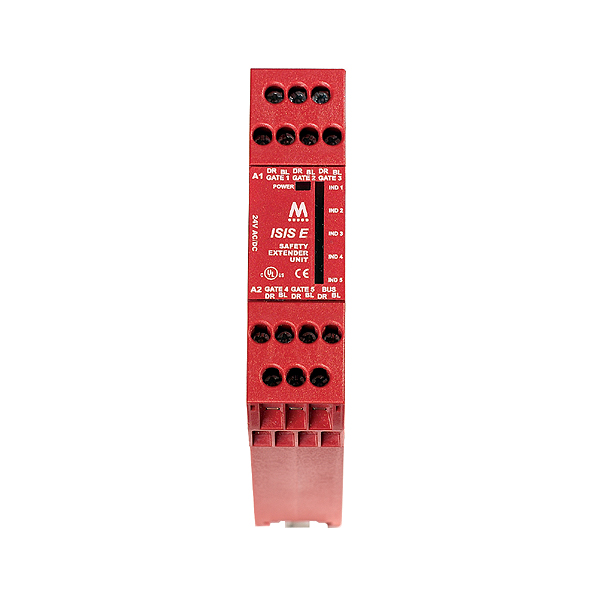

The ISIS-E Extender module is a 24V ac/dc unit that can be added to either the ISIS-4 or ISIS-2 to monitor an additional 5 ISIS safety switches. Connection to the main control unit is by a simple 2-wire bus connection. The status of each guard switch is shown by the YELLOW LED’s. Additional ISIS-E extender modules can be added to monitor larger systems.

Product Code Description Part No. Quote options Added to Basket
375.000 ISIS EXTENDER ISIS-EXT
Qty: - +

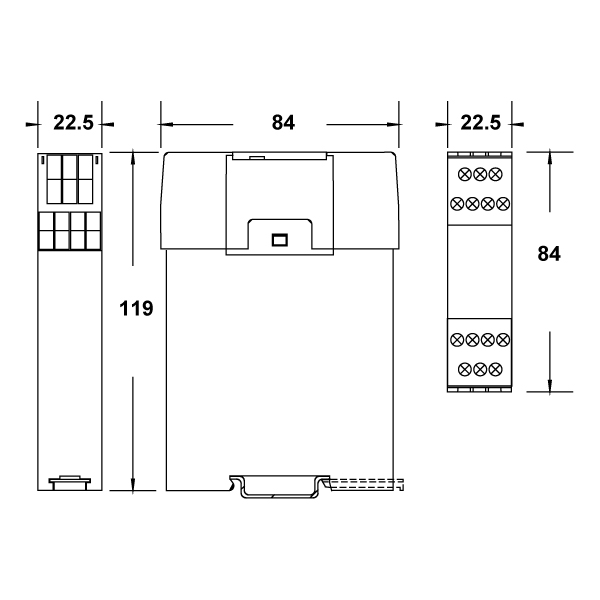

DIMENSIONS (MM)

Dimensions in millimetres

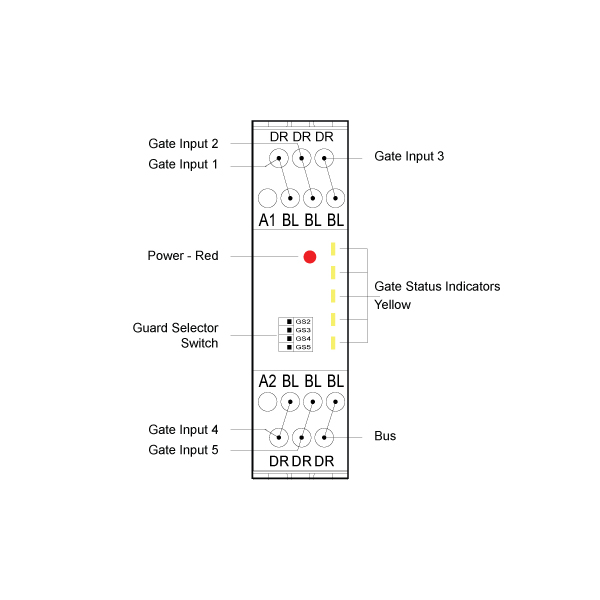

PRODUCT LAYOUT

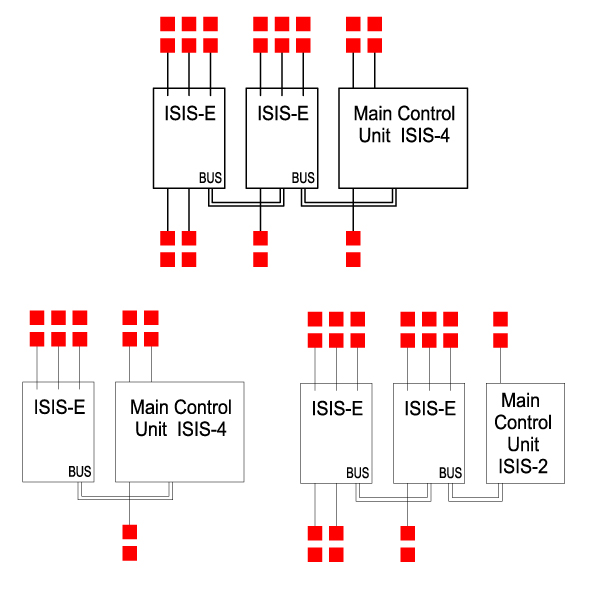

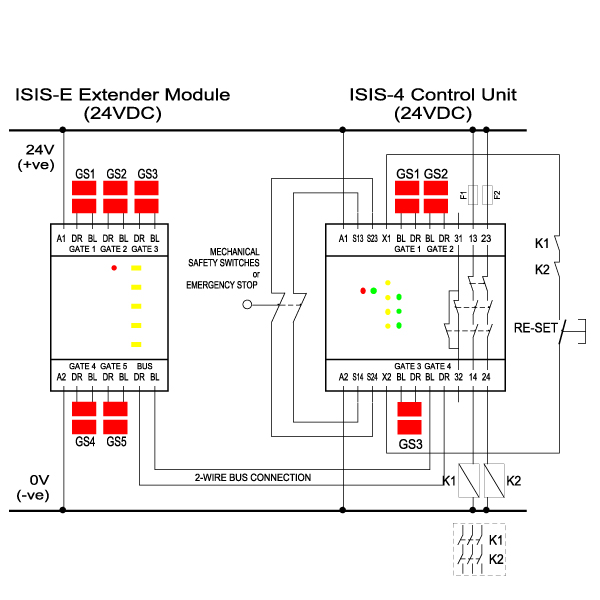

connection drawing 1

Technical Specifications
Supply Voltage Options 24Vac/dc (+/- 15 %)
Power Consumption 3va
Input Up to 5 ISIS Switches
Reset Options AT CONTROL UNIT
Indication Power LED + Guard Status LED's
Dimensions of Control Unit (mm) 22.5 x 84 x 119mm
Weight na
IP Rating Housing IP40, Terminals IP20
Construction Red Polycarbonate housing and terminals
Mounting 35mm DIN Rail
Environmental Specifications
Operating Temperature -10°C to 55°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 3
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 3.37 x 10-8
PFH 5.63 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 Years
DC 99%
SFF 99.40%
Notes

As part of an ISIS System

File Title File Name Download File
370 400 Iss16 ISIS Installation Guide 370-400-Iss16-ISIS-Installation-Guide.pdf PDF (1011 KB)
