MS5SSHT

MS5SSHT MS5SSHT

Approvals

CE Approved

Housing:
    316 Stainless Steel, Resin Encapsulated
Contacts:
    2NO + 1NC (with door open)
Contact Rating:
    300mA 24VDC
Connection Type:
    Pre-Wired Cable, 6 cores (High Temp up to 125°C)
Operating Distance:
    7mm ON / 17mm OFF
Ingress Protection Rating:
    IP67 and IP69K

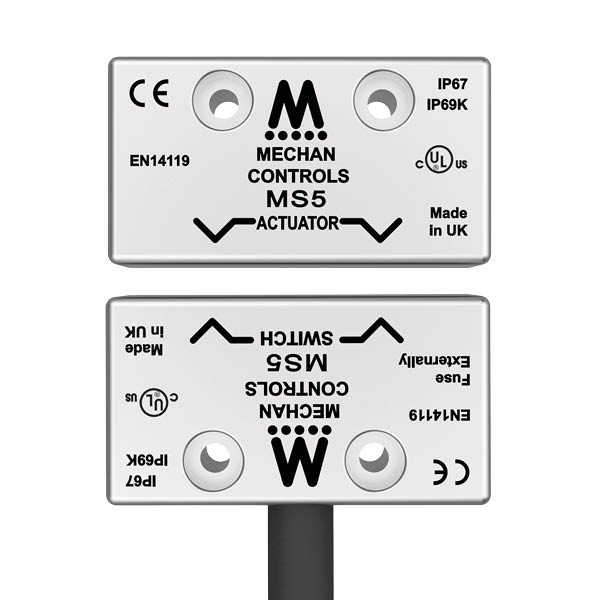

The MAGNASAFE MS5-SS-HT is a compact, non-contact safety switches designed for use with modern safety relays. Encapsulated into 316 grade stainless steel housings, the MS5-SS-HT are equipped with a special cable for use in high temperature environments, eg cooking / food processing. The non-contact operation has a 7 – 17 mm switching distance helping to ensure a long and trouble free operating life.

Product Code Description Part No. Quote options Added to Basket
354.057 MS5 / Stainless Steel / 2NO + 1NC / DC / 05-Metre High Temp (Switch and Actuator) MS5-SS-21-DC-05M-HT
Qty: - +

354.063 MS5 / Stainless Steel / 2NO + 1NC / DC / 10-Metre High Temp (Switch and Actuator) MS5-SS-21-DC-10M-HT
Qty: - +


DIMENSIONS (MM)

Dimensions in millimetres

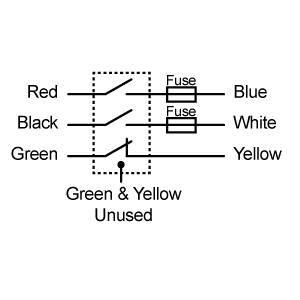

2 Normally Open Contacts + 1 Normally Closed Contact

Technical Specifications
Construction 316 Grade Stainless Steel
Indication 1 x Volt Free Contact
IP Rating IP67 / IP69K
Weight na
Mounting 4 x M4 Security Screws
Safety Output Up to 2 x NO
Safety Output Rating 24Vdc / 300mA
Auxilliary Output Up to 1 x NC
Auxilliary Output Rating 15W / 10VA
Cable / Connector Pre-wired
Cable Length 5 or 10 metre
Coding Magnet & Reed
Dimensions of Switch (mm) 53 x 29 x 13.5
Dimensions of Actuator (mm) 53 x 29 x 13.5
Environmental Specifications
Operating Temperature -25°C to +125°C
Storage Temperature -25°C to +125°C
Safety Related Data
PL in accordance with EN ISO 13849-1 na
SIL CL in accordance with EN IEC 62061 na
PFHd in accordance with EN IEC 62061 4.3 x 10-8 See Note 1
PFH 6.52 x 10-8
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM > 20 Years
DC 99%
SFF 98%
Notes

Based on dual channel wiring according to CAT 4. Diagnostic coverage provided by downstream control logic. DC - medium, MTTFd = 100 Years
