ESM | F-Series

ESM | F-Series ESM | F-Series ESM | F-Series ESM | F-Series

Approvals

CE Approved

•   Emergency stop button input
•   Dual channel volt free contact
•   LED and Volt Free Contact Indication
•   35mm DIN Rail Mounting
•   17.5 mm wide

The ESM module gives the option to add emergency stop button control to the F-Series Safety System and maintain CAT4 SIL3 PLe performance. The ESM connects via a built in 6-way strap to the adjacent F Series module. The ESM accepts 2 closed contact inputs from either an emergency stop button or mechanical safety switch (locking or non-locking) Indicator LED’s on the ESM provide diagnostic information along with volt free contact status indicator.

Product Code Description Part No. Quote options Added to Basket
330.006 ESM F-Series Emergency Stop Module ESM
Qty: - +

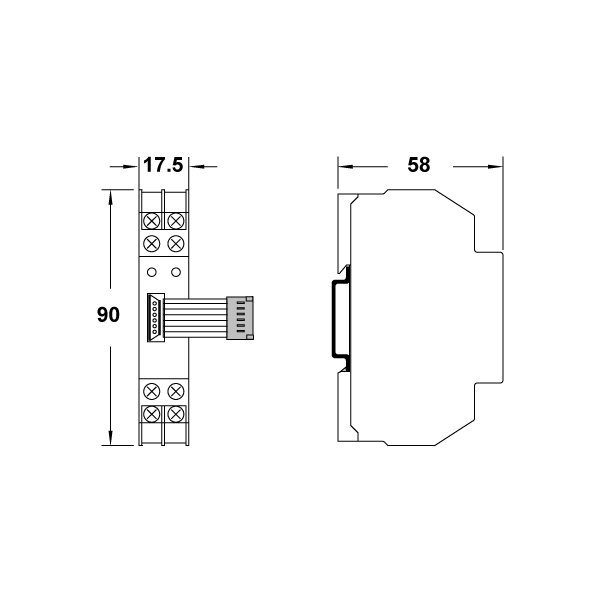

Dimensions (mm)

Dimensions in millimetres

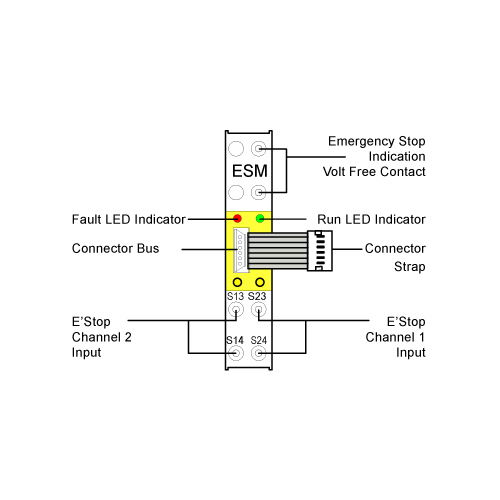

Emergency Stop Monitor Layout

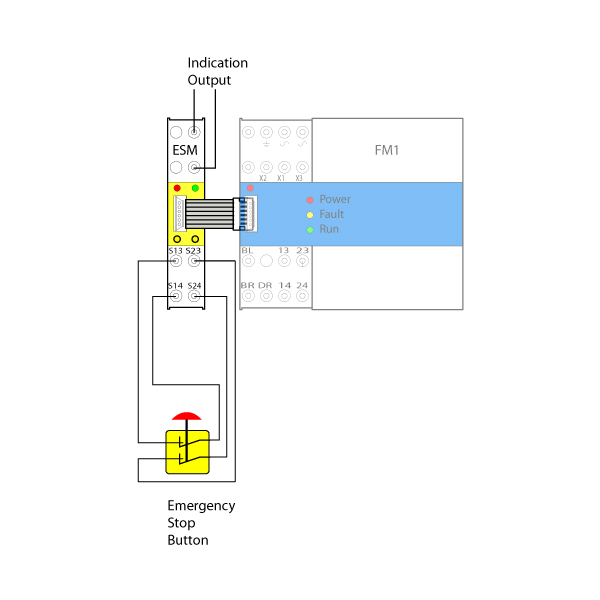

Connection Drawing 1

Connection Drawing 2

Technical Specifications
Construction Grey PC-GF
Indication LED's for Fault, Run, Input 1 and 2
IP Rating Housing IP30, Terminals IP20
Weight na
Mounting 35mm DIN Rail
Supply Voltage Options From FM1
Power Consumption na
Cable / Connector Screw Terminals
Input 2 Normally Closed
Dimensions of Control Unit (mm) 17.5 x 90 x 58mm
Environmental Specifications
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Safety Related Data
PL in accordance with EN ISO 13849-1 PL-e, CAT 4
SIL CL in accordance with EN IEC 62061 SIL 3
PFHd in accordance with EN IEC 62061 6.0 x 10 -9
PFH 6.52 x 10 -9
B10d 2,000,000
MTTFd High > 100 Years ( Based on usage rate of 360 Days
TM 20 years
DC 99%
SFF 99.50%
Notes

As part of an F Series system

File Title File Name Download File
327 400 ID Iss7 Mechan F Series Install Guide 327-400-ID-Iss7-Mechan-F-Series-Install-Guide.pdf PDF (1009 KB)
