70mm Beam Resolution

70mm Beam Resolution 70mm Beam Resolution

Approvals

CE Approved

Housing:
    Metal, Painted Yellow
Nominal Curtain Length:
    600mm – 1800mm
Operating Range:
    0.5m – 15m
Response Time:
    20ms up to 1800mm Curtain
Output Type:
    Type 4, OSSD PNP
Ingress Protection Rating:
    IP65

*Please note that cable accessories are sold separately. Cable part numbers can be located at the bottom of the quote options table.*

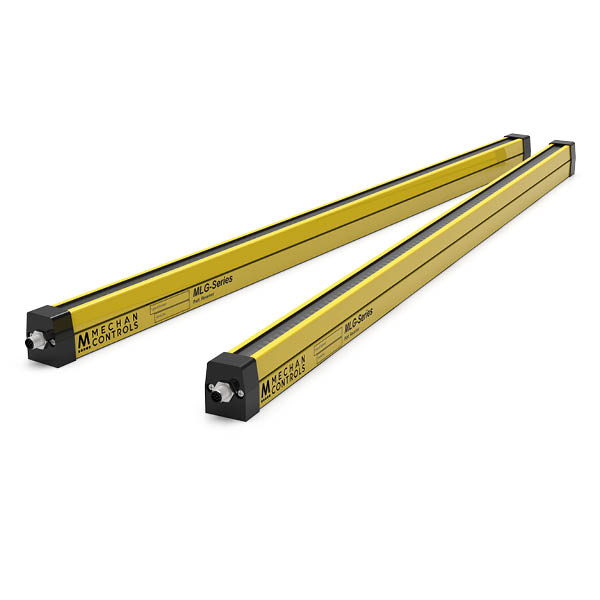

The MLG-Series are robust, type 4 light curtains designed for ON/OFF detection. Each unit comprises of a transmitter and receiver that are connected via 70mm resolution, infrared beams. This provides a reliable and cost-effective access protection for hazardous points and hazardous areas.

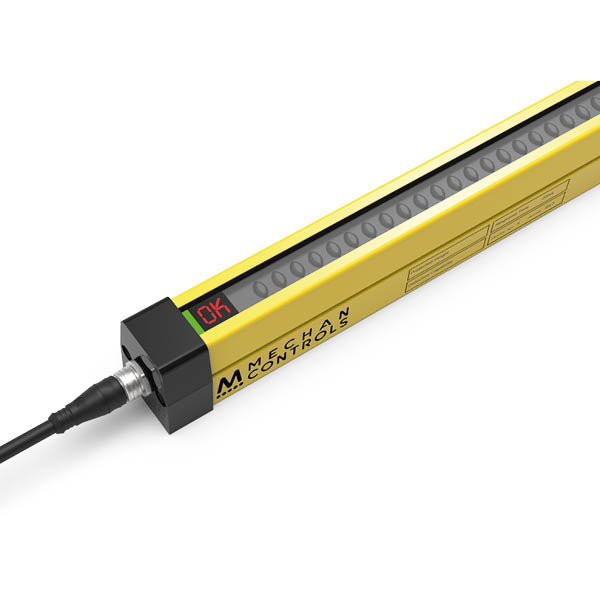

The body consists of a robust, IP65 metal enclosure designed for use in harsh environments. The infrared beams are tolerant to dust, ideal for use in the heavy industry. The transmitter includes a unique dot matrix display that provides the user with various diagnostic data such as beam interruption and output status.

Product Code Description Part No. Quote options Added to Basket
380.045 MLG / Type 4 / 70mm Resolution / 200mm Height / (Emitter and Receiver) MLG/70/200
Qty: - +

380.046 MLG / Type 4 / 70mm Resolution / 200mm Height / (Emitter Only) MLG/E/70/200
Qty: - +

380.047 MLG / Type 4 / 70mm Resolution / 200mm Height / (Receiver Only) MLG/R/70/200
Qty: - +

380.048 MLG / Type 4 / 70mm Resolution / 400mm Height / (Emitter and Receiver) MLG/70/400
Qty: - +

380.049 MLG / Type 4 / 70mm Resolution / 400mm Height / (Emitter Only) MLG/E/70/400
Qty: - +

380.050 MLG / Type 4 / 70mm Resolution / 400mm Height / (Receiver Only) MLG/R/70/400
Qty: - +

380.051 MLG / Type 4 / 70mm Resolution / 600mm Height / (Emitter and Receiver) MLG/70/600
Qty: - +

380.052 MLG / Type 4 / 70mm Resolution / 600mm Height / (Emitter Only) MLG/E/70/600
Qty: - +

380.053 MLG / Type 4 / 70mm Resolution / 600mm Height / (Receiver Only) MLG/R/70/600
Qty: - +

380.054 MLG / Type 4 / 70mm Resolution / 800mm Height / (Emitter and Receiver) MLG/70/800
Qty: - +

380.055 MLG / Type 4 / 70mm Resolution / 800mm Height / (Emitter Only) MLG/E/70/800
Qty: - +

380.056 MLG / Type 4 / 70mm Resolution / 800mm Height / (Receiver Only) MLG/R/70/800
Qty: - +

380.057 MLG / Type 4 / 70mm Resolution / 1000mm Height / (Emitter and Receiver) MLG/70/1000
Qty: - +

380.058 MLG / Type 4 / 70mm Resolution / 1000mm Height / (Emitter Only) MLG/E/70/1000
Qty: - +

380.059 MLG / Type 4 / 70mm Resolution / 1000mm Height / (Receiver Only) MLG/R/70/1000
Qty: - +

380.060 MLG / Type 4 / 70mm Resolution / 1200mm Height / (Emitter and Receiver) MLG/70/1200
Qty: - +

380.061 MLG / Type 4 / 70mm Resolution / 1200mm Height / (Emitter Only) MLG/E/70/1200
Qty: - +

380.062 MLG / Type 4 / 70mm Resolution / 1200mm Height / (Receiver Only) MLG/R/70/1200
Qty: - +

380.063 MLG / Type 4 / 70mm Resolution / 1400mm Height / (Emitter and Receiver) MLG/70/1400
Qty: - +

380.064 MLG / Type 4 / 70mm Resolution / 1400mm Height / (Emitter Only) MLG/E/70/1400
Qty: - +

380.065 MLG / Type 4 / 70mm Resolution / 1400mm Height / (Receiver Only) MLG/R/70/1400
Qty: - +

380.066 MLG / Type 4 / 70mm Resolution / 1600mm Height / (Emitter and Receiver) MLG/70/1600
Qty: - +

380.067 MLG / Type 4 / 70mm Resolution / 1600mm Height / (Emitter Only) MLG/E/70/1600
Qty: - +

380.068 MLG / Type 4 / 70mm Resolution / 1600mm Height / (Receiver Only) MLG/R/70/1600
Qty: - +

380.069 MLG / Type 4 / 70mm Resolution / 1800mm Height / (Emitter and Receiver) MLG/70/1800
Qty: - +

380.070 MLG / Type 4 / 70mm Resolution / 1800mm Height / (Emitter Only) MLG/E/70/1800
Qty: - +

380.071 MLG / Type 4 / 70mm Resolution / 1800mm Height / (Receiver Only) MLG/R/70/1800
Qty: - +

382.000 Emitter Cable QD 5 Way 5M 5POLE-QD-5M-E
Qty: - +

382.001 Emitter Cable QD 5 Way 10M 5POLE-QD-10M-E
Qty: - +

382.002 Emitter Cable QD 5 Way 20M 5POLE-QD-20M-E
Qty: - +

382.003 Receiver Cable QD 8 Way 5M 8POLE-QD-5M-R
Qty: - +

382.004 Receiver Cable QD 8 Way 10M 8POLE-QD-10M-R
Qty: - +

382.005 Receiver Cable QD 8 Way 20M 8POLE-QD-20M-R
Qty: - +


CONNECTION DRAWING 1

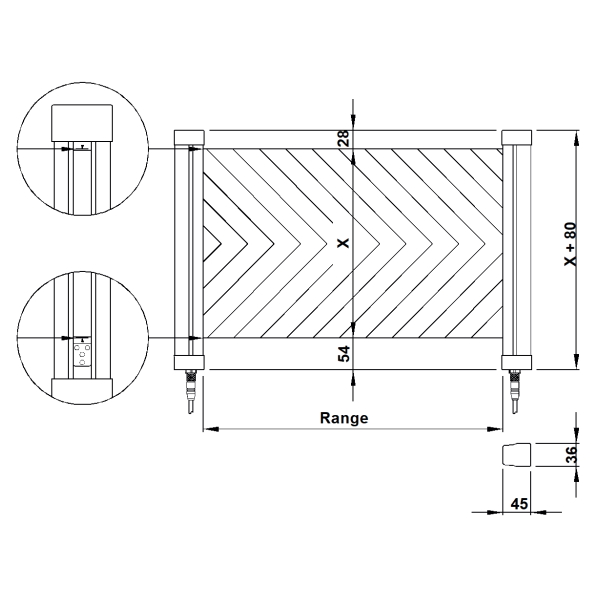

Detection Zone

Technical Specifications
Operating Range 0.5-15m
Indication Dot Matrix Diagnostic Display
IP Rating IP65
Supply Voltage Options 24V d.c. ±20%, 5% maximum residual ripple
Power Consumption < 12VA
Safety Output OSSD / 100ms Pulse Width
Safety Output Rating 200mA
Nominal Curtain Length 200mm - 1800mm
Detection Resolutions 70mm
Response Time 20ms up to 1800mm Curtain
Cable / Connector M12
Environmental Specifications
Operating Temperature 0º...50º C
Storage Temperature -20º...70º C
Safety Related Data
PL in accordance with EN ISO 13849-1
SIL CL in accordance with EN IEC 62061
PFHd in accordance with EN IEC 62061
PFH
B10d
MTTFd
TM
DC
SFF
File Title File Name Download File
380 800 MLG Series Light Curtain Installation Guide Iss1 380-800-MLG-Series-Light-Curtain-Installation-Guide-Iss1.pdf PDF (3.7 MB)
