Housing:
316 Stainless Steel
Contacts:
2NC + 1NO (with E|Stop pressed)
Contact Rating:
2Amp - 24VDC
Break Contact Force Min:
20N
Indication:
None
Ingress Protection Rating:
IP65

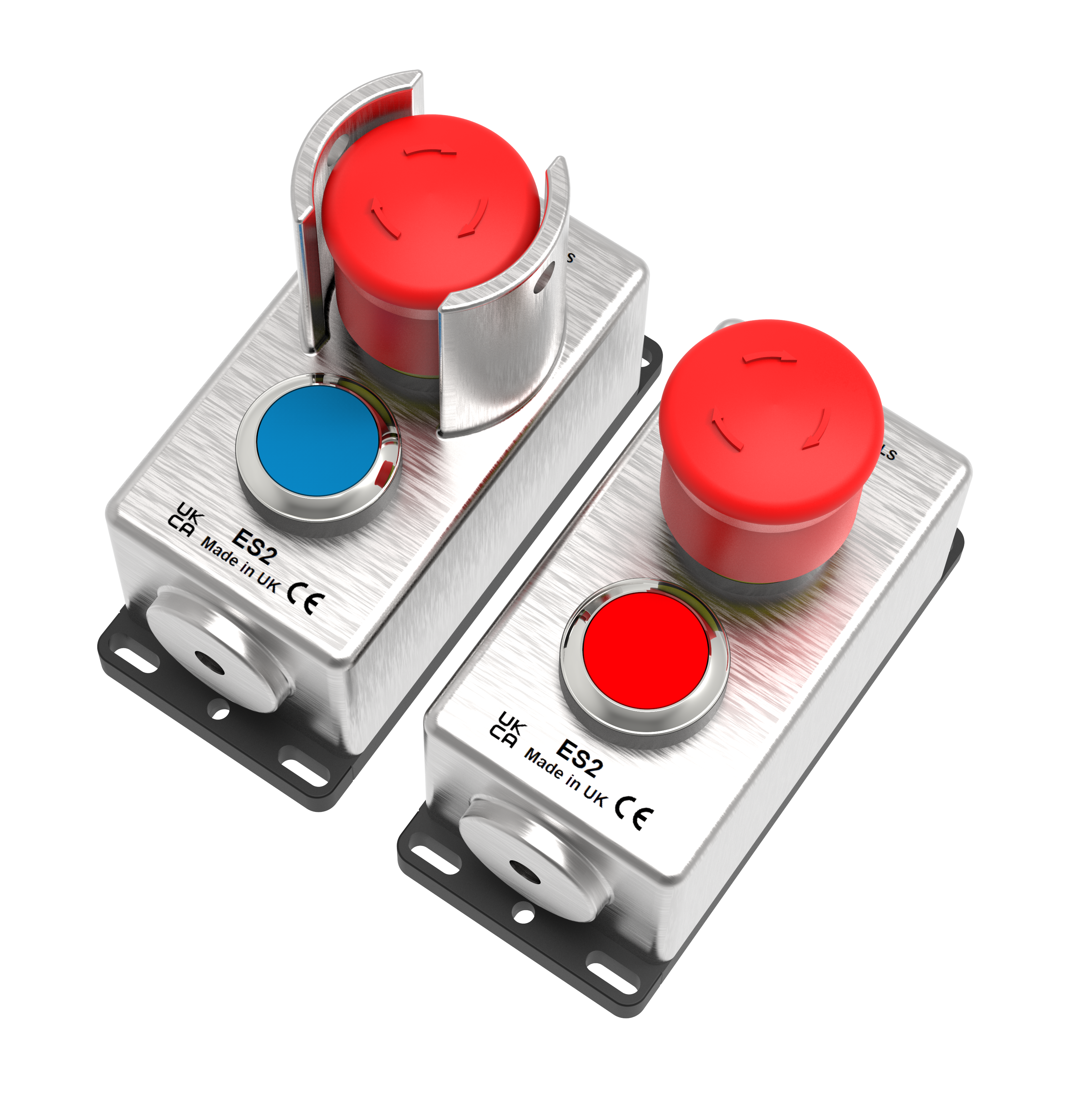

The Emergency Stop units are designed to fit in manufacturing areas. The ES units can come with or without a padlockable shroud. The ES1 & ES2 can be operated by pressing the emergency stop button (Red), it can then be reset by twisting the emergency stop button.
The ES1 & ES2 uses force guided contacts, which allows it to be safely guarded and adhere to the machinery directive.

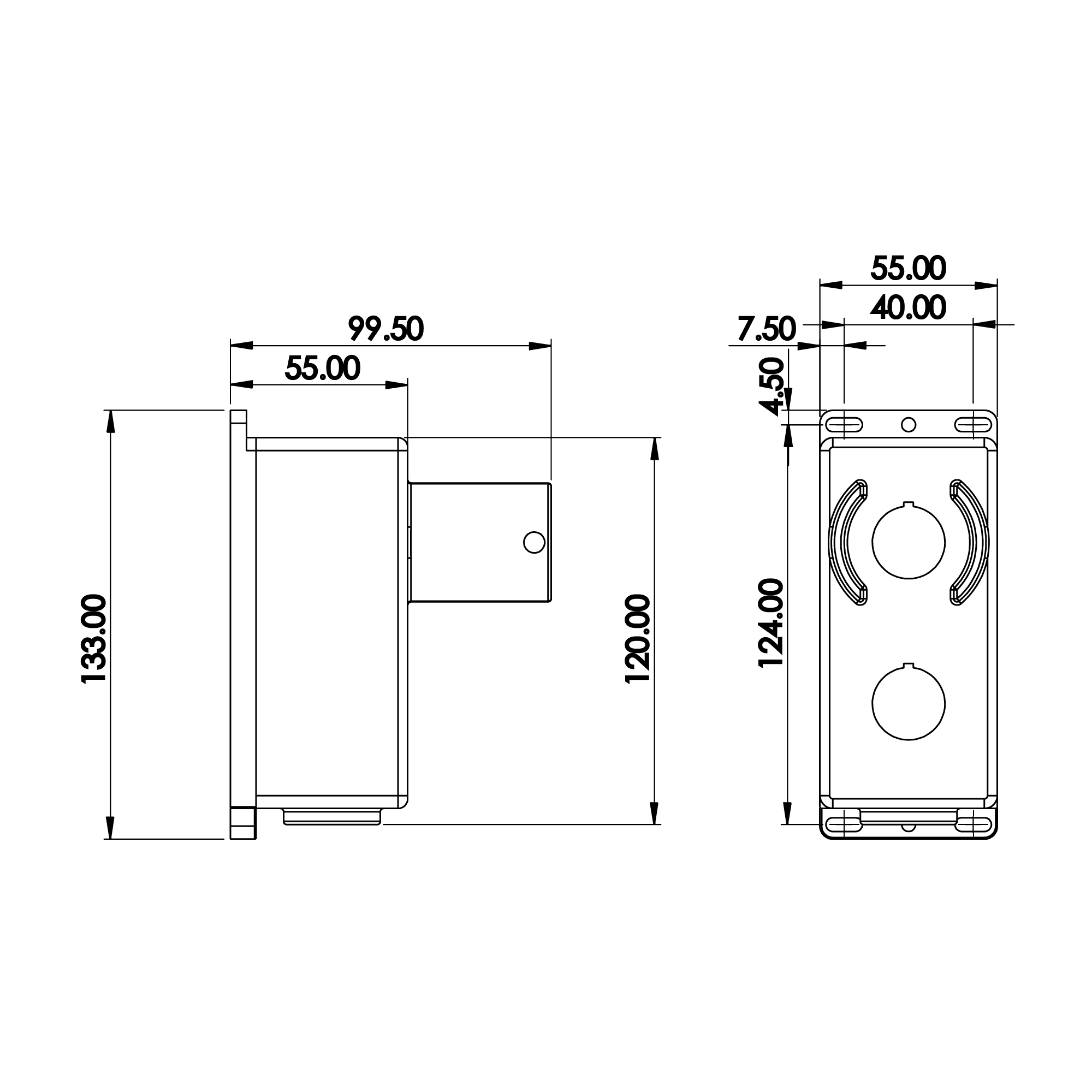

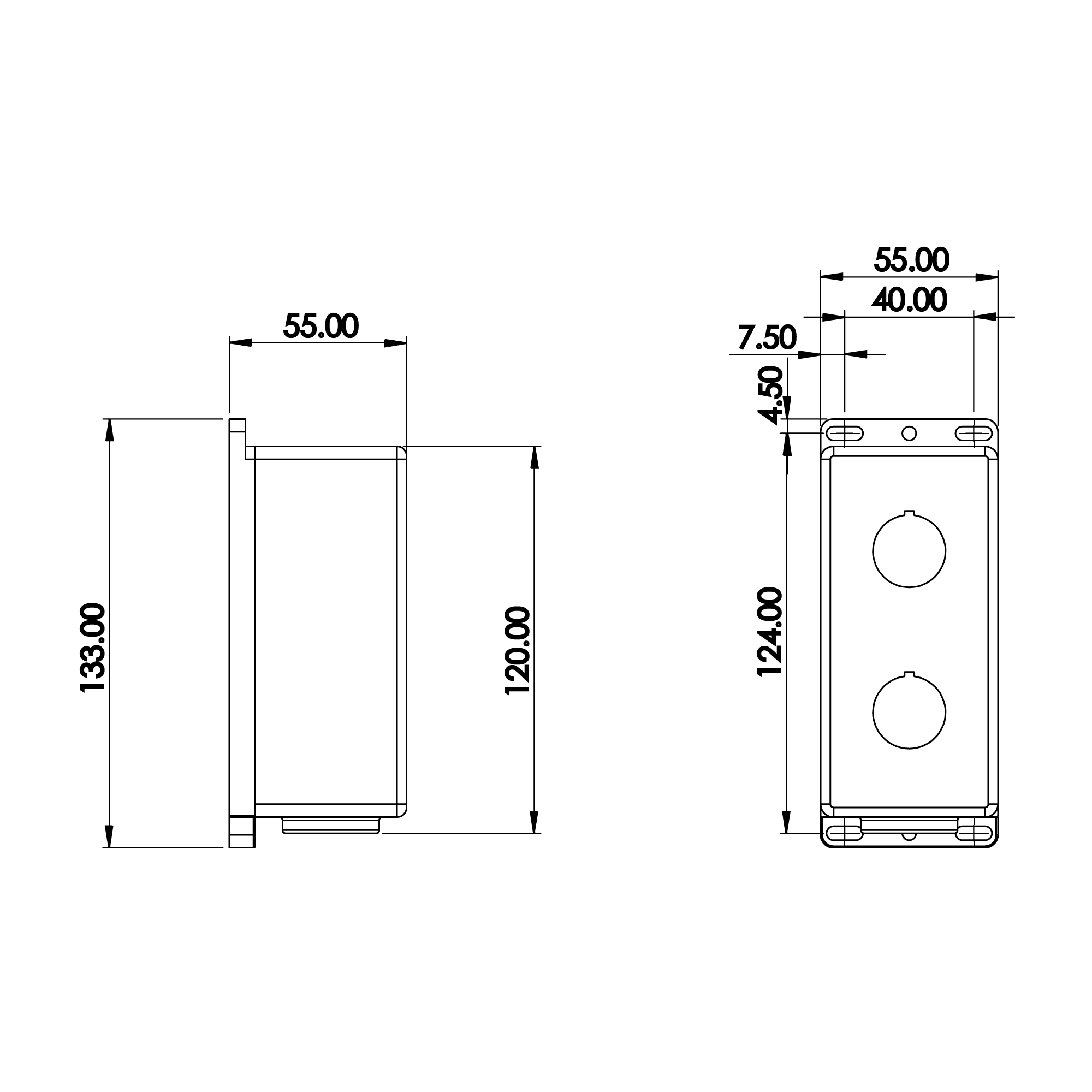

| Technical Specifications | |
|---|---|
| Rated Insulation Voltage (Ui) | 600V |
| Withstand Voltage | 6KV |
| Operational Rating | 3A at 240V, AC-15, A600 / 6A at 120V, AC-15, A600 / 0.1A at 600V, DC-13, Q600 / 0.27A at 250V, DC-13, Q600 / 0.55A at 125V, DC-13, Q600 / 1.2A at 600V, AC-15 A600 |
| Construction | 316 Stainless Steel |
| Indication | None |
| IP Rating | IP65 |
| Mounting | M4 Torx security screws (Tightening Torque 1.0NM) |
| Safety Output Rating | 2NC |
| Auxilliary Output | 1NO |
| Coding | Mechanical |
| Dimensions of Switch (mm) | 133 x 45 x 50 |
| Environmental Specifications | |
| Operating Temperature | -40°C to +70°C |
| Safety Related Data | |
| PL in accordance with EN ISO 13849-1 | PL-e |
| SIL CL in accordance with EN IEC 62061 | SIL3 |
| PFHd in accordance with EN IEC 62061 | 4.3 x 10-8 |
| PFH | 6.52 x 10-8 |
| B10d | 1,500,000 |
| MTTFd | High > 214 Years (Based on usage rate of 360 Days/ |
| TM | > 20 Years |
| DC | 99% |
| SFF | 98% |
| File Title | File Name | Download File |
|---|---|---|
| XXX XXX Iss1 MECHAN Emergency Stop units Installation Guide v2 | XXX-XXX-Iss1-MECHAN-Emergency-Stop-units-Installation-Guide-v2.pdf | PDF (1.2 MB) |
